AKiTiO Thunder2 PCIe Box

AKiTiO Thunder2 PCIe Expansion Box

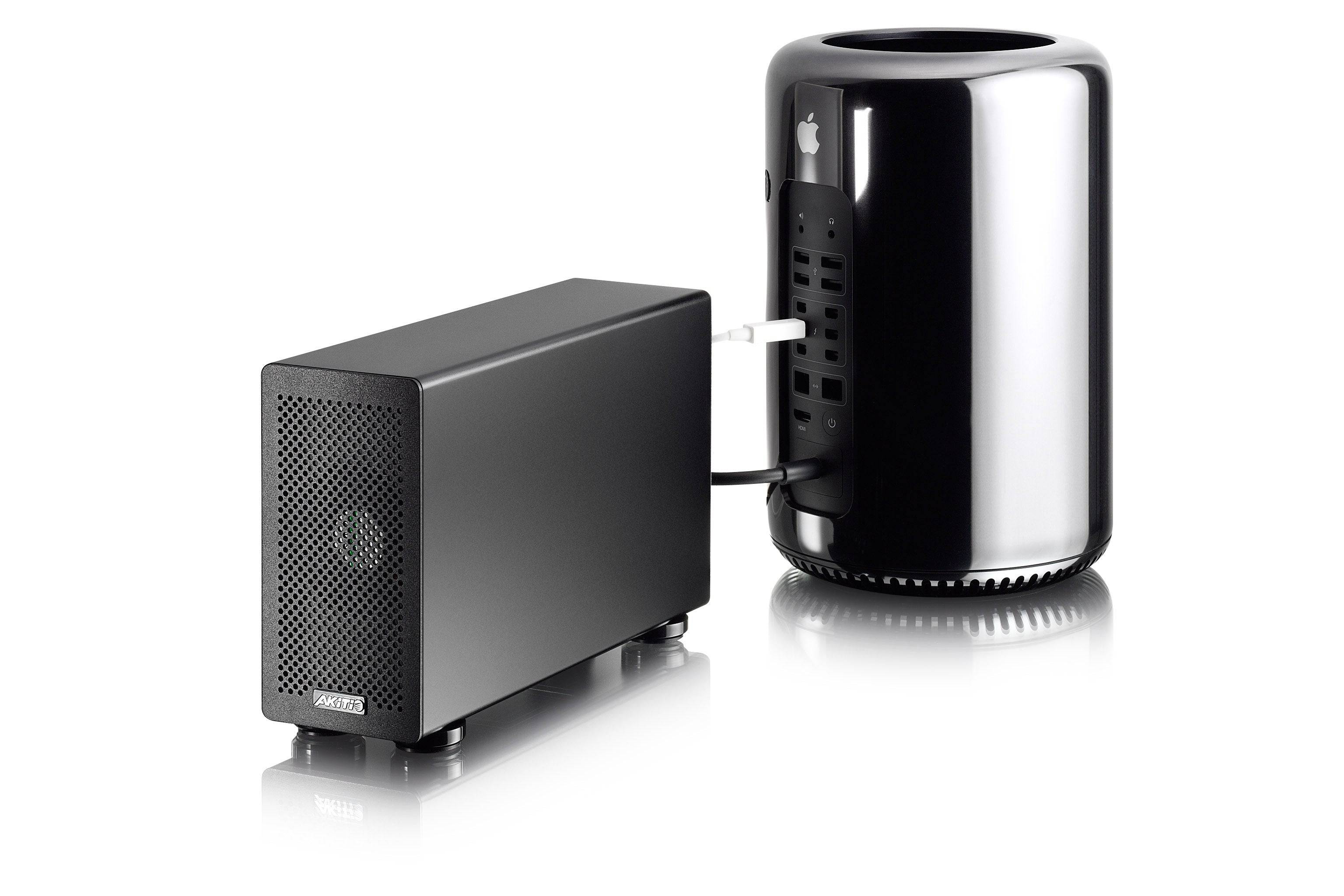

The portable Thunderbolt™ 2 PCIe expansion box provides an additional PCIe slot for systems that do not support or have enough available space for expansion cards. The external Thunderbolt 2 connection allows you to daisy-chain up to 5 additional Thunderbolt devices, making this the ideal plug and play companion especially when you have to take your system with you. Replacing the card is a simple matter of removing three hand tightening screws, so no tools are required.

Features

• Two Thunderbolt™ 2 ports for lightning fast speeds of up to 20Gb/s
• 1 PCIe (x16) slot supporting half-length, full-height, double-width cards
• 4 lane PCI Express 2.0 compliant interface at 5.0Gbps
• Removable back panel for double-width cards
• Daisy-chain up to 6 Thunderbolt™ devices
• Durable and rugged aluminum casing
• No tools required for installation

4K Workflow with Thunderbolt 2 Technology

Thunderbolt 2 technology incorporates DisplayPort 1.2 support, which allows for video streaming to a single 4K video monitor. If you are a video editor, you can now use a single port to connect your external Thunderbolt devices and a 4K display.

4 Lane PCI Express 2.0 Compliant Interface

The PCIe (x16) slot accepts half-length, full-height, double-width cards and provides a maximum of 25W. Replacing the card can be done without tools, simply by removing two hand tightening screws for the chassis and one for the card.

Provides Two Thunderbolt 2 Ports for Daisy-Chain

The second Thunderbolt 2 port lets you daisy-chain up to five Thunderbolt devices together. For example, you can attach additional external drives and even a display, all connected to the computer through a single cable.
