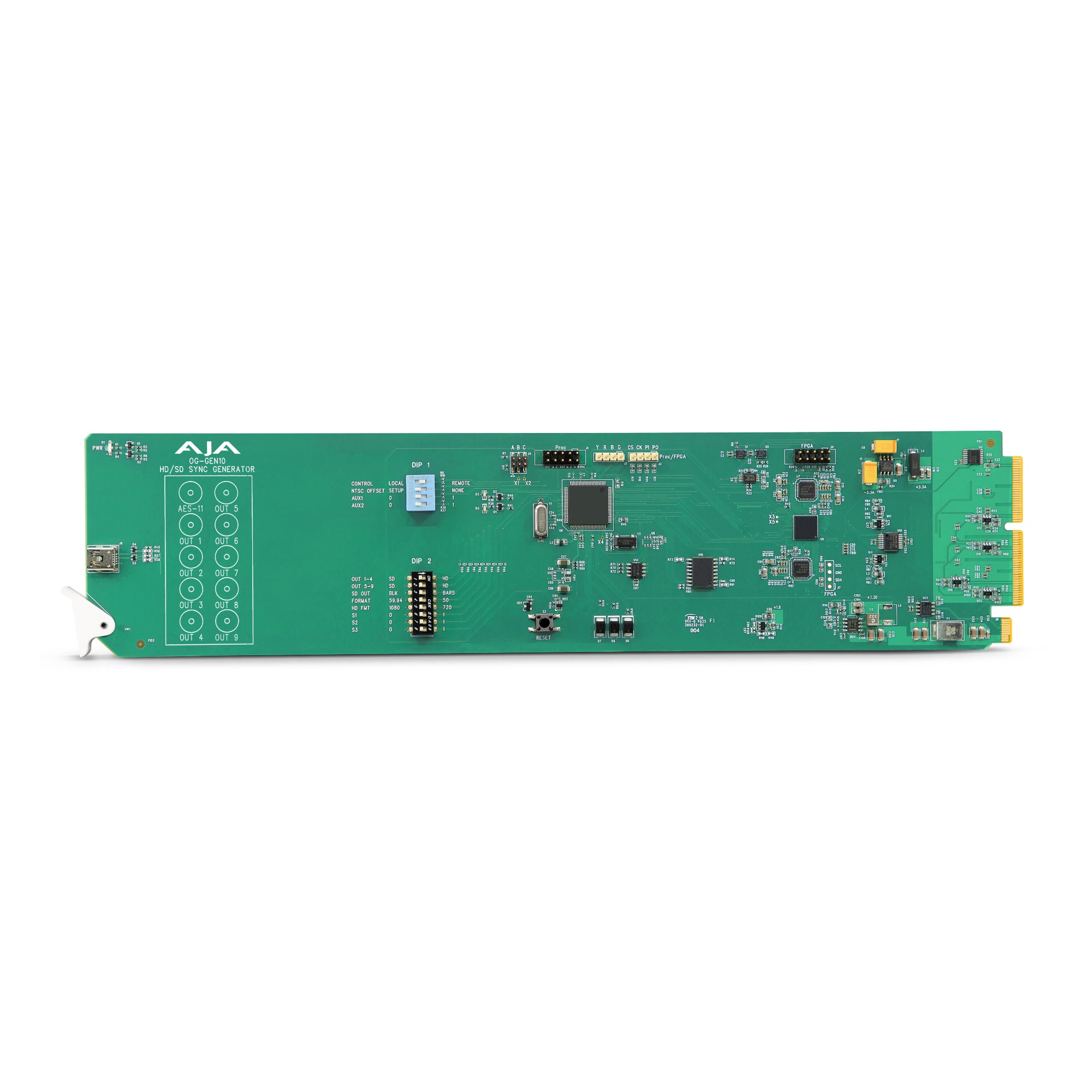

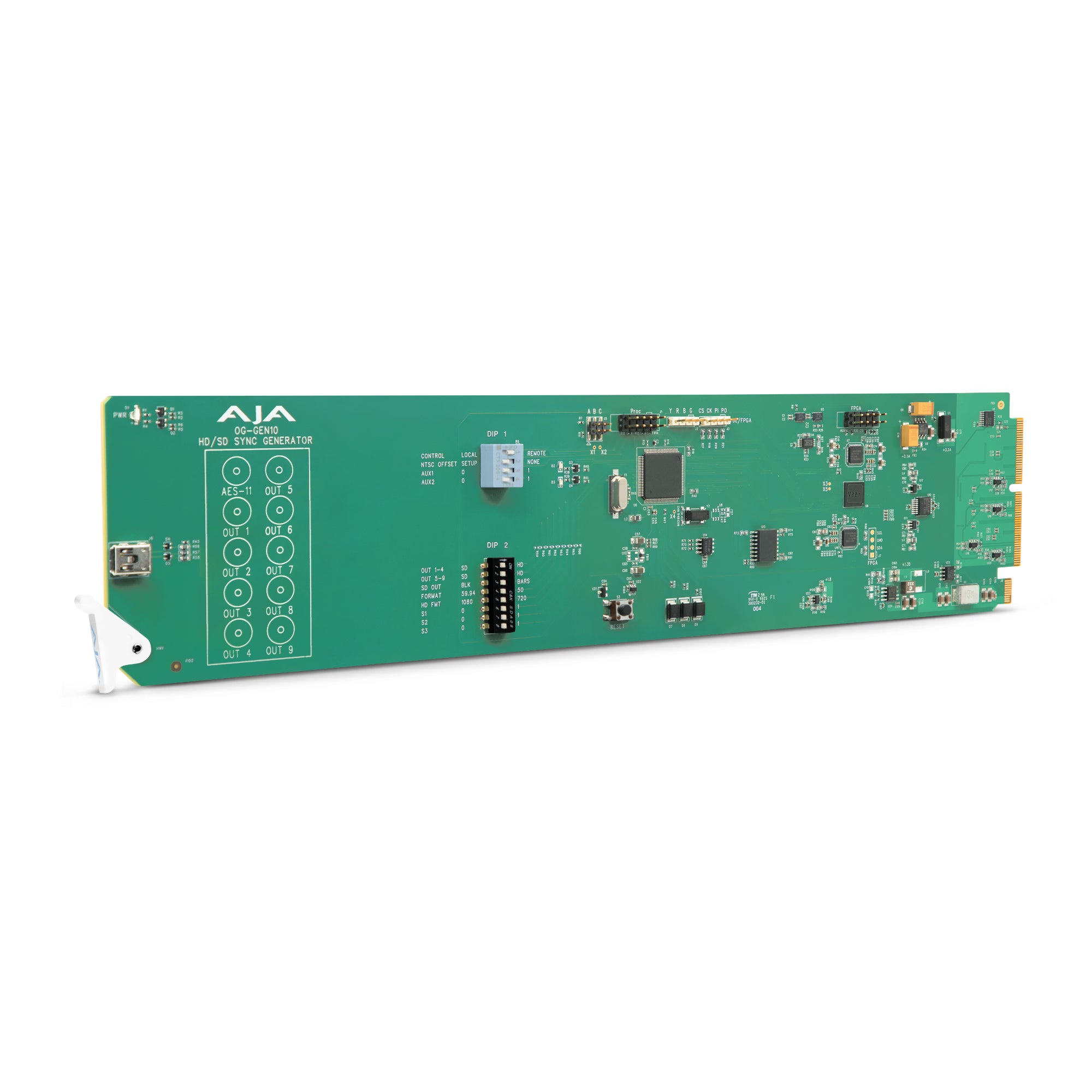

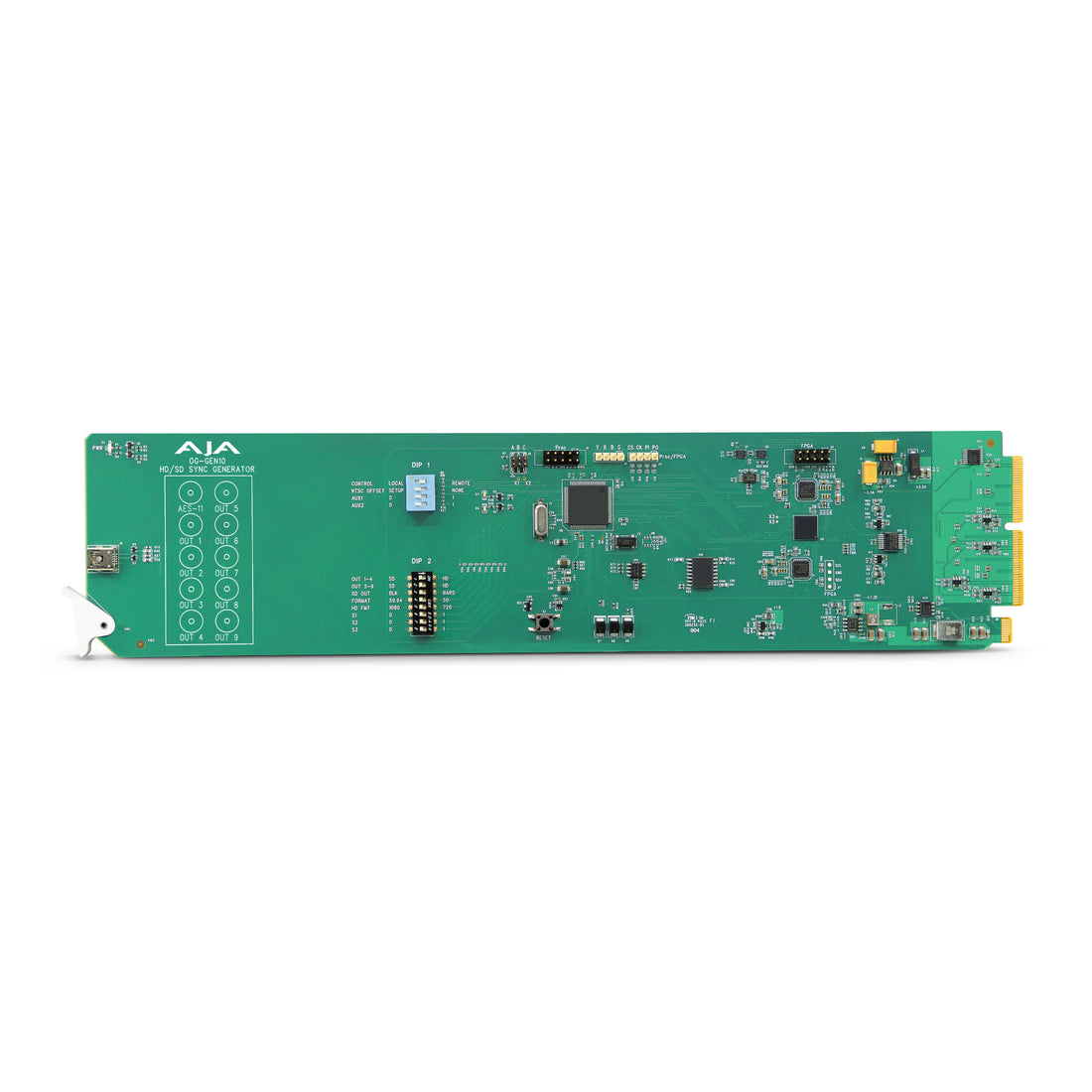

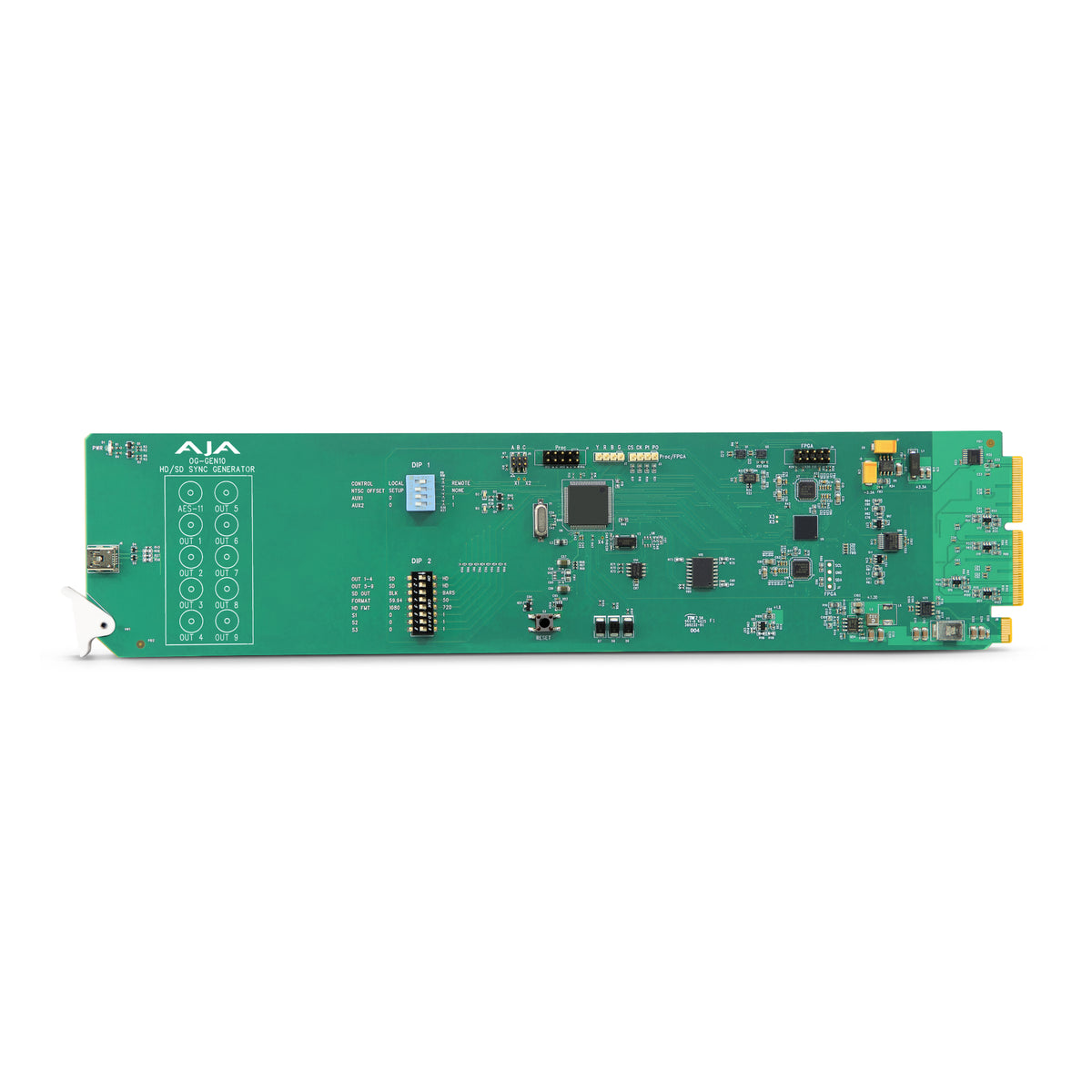

AJA OG-GEN10 OpenGear HD/SD And AES-11 Sync Generator

AJA OG-GEN10 OpenGear HD/SD And AES-11 Sync Generator is an openGear sync card built to deliver precise system reference across multi-format broadcast workflows. Operating as a single 1x OGX Card weighing just 227 g (8 oz) with a low power footprint of 6.75 W drawn via PCIe, it supplies HD Tri-Level sync, SD Color Black, 75% Color Bars, and AES-11 audio tones directly into standard openGear frame systems.

Highlights

• HD & SD Sync Generation covering Tri-Level HD, SD Color Black, and 75% Color Bars
• AES-11 Audio Reference outputting 48 kHz audio tone, silent mode, or 1 kHz Tone (-20 or -18 dBFS)
• OpenGear Frame Compatibility for OG-X-F, OG-3-FR, and DFR-8321 frames
• Low Power Consumption running efficiently at 6.75 W via PCIe backplane power
• Dedicated BNC Connectivity providing multiple sync and audio signal output distribution

Quick Specs & Uses

• Compatibility: openGear Frame OG-X-F / Frame OG-3-FR / Frame DFR-8321
• Sync System: HD: Tri-Level; SD: Color Black, 75% Color Bars
• Tone: AES-11, 48 kHz (Silent, 1 kHz Tone at -20 or -18 dBFS)
• Video Formats (1080p): 23.98, 24, 25, 29.97, 30
• Video Formats (1080PsF): 23.98, 24, 25, 29.97, 30
• Video Formats (1080i): 50, 59.94, 60
• Video Formats (720p): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• Video Formats (SD): 625i, 525i
• Audio I/O: 9x BNC Output, 1x BNC Output
• Power Source: PCIe
• Power Consumption: 6.75 W
• Mounting: 1x OGX Card
• Weight: 8 oz / 227 g
• Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 90% Humidity
• Storage Conditions: -40 to 140°F / -40 to 60°C

Why It Helps

This generator simplifies facility timing by generating clean video reference and AES-11 audio calibration signals directly inside your existing openGear chassis. It eliminates the need for bulky standalone genlock hardware while offering stable timing signals across standard HD and SD frame rates.

System Characteristics

• Multi-Format Reference Support handles progressive, interlaced, and PsF video standards down to 625i/525i SD setups
• Integrated AES-11 Audio Generator provides a consistent 48 kHz reference tone for audio system setup and channel identification
• Modular openGear Form Factor plugs directly into industry-standard openGear frames for clean rack integration
• Low Power Draw reduces heat build-up and overall power load inside high-density equipment frames

What’s In The Box

1 x AJA OG-GEN10 openGear HD/SD Video and AES-11 Sync Generator

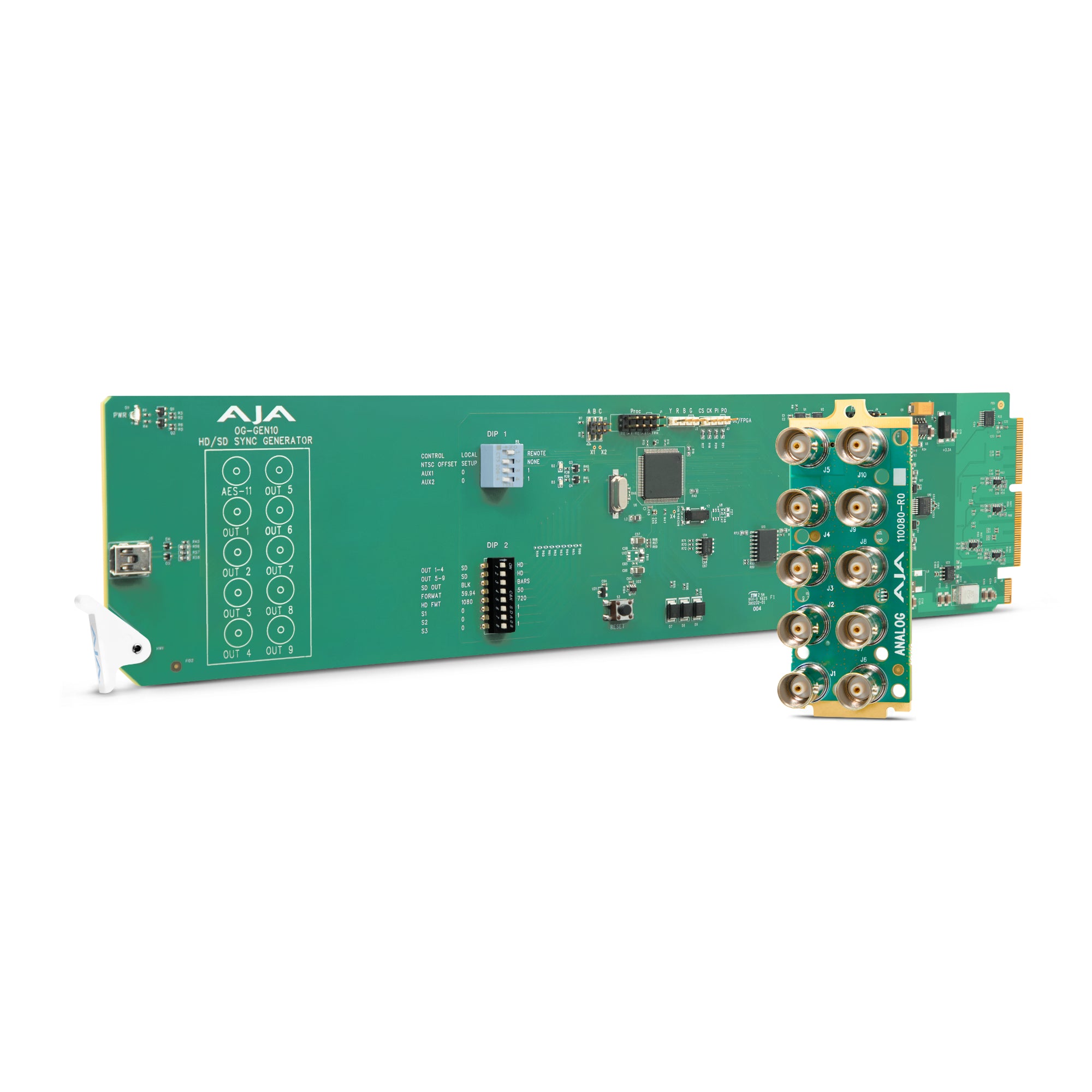

1 x Rear BNC Card (2-Slot)
