AJA V2ANALOG HD/SD-SDI To Analoq Mini Converter

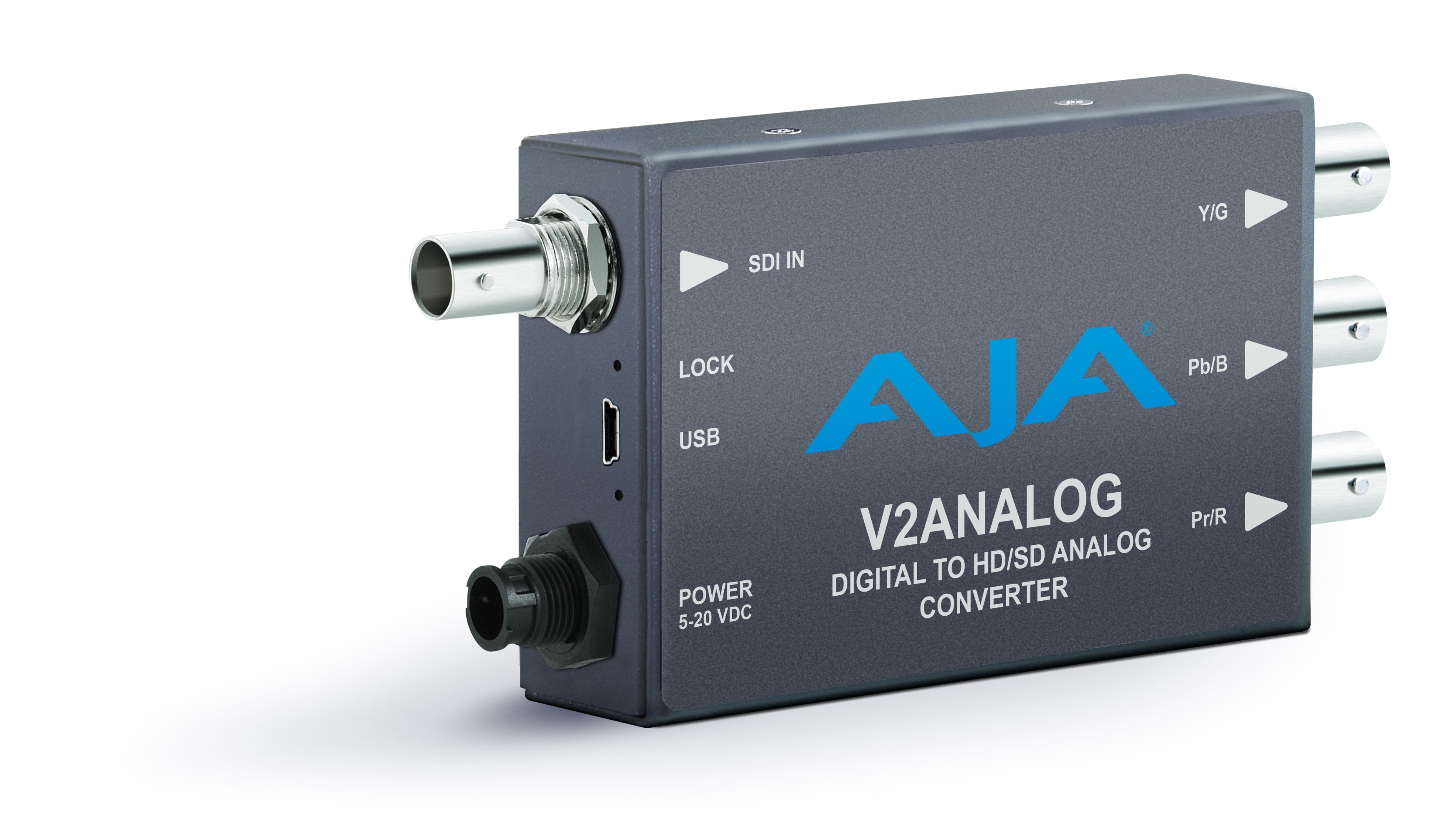

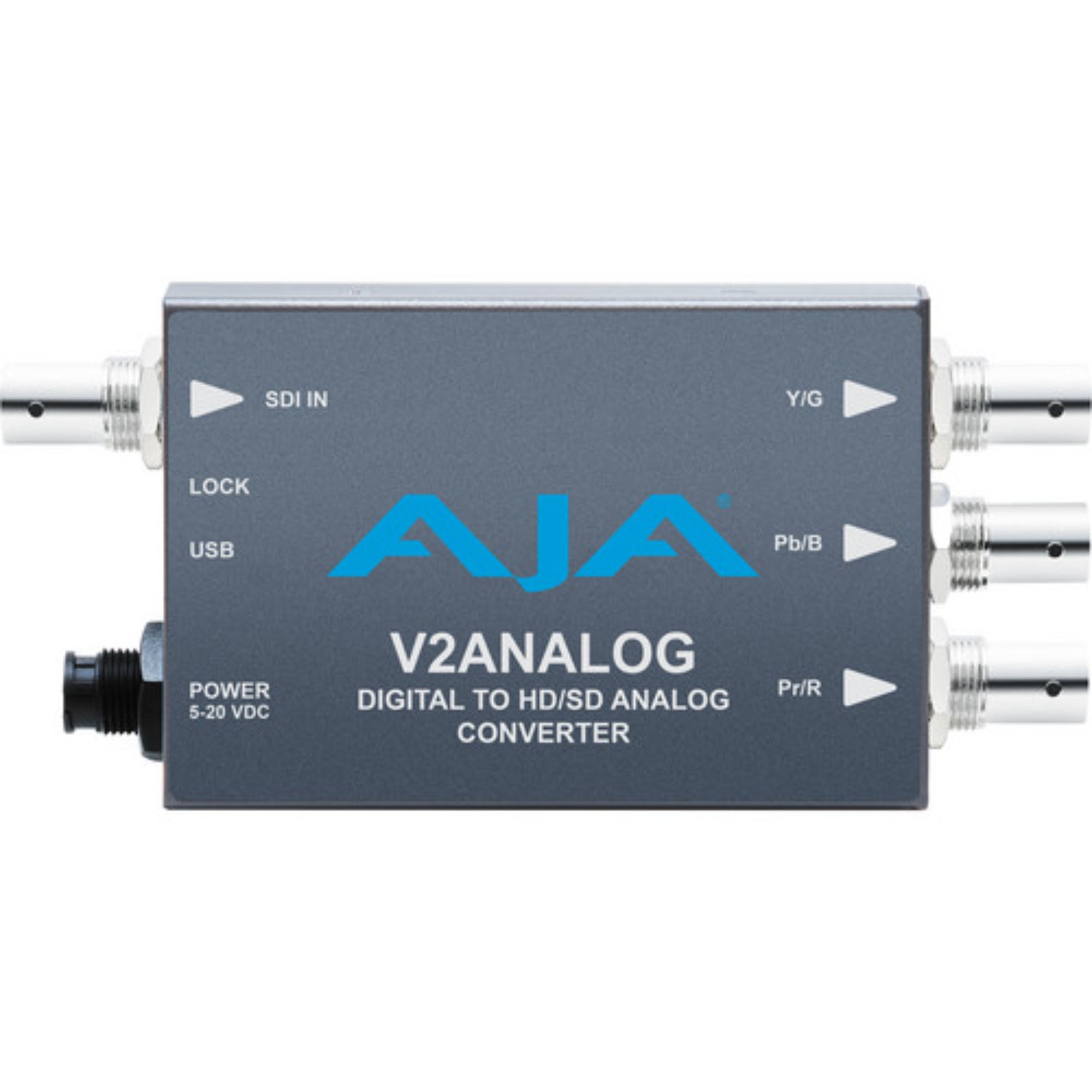

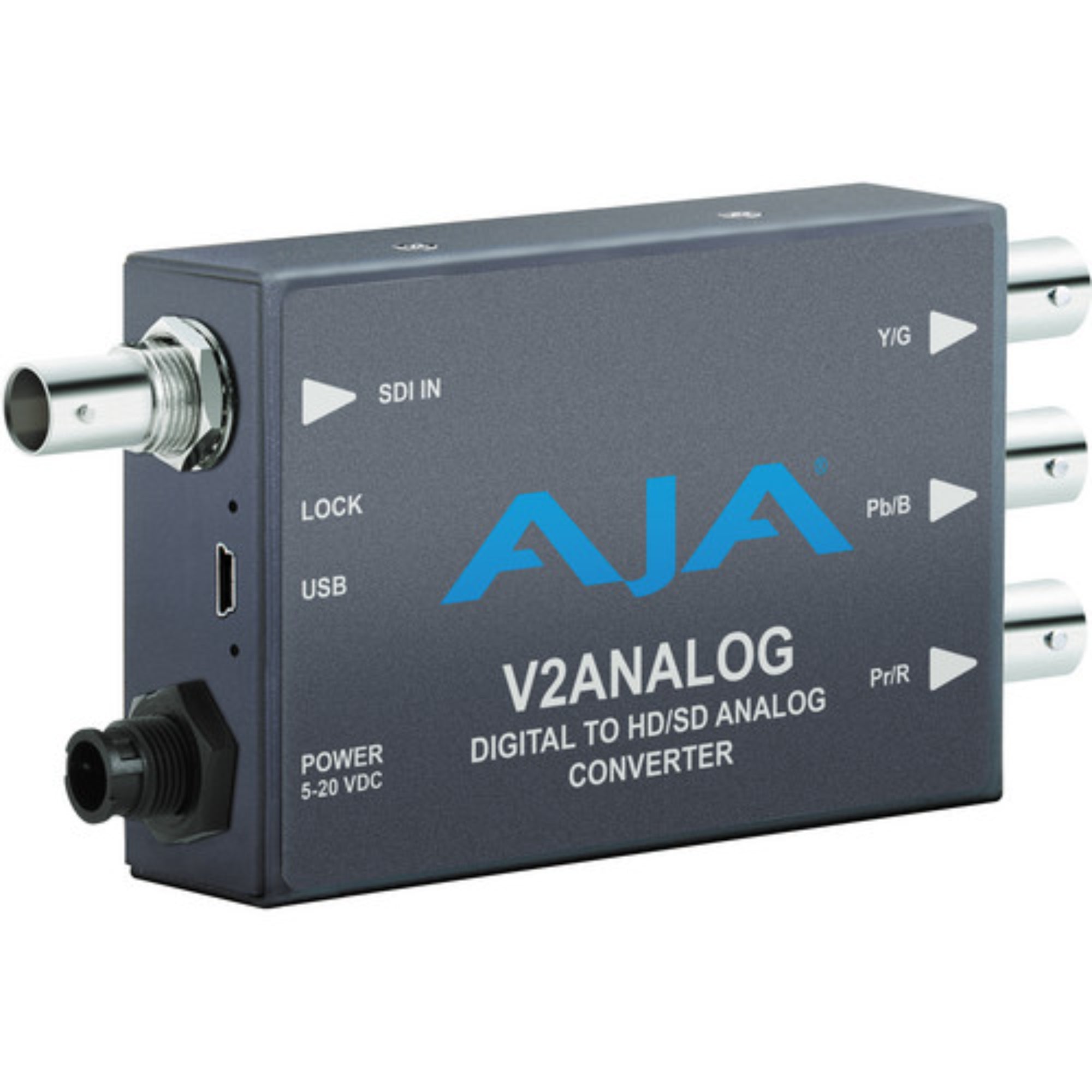

AJA V2ANALOG HD/SD-SDI To Analog Mini Converter is a compact digital-to-analog converter designed to feed analog monitoring, legacy decks, or video scopes straight from a digital SDI line. Working via a single 1 x BNC HD/SD-SDI input (SMPTE-259/292/296M), it outputs HD component YPbPr, RGB, SD component, composite, or S-Video (YC) while drawing a low 3 watts across a flexible 5 to 20 VDC power range within a 5.1 x 2.4 x 1.0" footprint.

Highlights

• HD/SD-SDI Digital Input supporting SMPTE-259/292/296M signal standards
• Multi-Format Analog Output including HD YPbPr/RGB, SD component (Betacam, EBU-N10), composite, and YC (S-Video)
• Direct DIP Switch Configuration for quick hardware control over format, composite/component selection, and pedestal settings
• USB 2.0 Host Interface for Mac or PC configuration management
• Low Power Consumption running efficiently on 3 W with 5 to 20 VDC power support

Quick Specs & Uses

• Input: 1 x BNC, HD/SD-SDI (SMPTE-259/292/296M)
• Output: BNC (HD component YPbPr, RGB [SMPTE-274]; SD component [Betacam, EBU-N10], composite, YC [S-Video])
• 1080psf Support: 23.98, 24, 25 Hz
• 1080i Support: 50, 59.94, 60 Hz
• 720p Support: 50, 59.94, 60 Hz
• SD Support: 525i, 625i (50, 59.94, 60 Hz)
• Conversion Note: Does NOT up-convert or down-convert between SD and HD resolutions
• DIP Switches: Control (Local/Remote), Component/Composite (SD only), Format (YPbPr/YC or RGB), Pedestal Present (on/off, SD only)
• USB Interface: USB 2.0 (for connection to Mac or PC)
• Power Requirements: 5 to 20 VDC, 3 watts
• Unit Dimensions: 5.1 x 2.4 x 1.0" (13.0 x 6.1 x 2.5 cm)

Why It Helps

This converter bridges digital SDI camera or switcher lines to analog display gear, wave monitors, and legacy recording decks without adding scaling latency. It preserves original source frame rates while providing native analog signal types directly off an onboard BNC breakout setup.

System Characteristics

• Direct Pass-Through Architecture keeps signal paths clean by avoiding resolution up- or down-conversion artifacts
• Broad Analog Output Versatility routes HD YPbPr/RGB or SD Betacam/EBU-N10, composite, and S-Video without extra active adapters
• Dual Setup Modes allows instant field adjustment via built-in DIP switches or software setup over USB 2.0
• Wide DC Input Range tolerates 5 to 20 VDC powering setups for desktop or field production racks

What’s In The Box

1 x AJA V2Analog HD/SD-SDI to Analog Mini-Converter
1 x AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
