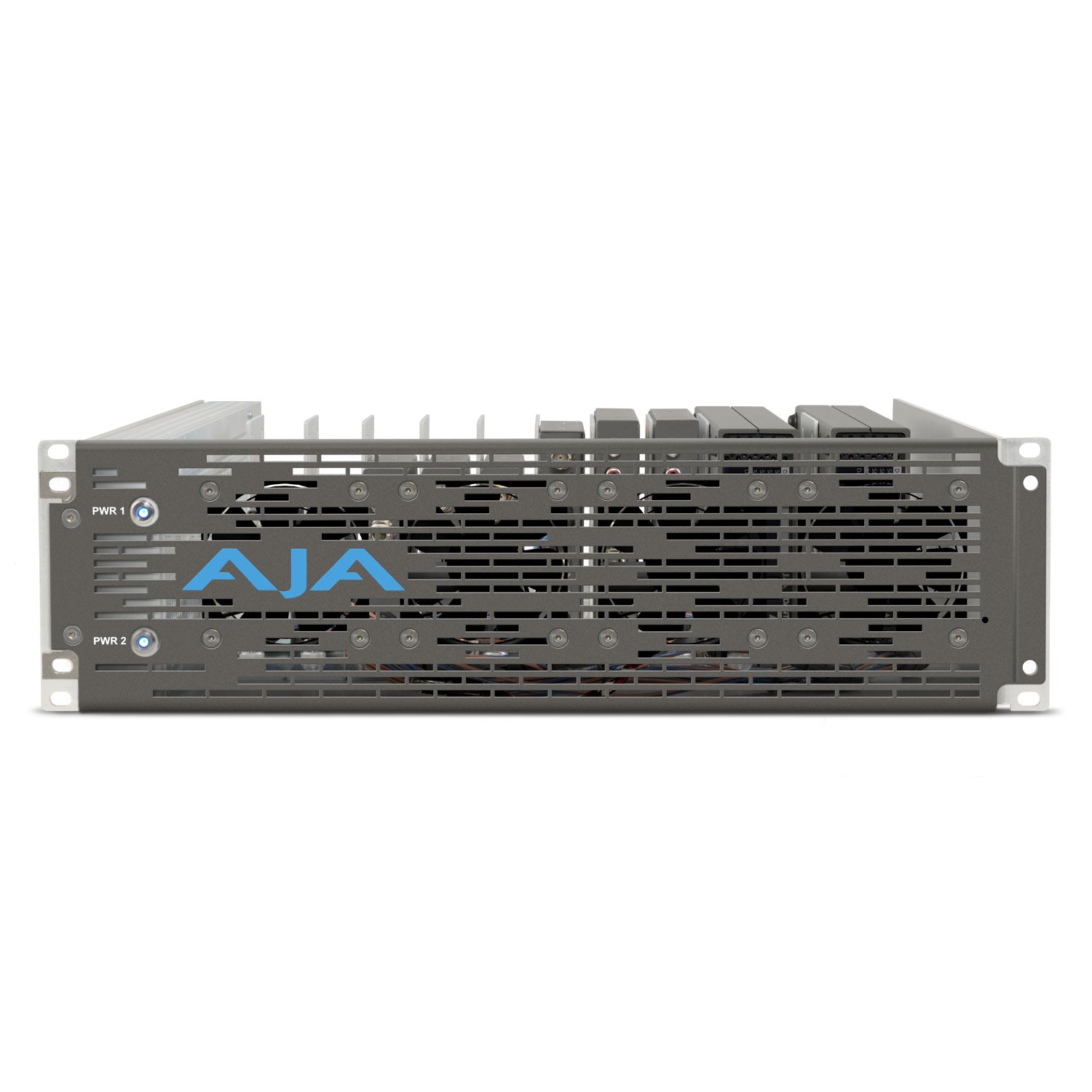

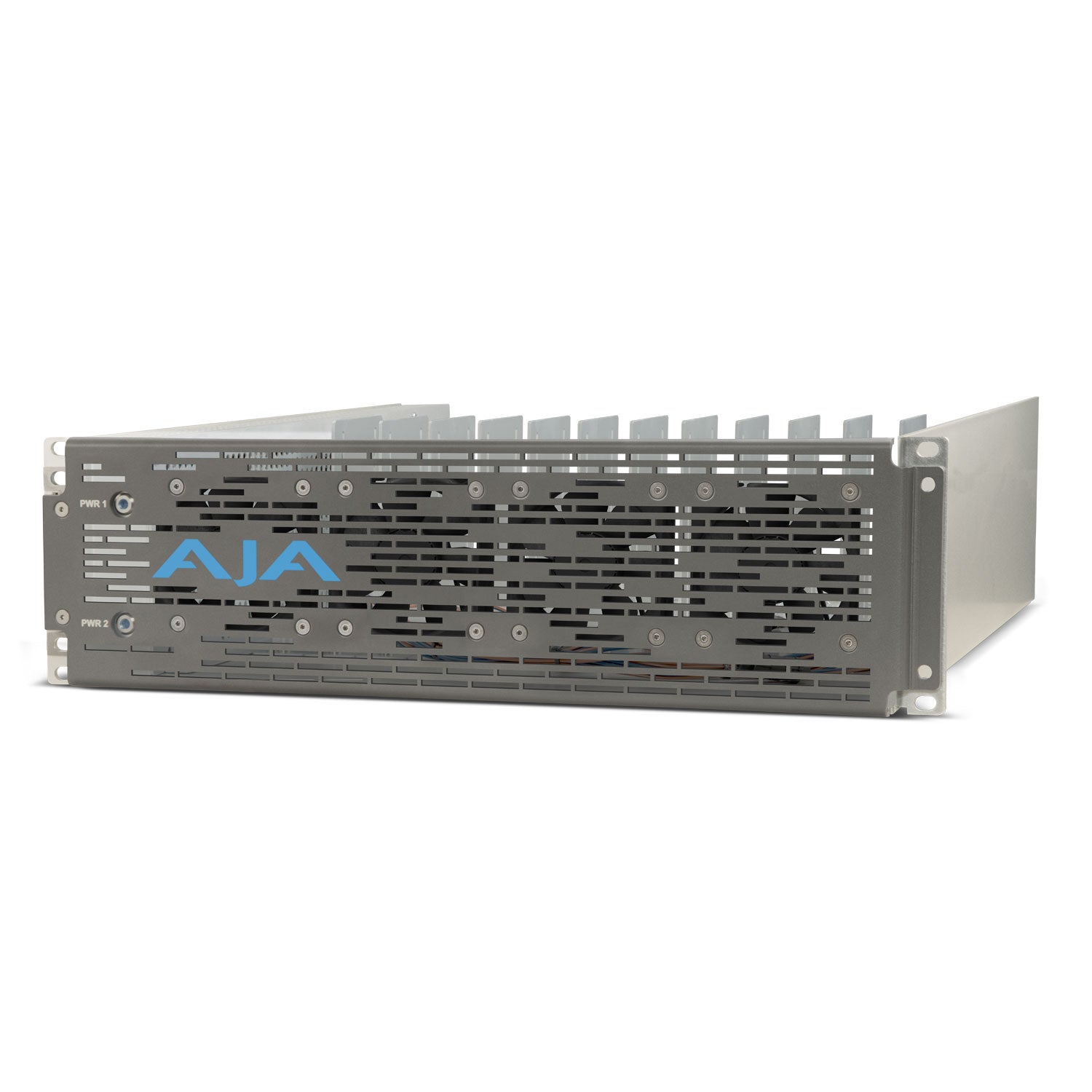

AJA DRM2-PLUS-A2 Active 3RU Mini-Converter Frame with Redundant Power Supply

The AJA DRM2-PLUS-A2 is a professional-grade 3RU rackmount frame designed to mount, cool, and power multiple AJA Mini-Converters in a single chassis. This configuration features an active faceplate and redundant power supply, making it ideal for broadcast, production, and live event environments that demand continuous uptime and reliable performance.

With 12 mounting slots, the DRM2-PLUS-A2 fits standard AJA Mini-Converters and can hold up to 24 small converters like the FiDO series, HA5-Plus, Hi5-Plus, and V2Analog or V2Digital—when used with optional Y-cables. It also supports next-gen AJA units like the DANTE-12GAM, giving you a flexible system for a wide range of signal conversion needs.

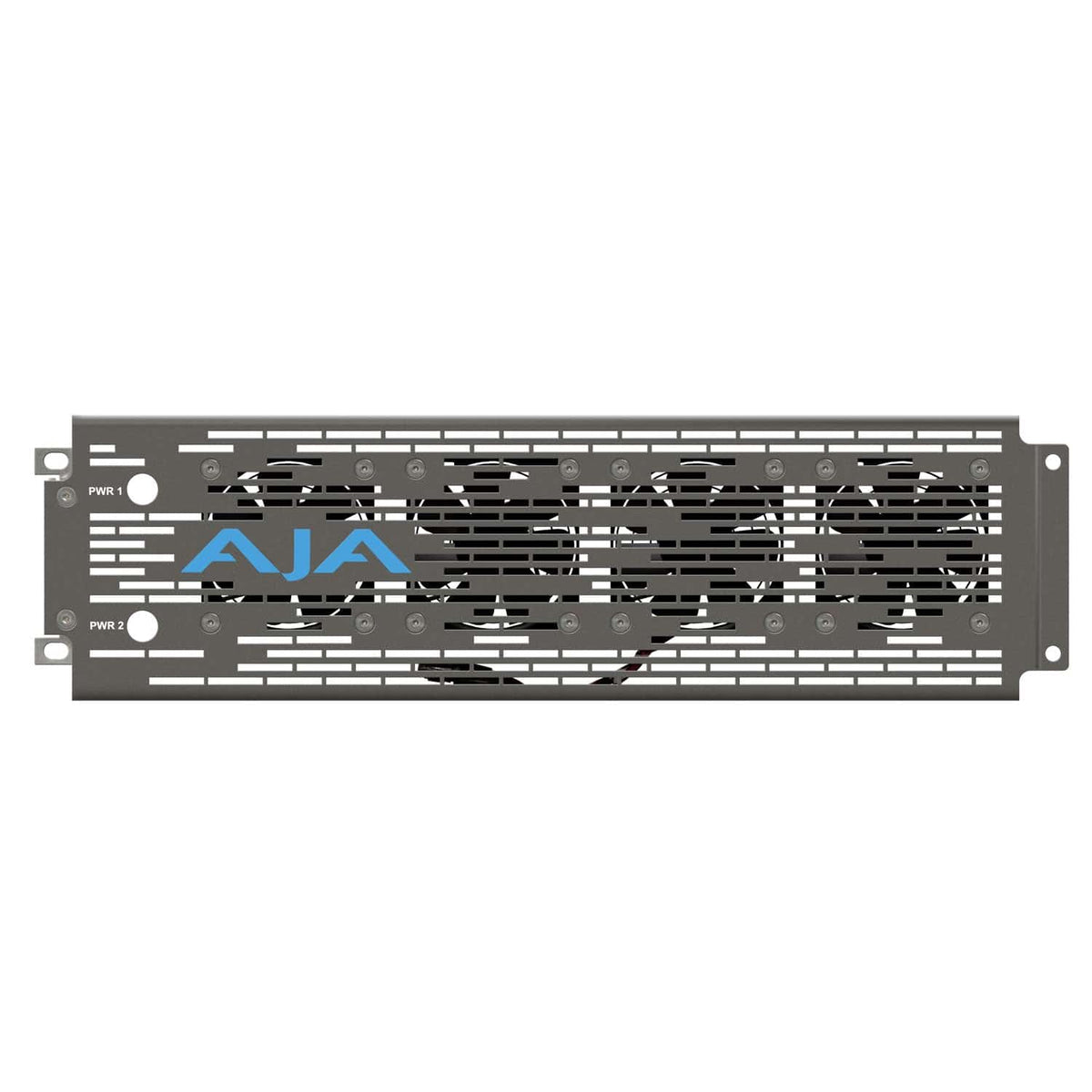

The active faceplate includes four integrated fans, built to handle high heat in demanding environments such as mobile trucks, control rooms, or on-location sets. For added peace of mind, the redundant power supply keeps your system powered even if one PSU fails—perfect for mission-critical workflows.

This model includes 12 modular carriers, and converters can be added or swapped easily thanks to the hinged front panel. No need to pull the unit from the rack for maintenance—just open the front and go. Each carrier holds one standard converter or two smaller ones with the optional DRM2-YC Y-Cable. You get 13 regulated 12V DC outputs—12 for Mini-Converters and 1 for the faceplate.

Key Features

• Mounts 12 standard AJA Mini-Converters
• Supports 24 small converters with DRM2-YC cables
• Includes 12 modular carriers
• Four-fan active faceplate for cooling
• Hinged front panel for tool-free access
• 13x 12V DC outputs (288W total)
• Redundant power for failover protection

Use Cases

• Embed/disembed up to 384 Dante audio channels
• Convert up to 48 SDI-to-fiber or fiber-to-SDI channels
• Distribute up to 60 sync signals with GEN10 and 3GDAs
• 12x 4K HDMI to 12G-SDI converters
• 24x 3G-SDI to HDMI or HDMI to 3G-SDI
• Scan conversion, UDC, and signal bridging

Modular Options

The DRM2-Plus line offers four builds:

• DRM2-PLUS-P1: Passive, Single PSU
• DRM2-PLUS-P2: Passive, Redundant PSU
• DRM2-PLUS-A1: Active, Single PSU
• DRM2-PLUS-A2: Active, Redundant PSU

You can also upgrade to an active faceplate later with the DRM2-PLUS-AF kit ($200 MSRP).

Accessories

• DRM2-YC (1x Y-Cable): $45 MSRP
• DRM2-YC12 (12x Y-Cables): $450 MSRP
• International pricing may vary
