Product Highlights
- Five DIN 1.0/2.3 pigtails
- For AJA KONA 4
- Fits Corvid 44 and 88
- HDR Image Analyzer compatible

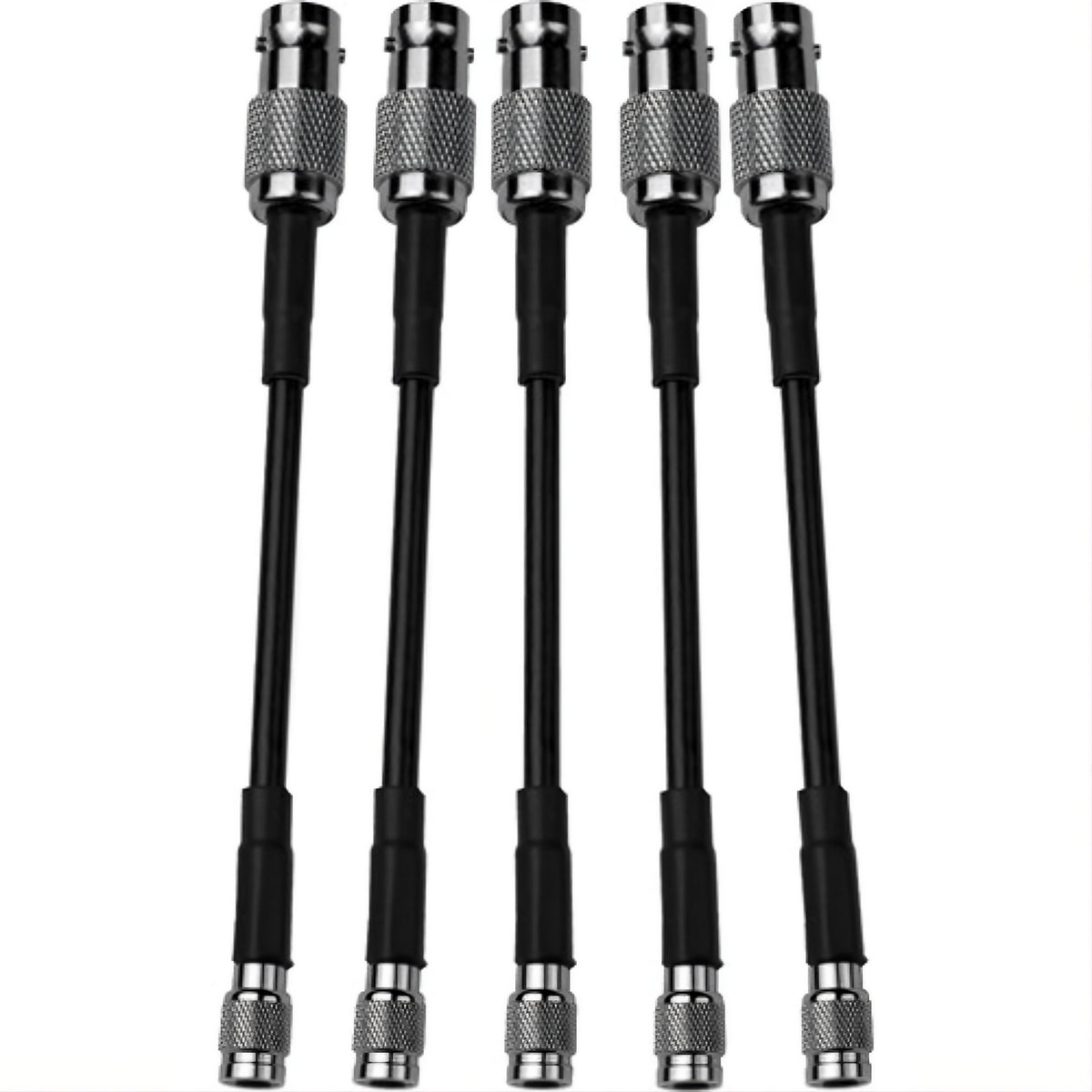

AJA DIN-BNC-CBL-5 DIN 1.0/2.3 Pigtails 5-Pack
- SKU:
- DIN-BNC-CBL-5
- MPN:
- DIN-BNC-CBL-5
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
AJA DIN-BNC-CBL-5 is a five-pack of DIN 1.0/2.3 pigtails for KONA 4, Corvid 44, Corvid 88, and HDR Image Analyzer hardware. These compact adapters provide the connection point between the small DIN interfaces used on supported AJA equipment and standard professional BNC SDI cabling. The five-piece pack works well for system builds, service spares, post-production facilities, and broadcast workflow maintenance. Keep the correct adapter at the rack instead of searching for one during setup.
Five DIN 1.0/2.3 Pigtails in One Pack
The five-pack provides multiple AJA DIN pigtails in one purchase. Keep adapters assigned to installed systems while retaining extras for field kits or service inventory. It is a practical fit for facilities maintaining several AJA I/O devices.
DIN-to-BNC SDI Cable Integration
DIN 1.0/2.3 connectivity lets compact AJA hardware interface with conventional BNC-based SDI infrastructure. This is useful where PCIe I/O cards need to reach patch panels, routers, monitors, or other rack-room connections. It keeps the physical adapter point compact at the AJA device.
KONA 4 DIN Adapter Replacement
KONA 4 uses four DIN 1.0/2.3 sliding-sleeve video connectors on its card endplate. AJA documentation describes DIN-to-full-size-BNC adapter cabling for those ports. This five-pack gives KONA 4 installations a convenient supply of compatible pigtails for integration and maintenance.
Corvid 44 and Corvid 88 DIN Connectivity
The product listing specifies compatibility with both Corvid 44 and Corvid 88. AJA documents DIN 1.0/2.3 SDI connections on these models, making the pigtails useful in playout servers, OEM systems, and multi-channel broadcast installations. Check the exact Corvid variant before ordering because connector configurations differ across the wider Corvid family.
HDR Image Analyzer DIN Adapter Support
AJA lists the pigtail pack for its HDR Image Analyzer, and documentation for the original 3G model specifies DIN 1.0/2.3 SDI connectors with BNC adapters. That makes the cable set relevant for HDR monitoring, mastering, and quality-control suites using that chassis. The later HDR Image Analyzer 12G uses a different HD-BNC connector format.
SDI Pigtail Spares for Broadcast Service
Small adapter cables are easy to separate from the hardware they support, especially in mobile and shared production environments. Keeping spare SDI pigtails available reduces avoidable setup problems during live production, studio integration, and post-production maintenance. The five-piece format also suits service departments supporting multiple systems.
Broadcast Engineers
Keep replacement DIN-to-BNC connectivity available for supported AJA SDI hardware.
Post-Production Facilities
Maintain KONA and Corvid I/O connections used in editing, finishing, and monitoring systems.
Live Production Teams
Stock spare pigtails for portable production systems and temporary SDI deployments.
HDR QC Suites
Support the DIN-equipped original AJA HDR Image Analyzer in monitoring and mastering environments.
OEM and Playout Systems
Connect compatible Corvid cards into professional BNC-based SDI infrastructure.
Service Departments
Keep multiple replacement adapters on hand for supported AJA installations.
| Specification | Detail |
|---|---|
| Manufacturer | AJA |
| Manufacturer Part Number | DIN-BNC-CBL-5 |
| Product Type | DIN 1.0/2.3 pigtail adapter cable pack |
| Package Quantity | 5 pigtails |
| Connector Family | DIN 1.0/2.3 to professional BNC SDI cabling |
| Listed Compatibility | KONA 4 · Corvid 44 · Corvid 88 · HDR Image Analyzer |
| Application | SDI connectivity, replacement adapters, system integration, and service spares |
What is the DIN-BNC-CBL-5 pigtail pack used for?
The DIN-BNC-CBL-5 provides five DIN 1.0/2.3 pigtails for compatible AJA video hardware. The adapters allow supported compact DIN SDI connections to integrate with professional BNC-based cabling.
Which AJA products are listed as compatible?
AJA's DIN pigtail pack is listed for KONA 4, Corvid 44, Corvid 88, and HDR Image Analyzer systems. Because AJA has produced variants with different connector types, the exact hardware model should be checked before ordering.
Does the DIN-BNC-CBL-5 fit KONA 4?
Yes. KONA 4 is specifically listed for this cable pack. AJA documentation also confirms that KONA 4 uses DIN 1.0/2.3 sliding-sleeve video connectors with adapter cabling to full-size BNC connections.
Which Corvid models use DIN 1.0/2.3 connections?
AJA documents DIN 1.0/2.3 SDI connections on Corvid 44 and Corvid 88, and both are named in the cable pack's compatibility listing. Corvid 44 12G uses HD-BNC instead, so confirm the Corvid model before purchase.
Does the pigtail pack support HDR Image Analyzer systems?
The product listing names HDR Image Analyzer as compatible. AJA documentation for the original 3G HDR Image Analyzer specifies DIN 1.0/2.3 SDI connectors, while the later HDR Image Analyzer 12G uses HD-BNC connectors.
Need AJA DIN-BNC-CBL-5 Pigtails for Your SDI System?
Coremicro is an authorized AJA dealer supporting professional broadcast, live production, post-production, and system integration workflows. Contact us to confirm the connector type and compatibility for your specific AJA hardware before ordering.
