Product Highlights
- 2m DIN to BNC cable
- DIN 1.0/2.3 connector
- Compatible with KONA 4
- Supports select Corvid hardware

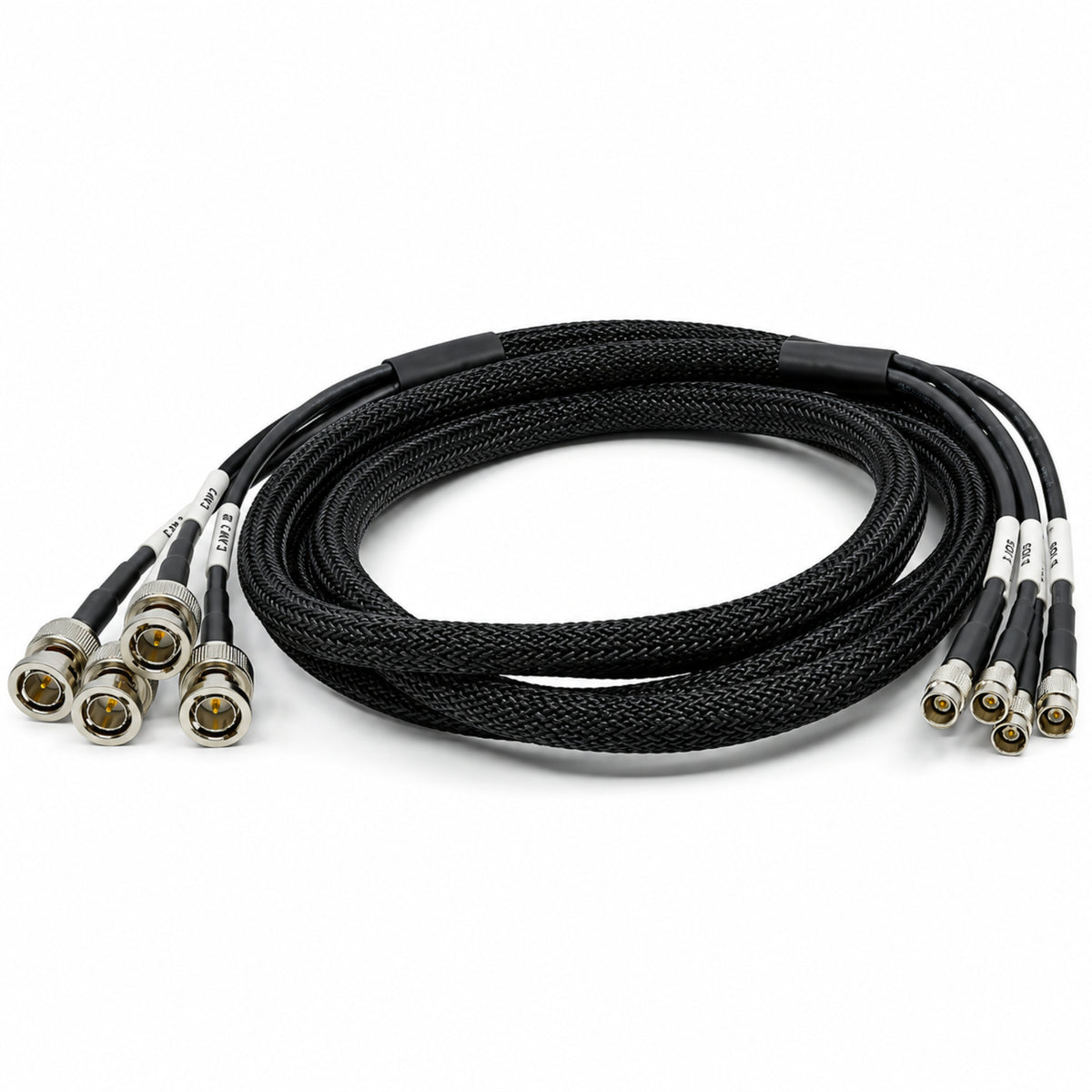

AJA DIN-BNC-CBL-2M 2m DIN 1.0/2.3 to BNC Cable
- SKU:
- DIN-BNC-CBL-2M
- MPN:
- DIN-BNC-CBL-2M
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
AJA DIN-BNC-CBL-2M is a 2-meter DIN 1.0/2.3 to full-size BNC cable for compatible AJA professional video hardware. It provides the physical connection needed between compact DIN-equipped AJA interfaces and standard BNC cabling in broadcast I/O, post-production, live production, and HDR QC systems. Listed compatibility includes KONA 4, Corvid 44, Corvid 88, and the original HDR Image Analyzer. Use the correct connector for the card — no improvised adapters in the signal chain.
2m DIN to BNC Cable Run
The 2-meter cable length gives operators practical reach between an AJA PCIe interface or analyzer and standard BNC infrastructure. It works well for workstation, rack, ingest, and monitoring installations where a short local interconnect is required. The single-cable format also makes it straightforward to replace an individual connection without changing the rest of the cabling.
DIN 1.0/2.3 to Full-Size BNC Connectivity
DIN 1.0/2.3 connectivity provides a compact interface at supported AJA hardware while the opposite end connects to standard BNC infrastructure. This is useful when dense professional video hardware has limited panel space but the facility is already wired around full-size BNC. DIN 1.0/2.3 and HD-BNC are different connector formats, so the exact hardware model should be checked before ordering.
KONA 4 SDI Connection Support
AJA KONA 4 uses DIN 1.0/2.3 sliding-sleeve connections for its professional SDI I/O. This cable provides a practical path from that compact interface to standard BNC-based facility cabling. It fits editing, color, ingest, playout, and broadcast workstation installations built around KONA 4.
Corvid 44 DIN 1.0/2.3 Integration
The standard Corvid 44 provides four bidirectional SDI connections using DIN 1.0/2.3 connectors. A DIN-to-BNC cable lets system integrators transition those compact card connections into conventional BNC patching and infrastructure. Check the exact Corvid model because Corvid 44 12G variants use different connector configurations.
Corvid 88 High-Density I/O Cabling
Corvid 88 uses DIN 1.0/2.3 connectors across its high-density professional video interface. Individual adapter cables are useful when building or servicing multi-channel ingest servers, playout systems, channel-in-a-box platforms, and custom developer solutions. Keeping each channel on its own cable also simplifies service and replacement inside dense systems.
HDR Image Analyzer BNC Adapter Connection
AJA documentation for the original HDR Image Analyzer specifies 1.0/2.3 DIN-to-full-size-BNC adapter cables for its video connections. This makes the cable relevant for HDR mastering, quality-control, monitoring, and post-production environments using that analyzer generation. It should not be assumed to fit the newer HDR Image Analyzer 12G without first confirming the connector requirement.
| Specification | Detail |
|---|---|
| Model | AJA DIN-BNC-CBL-2M |
| Cable Length | 2 m |
| Connector 1 | DIN 1.0/2.3 |
| Connector 2 | Full-size BNC |
| Quantity | Single cable |
| Application | Professional video and SDI interconnection |
| Listed Compatibility | KONA 4 · Corvid 44 · Corvid 88 · HDR Image Analyzer |
| Connector Note | DIN 1.0/2.3 is not interchangeable with HD-BNC. Confirm the connector type on the exact AJA hardware before ordering. |
Broadcast I/O
Connect compatible AJA DIN-equipped hardware to standard BNC patching and facility cabling.
Post-Production
Build clean workstation connections for KONA 4 editing, finishing, monitoring, ingest, and playout systems.
Developer Systems
Integrate Corvid 44 or Corvid 88 cards into server and OEM video systems using conventional BNC infrastructure.
HDR QC
Maintain DIN-to-BNC connections in original-generation HDR Image Analyzer monitoring and mastering installations.
KONA 4 Operators
For facilities replacing or adding an individual DIN-to-BNC connection around a KONA 4 workstation.
Corvid Integrators
For OEM and broadcast engineers building Corvid 44 or Corvid 88 based systems.
Broadcast Engineers
For technical teams maintaining professional AJA I/O and standard BNC signal infrastructure.
HDR Facilities
For post-production and QC environments maintaining the original AJA HDR Image Analyzer platform.
What Is the AJA DIN to BNC Cable Used For?
It adapts a DIN 1.0/2.3 connection on compatible AJA professional video hardware to a standard full-size BNC connection. The cable is intended for video signal connections in professional AJA workflows.
How Long Is the AJA DIN BNC Cable?
The cable is 2 meters long. It is supplied as one individual cable rather than a multi-cable pack.
Does the DIN Cable Work With AJA KONA 4?
Yes. KONA 4 is listed for compatibility, and AJA documentation confirms that KONA 4 uses DIN 1.0/2.3 connections for its SDI interface.
Does the BNC Cable Fit Corvid 44 and Corvid 88?
The standard Corvid 44 and Corvid 88 are listed as compatible and use DIN 1.0/2.3 SDI connectors. Corvid 44 12G versions can use other connector formats, so the exact card model should be checked first.
Is DIN 1.0/2.3 the Same as HD-BNC?
No. DIN 1.0/2.3 and HD-BNC are different physical connector standards. A cable intended for a DIN-equipped KONA 4 or standard Corvid card should not be assumed to fit HD-BNC hardware.
Can the DIN BNC Cable Serve HDR QC Systems?
Yes, for the original AJA HDR Image Analyzer listed for this accessory. AJA's installation documentation specifies 1.0/2.3 DIN-to-full-size-BNC adapter cables for that analyzer's video connections.
Need the Correct AJA DIN to BNC Cable for Your System?
Coremicro is an authorized AJA dealer supporting broadcast, live production, post-production, and professional video I/O workflows. Contact us to confirm your KONA, Corvid, or HDR Image Analyzer connector before ordering.
