Product Highlights
- Four bidirectional 12G-SDI ports
- 8K/UltraHD2 up to 60p
- PCIe 3.0 x8 interface
- HDR and HFR workflows
AJA Corvid 44 12G 8K 12G-SDI PCIe Video I/O Card
- SKU:
- CRV44-12G-R0-12
- MPN:
- CRV44-12G-R0-12
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
AJA Corvid 44 12G is a PCIe 3.0 x8 video I/O card built around four bidirectional 12G-SDI HD-BNC connections for high-density capture and playback. It handles 8K, UltraHD2, 4K, UltraHD, 2K, HD, and SD formats, with high-frame-rate workflows reaching 50/60p where the host system supports them. Full-height and low-profile versions are available with active or passive cooling, giving broadcast, post-production, and virtual production systems a compact route to multi-format SDI I/O.
The AJA Corvid 44 12G is a multi-format PCIe video I/O card available from Coremicro (coremicro.com), an authorized AJA dealer based in Union City, California. The card provides four bidirectional 12G-SDI HD-BNC connections, an 8-lane PCIe 3.0 electrical interface, and format support through 8K 8192 × 4320p60. AJA lists a US MSRP of $4,498 for the Corvid 44 12G family. Corvid products include a three-year AJA manufacturer warranty and access to AJA technical support.
8K and UltraHD2 Capture up to 60p
8K high-frame-rate video I/O reaches 8192 × 4320p60, while UltraHD2 reaches 7680 × 4320p60. Film rates including 23.98, 24, 47.95, and 48p are supported across 8K, 4K, and 2K workflows. Host performance matters — AJA notes that not every system configuration can sustain every raster and frame rate.
Real-Time Downstream Keying up to 4K
Hardware downstream keying supports graphics with alpha over video, matte, or framebuffer content up to UltraHD and 4K. That keeps overlay work inside the I/O path for live production graphics, broadcast branding, and real-time compositing without moving the keying task into a separate external device.
SCTE-104 and Dolby Vision Metadata Workflows
SDI metadata workflows in AJA Control Room can capture ancillary metadata such as SCTE-104 and Dolby Vision metadata, preserve it alongside media, and export synchronized sidecar data on a per-frame basis. AJA specifies this metadata toolset for macOS and Windows, making it useful in broadcast compliance, mastering, and post-production pipelines where metadata continuity matters.
12G-SDI I/O for Unreal Engine Virtual Production
Unreal Engine virtual production workflows can ingest live SDI camera feeds, combine them with rendered environments, and return the composited result over SDI. This makes the card relevant to augmented reality, on-set VFX, eSports production, and broadcast studios that need real-time interaction between camera signals and rendered content.
Genlock and LTC Reference for Frame-Accurate I/O
LTC and reference support includes a switchable HD-BNC reference connection on full-height models plus an internal LTC header. Reference accepts analog color black, composite sync, or HD tri-level sync, giving studio, broadcast, and post systems a direct way to align video I/O with facility timing.
Sony 9-Pin RS-422 for Frame-Accurate Deck Control

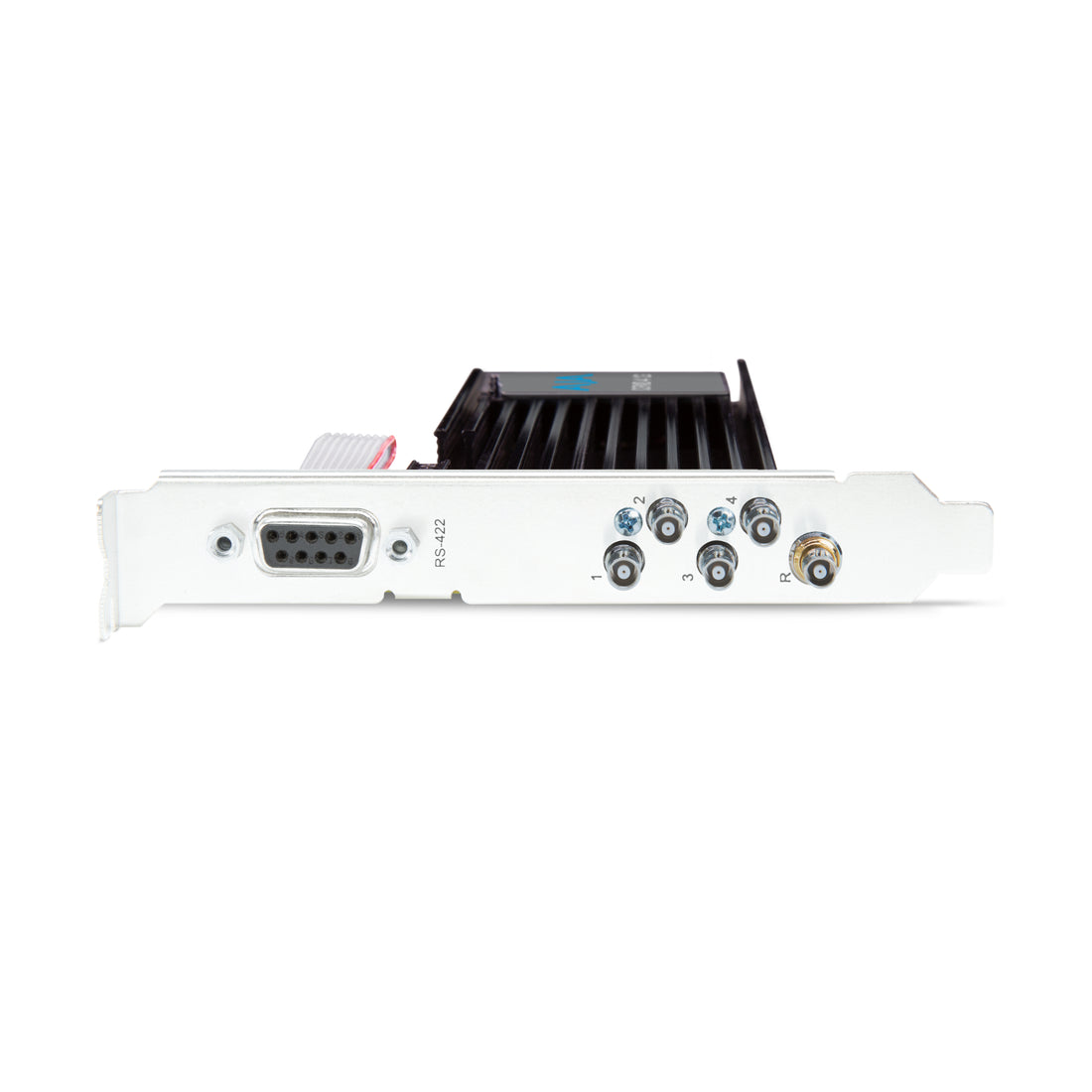

RS-422 machine control uses Sony 9-pin protocol for frame-accurate ingest and layoff workflows. Both low-profile and full-height cards provide RS-422 through an internal header, while full-height models can expose the connection on the PCIe bracket through a DB9 cable.
Four Bidirectional 12G-SDI HD-BNC Ports
Each SDI connection can be configured for input or output. At 2K and HD, capture and monitoring can run simultaneously, while 4K and 8K routing depends on whether the workflow uses single-link 12G-SDI or grouped SDI connections.
HDR, LUT, and FPGA Processing Support
The platform supports VPID signaling for SDR and HDR characteristics, PQ, HLG, Dolby Vision workflows, HDR metadata capture, up to 12-bit LUT files, and dynamic FPGA firmware reconfiguration for application-specific processing.
Embedded SDI Audio for Multi-Channel Production
Each 12G-SDI connection carries up to 16 channels of embedded audio at 48 kHz. Across four connections, that supports dense broadcast and live production systems where video and multi-channel audio need to remain synchronized through the same PCIe I/O card.
Broadcast Engineers
For multi-format SDI ingest, monitoring, keying, reference, and machine-control systems inside broadcast workstations.
Virtual Production
For Unreal Engine and AR stages that need real-time SDI exchange between cameras, render systems, and program output.
Post-Production
For high-resolution capture, playback, HDR metadata, LUT, and reference-driven mastering workflows.
Live Production
For multi-channel 4K and HD systems that need flexible SDI I/O, embedded audio, and hardware keying.
eSports Production
For graphics-heavy productions combining live sources, rendered environments, and high-frame-rate outputs.
OEM Developers
For custom systems built around AJA's developer ecosystem, PCIe I/O architecture, and configurable FPGA hardware.
AJA Support and Warranty
AJA covers Corvid products with a three-year manufacturer warranty and provides technical support for installation, configuration, and operation.
| Specification | Detail |
|---|---|
| Video Formats | 8K 8192 × 4320p up to 60; UltraHD2 7680 × 4320p up to 60; 4K 4096 × 2160p up to 60; UltraHD 3840 × 2160p up to 60; 2K 2048 × 1080p up to 60 and PsF up to 25; 1080p up to 60; 1080PsF up to 30; 1080i 50/59.94/60; 720p 50/59.94/60; 625i50; 525i59.94 |
| Video Inputs | 12G-SDI SMPTE 2082; 6G-SDI SMPTE 2081; 3G-SDI SMPTE 425; 1.5G-SDI SMPTE 292M; 270 Mbps SDI SMPTE 259M-C |
| Video Outputs | 12G-SDI SMPTE 2082; 6G-SDI SMPTE 2081; 3G-SDI SMPTE 425; 1.5G-SDI SMPTE 292M; 270 Mbps SDI SMPTE 259M-C |
| SDI Connectors | 4× bidirectional 12G-SDI HD-BNC connections plus reference input |
| Color Sampling and Bit Depth | RGB 4:4:4 up to 12-bit and YCbCr 4:2:2 10-bit depending on signal format and application support; bit-depth support is application dependent |
| SDI I/O Modes | 2K/HD supports simultaneous capture and monitoring; 4K/UltraHD over 12G-SDI supports simultaneous capture and monitoring; quad 3G-SDI 4K and 12G-SDI 8K/UltraHD2 require grouped connections as input or output |
| Embedded Audio Input | 16-channel SDI embedded audio, 24-bit and 16-bit, 48 kHz, synchronous |
| Embedded Audio Output | 16-channel SDI embedded audio, 24-bit, 48 kHz, synchronous |
| Downstream Keyer | Graphics with alpha over video, matte, or framebuffer, or framebuffer over incoming video or matte, up to UltraHD/4K |
| HDR and Metadata | VPID signaling for SDR/HDR transfer characteristics, colorimetry, and luminance; PQ, HLG, Dolby Vision support; HDR metadata capture and automatic playback detection |
| LUT Support | Up to 12-bit LUT support using .cube files |
| Reference | Analog color black 1V, composite sync 2V or 4V, or HD tri-level sync 1V via HD-BNC on PCIe bracket; 75-ohm termination when genlock is set to Ref In |
| Timecode | LTC input via 2-pin header on low-profile and full-height models; switchable LTC via HD-BNC Ref In on full-height models |
| Machine Control | RS-422 Sony 9-pin protocol via card header; full-height models can provide RS-422 through the PCIe bracket using a DB9 cable |
| Electrical Interface | 8-lane PCIe 3.0 |
| Cooling Options | Active fan models under 50 dBA at 1 m in free air; passive models are virtually silent and require at least 150 LFM chassis airflow at 30 C |
| Low-Profile Size | 0.75 × 7.0 × 3.15 in / 19 × 178 × 80 mm |
| Full-Height Size | 0.75 × 7.0 × 4.75 in / 19 × 178 × 121 mm |
| Weight | PCIe card: 0.6 lb / 0.3 kg; cables combined: 0.6 lb / 0.3 kg |
| Power | 25W typical, 32W maximum; internal ATX power connector, Molex 45559-0002; power can be supplied from a 6-pin ATX connection or through the PCIe slot |
| Operating Environment | 0 to 40 C operating temperature; -40 to 60 C storage; 10–90% noncondensing relative humidity; operating altitude below 3,000 m |
| Form Factors | Low-profile and full-height models with active or passive cooling configurations |
| Apple Silicon | Supported according to AJA's current Corvid 44 12G feature list |
| Warranty | Three-year AJA manufacturer warranty |
What is the AJA Corvid 44 12G used for?
The AJA Corvid 44 12G is used for professional SDI capture and playback in broadcast, post-production, live production, OEM, and virtual production systems. It combines four bidirectional 12G-SDI connections with PCIe 3.0 x8 host connectivity and format support through 8K.
How many 12G-SDI connections does Corvid 44 12G provide?
Corvid 44 12G provides four bidirectional 12G-SDI HD-BNC connections. Each SDI connection can carry 16 channels of embedded audio, and I/O assignment depends on the selected raster and link configuration.
Does Corvid 44 12G support 8K at 60p?
Corvid 44 12G supports 8192 × 4320 progressive formats through 59.94 and 60 fps. AJA notes that 8K and high-frame-rate operation depends on host-system capabilities, so not every workstation configuration supports every raster and frame rate.
Is Corvid 44 12G compatible with Unreal Engine workflows?
Corvid 44 12G supports AJA workflows with Unreal Engine for real-time SDI capture and output in AR and virtual production. AJA provides a Corvid 44 Unreal Engine quick-start workflow for these applications.
What is the difference between Corvid 44 12G and Corvid 44 12G BNC?
Corvid 44 12G uses HD-BNC SDI connectors, while Corvid 44 12G BNC uses full-size BNC connectors. Both families provide four bidirectional 12G-SDI connections and an 8-lane PCIe 3.0 interface, but chassis space and connector preference can determine which version fits a system.
What warranty does Corvid 44 12G include?
Corvid 44 12G includes a three-year AJA manufacturer warranty. AJA technical support is also available for installation, configuration, operation, and troubleshooting.
Is Coremicro an authorized AJA dealer?
Coremicro is an authorized AJA dealer based in Union City, California. AJA products sold by Coremicro include the applicable manufacturer warranty and access to AJA technical support.
Ready to Add Corvid 44 12G to Your Production System?
Coremicro is an authorized AJA dealer supporting professional 12G-SDI PCIe I/O workflows across broadcast, post-production, live events, and virtual production. Contact us to confirm the correct bracket, cooling, connector, and host configuration for your system.
