Product Highlights
- Up to 4x UHD ST 2110
- Up to 16x HD streams
- Bidirectional encode decode and transcode
- SRT H.264 H.265 streaming support
AJA BRIDGE LIVE IP SMPTE ST 2110 SRT Streaming Gateway 25GigE
- SKU:
- BLVE-IP
- MPN:
- BLVE-IP
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
AJA BRIDGE LIVE IP is a high-density SMPTE ST 2110 gateway for bidirectional encoding, decoding, transcoding, remote production, contribution, and direct-to-audience streaming. It converts uncompressed ST 2110 video into practical delivery formats including H.264, H.265, H.262, SRT, HLS, RTP, RTMP/S, and MPEG-TS, while optional licenses extend the platform to NDI, JPEG XS, and JPEG 2000. Dual 10/25GigE SFP28 media interfaces, NMOS control, ST 2022-7 redundancy, and dual power supplies make it suited to broadcast facilities and live production systems where channel density and uptime matter. One system can bridge the plant, the public internet, and downstream delivery without adding separate encode and decode appliances.
Uncompressed IP
ST 2110-20 video · ST 2110-30 audio · ST 2110-40 ancillary
Compressed Video
H.265 HEVC · H.264 AVC · H.262 MPEG-2 · optional NDI · optional JPEG XS · optional JPEG 2000
Streaming Protocols
SRT · HLS · RTP · UDP · RTMP · RTMPS output · MPEG-TS · MPTS input
High-Density ST 2110 Gateway
The ST 2110 gateway handles up to four UHDp60 or sixteen HD receive and transmit channels, subject to format and application requirements. Video uses 10-bit YCbCr 4:2:2 sampling for ST 2110-20. This density suits centralized IP production and facility conversion where multiple signals need to share one 1RU platform.
H.264 and H.265 IP Transcoding
IP transcoding converts ST 2110 into H.264 AVC, H.265 HEVC, or H.262 MPEG-2 for distribution and contribution. H.264 and H.265 can scale to four simultaneous 60p UHD or sixteen 60p HD encode/decode paths to or from ST 2110. A single uncompressed source can feed multiple stream formats and destinations.
Synchronous Multi-Channel Transport
Synchronous multi-channel transport preserves timing relationships between independent production feeds as they move between sites or into cloud delivery workflows. That is valuable for REMI productions where camera, program, preview, and return signals must stay aligned. The same architecture can scale across multiple systems for larger source counts.
NMOS and PTP ST 2110 Control
NMOS control supports IS-04 registration and IS-05 connection management in-band and out-of-band. PTP timing uses ST 2059-2 and IEEE 1588-2008 over the media network. REST API, SNMP, browser access, and local control give engineering teams several paths for monitoring and automation.
Optional 10-Bit NDI Conversion
The optional NDI license adds encode, decode, and transcode paths between NDI, compressed IP formats, and ST 2110. The platform supports up to four 60p UHD or eight 60p HD NDI encode/decode channels to or from ST 2110. Manual HDR metadata marking and multiple Discovery Servers support hybrid NDI facilities.
Broadcast Metadata and Closed Captions
Broadcast metadata support includes ST 2110-40 ancillary data, SMPTE ST 2038, SCTE-35 and SCTE-104 markers, captioning, timecode, and metadata pass-through. H.264 SEI can carry subtitles and timecode information. These details matter when a contribution path must preserve more than picture and audio.
Closed Caption and Ancillary Data Transport
Closed caption and ancillary data transport keeps operational metadata intact through complex IP workflows. Supported functions include EIA-608/708 captions, Line 21 captions, SCTE markers, ST 2110-40 ancillary data, and timecode carried in H.264 or HEVC SEI messages. This is useful for broadcast distribution, ad insertion, regulatory captioning, and downstream playout systems.
Secure SRT Contribution with Network Bonding
SRT contribution provides encrypted transport over unpredictable public networks while keeping latency low enough for live workflows. The system supports SRT alongside MPEG-TS and can use SRT Network Bonding for redundant stream paths.
For remote production and sports broadcasting, that gives engineering teams an alternative to dedicated contribution circuits while retaining recovery options when an ISP path becomes unstable.
ST 2110-20
10-bit · 4:2:2 · up to 4x UHDp60 Rx/Tx · up to 16x HD Rx/Tx
H.265 HEVC
8-bit or 10-bit · 4:2:0 · up to 4x 60p UHD or 16x 60p HD · SRT and MPEG-TS
H.264 AVC
8-bit or 10-bit · 4:2:0 or 4:2:2 · up to 4x 60p UHD or 16x 60p HD · SRT, RTMP, MPEG-TS
Protocols
ST 2110-10/20/30/40 · HLS · RTP · RTMP · RTMPS output · SRT · UDP · MPTS input
Transport Formats
MPEG-TS · optional NDI · AVC-TS · Fragmented MP4
Audio
ST 2110-30 · AAC-LC · AAC-HE · AC3 · E-AC3 input · Dolby E pass-through · MPEG-2 Audio · PCM
NDI Encode Decode Transcode License
Adds NDI I/O with up to four simultaneous 60p UHD or eight 60p HD encode/decode channels to or from ST 2110, plus compressed-IP-to-NDI transcoding.
Perpetual activation. Optional purchase from AJA.
JPEG XS Encode Decode License
Adds 10-bit 4:2:2 visually lossless JPEG XS encode/decode for up to four 60p UHD or eight HD channels, with MPEG-TS support and scalable IP-to-IP transcoding.
$1,619 per HD channel or $5,939 per UltraHD/four-channel HD license.
JPEG 2000 Encode Decode License
Adds 10-bit 4:2:2 JPEG 2000 I/O for contribution workflows, including up to two simultaneous UHD 60p or four 30p UHD encode/decode paths with SRT and MPEG-TS support.
$1,619 per HD channel or $5,945 per UltraHD/four-channel HD license.

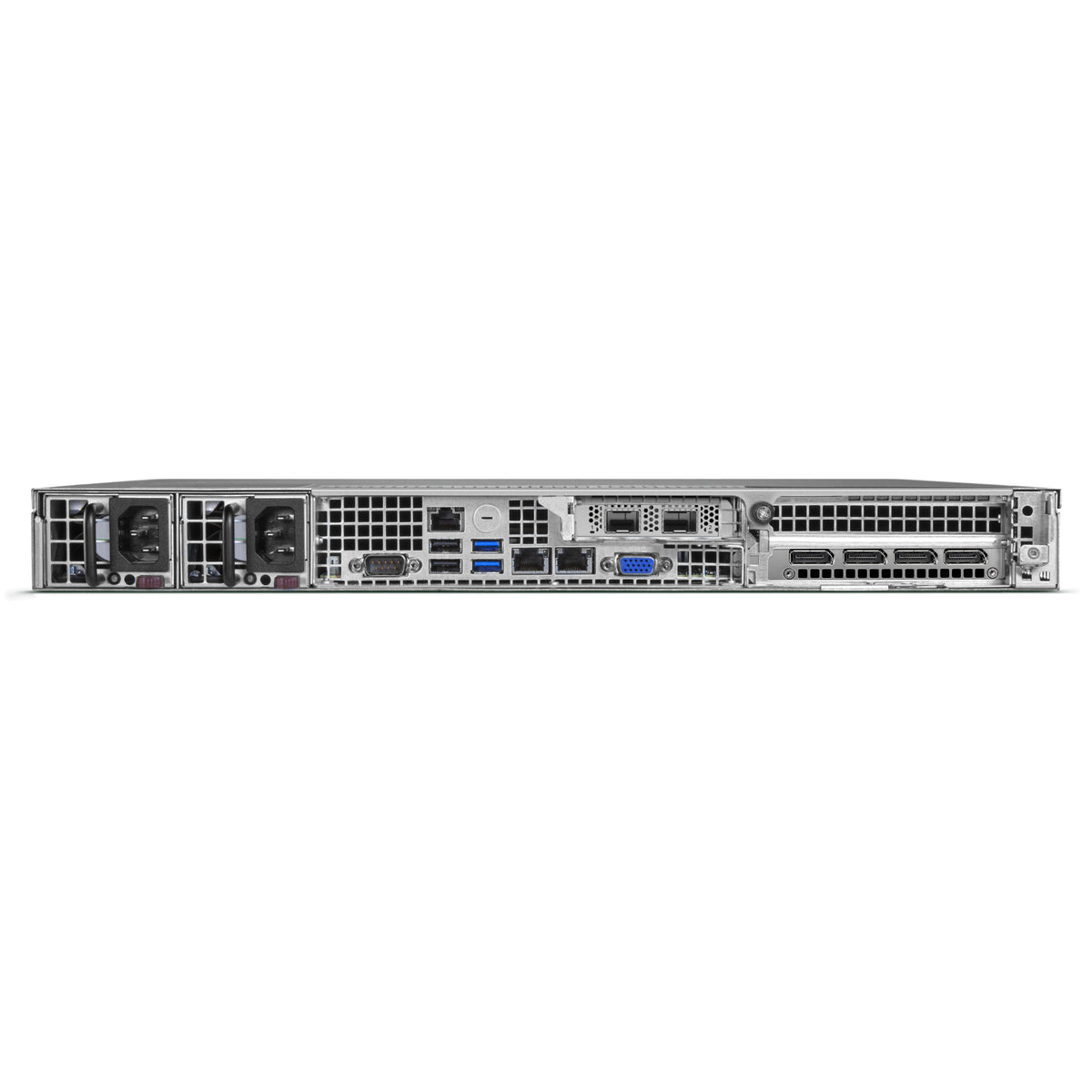

Media Network
2x SFP28 cages · 10GigE and 25GigE compatible · SFPs not included
Compressed IP / Control
2x 10GigE RJ45 · browser UI · REST API · SNMP · NMOS · IPMI
Local / Power
DisplayPort and USB local interface · dual redundant AC power supplies
REMI Backhaul with Synchronous ST 2110
For REMI and sports production, multiple ST 2110 sources can be timestamped, transported, and reconstructed in sync at the receiving facility. Bidirectional operation allows the same appliance type to serve transmit or receive roles.
Eight-Channel HD Transport over Internet
A remote site can package multiple HD production feeds into MPEG-TS over SRT for transport across the public internet. At the destination, those feeds can return to the facility ST 2110 network for routing and production.
IP Receiving Hub for Mixed Sources
A facility can receive contribution feeds from third-party encoders, IP cameras, or software and convert them into ST 2110 for internal routing. That makes the gateway useful when remote sources do not originate as native uncompressed IP.
Direct-to-Audience CDN Streaming
Finished program feeds can be encoded into multiple bit rates and formats for CDN handoff, OTT packaging, or partner delivery. HLS, RTMP/S, SRT, RTP/UDP, and MPEG-TS cover common live streaming and distribution paths.
Broadcast Engineers
For ST 2110 facilities that need contribution, transcoding, metadata preservation, and redundant network paths in a single 1RU system.
REMI Production Teams
For multi-camera remote production that needs synchronized source transport between venues, trucks, control rooms, or cloud services.
Sports Broadcasters
For high-channel-count UHD or HD contribution where SRT, ST 2022-7, and synchronous transport protect live event workflows.
Streaming Operations
For teams converting facility ST 2110 feeds into H.264 or H.265 delivery streams and ABR profiles for CDN distribution.
Post-Production Facilities
For remote creatives who need reference-quality IP video while media and workstations remain secured at the production facility.
Systems Integrators
For hybrid IP designs requiring NMOS, PTP, REST, SNMP, optional NDI, and flexible compressed transport interoperability.
AJA Support and Warranty
The hardware includes a three-year warranty. Maintaining the optional annual maintenance license can extend the hardware warranty to five years and adds software and hardware technical support, advanced replacement, software feature updates, and priority support benefits.
| Specification | Detail |
|---|---|
| Video Formats | 3840 x 2160p 25/29.97/30/50/59.94/60; 2560 x 1440p 25/29.97/30/50/59.94/60; 1920 x 1080p 25/29.97/30/50/59.94/60; 1920 x 1080i 50/59.94; 1280 x 720p 50/59.94/60 |
| Media Transport Interfaces | 2x SFP28 cages supporting 10GigE and 25GigE SFPs; uncompressed ST 2110-20/30/40, PTP, configuration and control; SFPs not included |
| ST 2110-20 Input | Up to 16-channel input, format and application dependent; Narrow and Wide Sender receive support; Class A, B, C ST 2022-7 redundancy |
| ST 2110-20 Output | Up to 16-channel output, format dependent; ST 2022-7 transmit support; Narrow Gapped senders |
| ST 2110-30 Audio Input | Up to 8 streams per pipeline; up to 64 audio channels per stream; 16-bit or 24-bit; 48 kHz or 96 kHz synchronous; application dependent |
| ST 2110-30 Audio Output | Up to 12 streams per pipeline; up to 16 audio channels per stream; 16-bit or 24-bit; 48 kHz or 96 kHz synchronous; application dependent |
| ST 2110-40 Ancillary | Up to 16 input streams and up to 12 output streams, application dependent |
| Discovery and Control | NMOS IS-04 and IS-05 Tx/Rx; in-band and out-of-band; L2/L3 with SSM; IGMP v2/v3 |
| IP Clock | PTPv2 ST 2059-2 / IEEE 1588-2008; in-band only |
| ST 2110 Video Sampling | YCbCr 4:2:2, 10-bit |
| Video Codecs | H.264 AVC/MPEG-4; H.265 HEVC; H.262 MPEG-2; optional NDI; optional JPEG 2000 VSF TR-01; optional JPEG XS VSF TR-07 |
| Audio Codecs | AAC-LC; AAC-HE; AAC-HE v1/v2; AC3; E-AC3 input; Dolby E pass-through; MPEG-2 Audio; NDI uncompressed float; PCM; ST 2110-30 uncompressed audio |
| Metadata | SMPTE ST 2038; EIA-608/708; Line 21; metadata pass-through; SCTE-35/SCTE-104; H.264 subtitles; H.264/HEVC timecode; EPG input; ST 2110-40 |
| Containers and Protocols | HLS input/output; AVC-TS segments; Fragmented MP4; MPEG-TS; MPTS input; RTMP; RTMPS output; RTP; UDP; SRT with encryption; VSF TR-01; VSF TR-07 |
| Video Processing | Automatic color sampling based on I/O; crop/pad; color adjustment; deinterlacing; supported frame-rate conversion; logo insertion; resizing |
| Audio Processing | Channel remapping; gain; sample-rate conversion; up/down mixing; audio delay |
| Configuration and Monitoring | Local keyboard/mouse/monitor interface; remote browser; REST API; SNMP; NMOS; IPMI |
| Form Factor | 1RU turnkey system; 2x SFP28 cages; 2x 10GigE RJ45; DisplayPort and USB local interface |
| Dimensions | 17.2 x 16.9 x 1.7 in. (436.88 x 429.26 x 43.18 mm) |
| Weight | 18 lb. (8.2 kg) server only; 28 lb. (12.7 kg) in box |
| Power | 100-240 VAC, 50/60 Hz, dual redundant power supplies; 320W typical, 600W maximum |
| Operating Environment | 5 to 35 C operating; -40 to 60 C storage; 8-90% operating RH noncondensing; 5-95% nonoperating RH noncondensing |
| Hardware Warranty | Three years; extendable to five years with an active annual maintenance license |
What Is BRIDGE LIVE IP Used For?
BRIDGE LIVE IP is used to move video between uncompressed SMPTE ST 2110 infrastructure and compressed IP delivery workflows. Typical applications include REMI, contribution, live streaming, multi-site production, remote collaboration, and content distribution.
How Many ST 2110 Video Channels Are Supported?
The system supports up to four UHDp60 or sixteen HD ST 2110-20 receive and transmit channels. Actual channel count depends on format and application requirements.
Does the ST 2110 Gateway Support SRT?
Yes. SRT is supported with encryption, and the platform also supports SRT Network Bonding for redundant contribution paths. SRT can be used alongside MPEG-TS for internet-based backhaul and remote production.
Is NDI Encode and Decode Included?
NDI I/O requires an optional perpetual license. Once activated, it supports up to four 60p UHD or eight 60p HD NDI encode/decode channels to or from ST 2110, plus IP-to-NDI transcoding.
What Network Interfaces Handle ST 2110?
Two SFP28 cages support 10GigE or 25GigE media-network interfaces for ST 2110, PTP, and in-band control. SFP modules are purchased separately, while two additional 10GigE RJ45 ports handle compressed IP traffic and out-of-band functions.
What Warranty Covers the 1RU IP Gateway?
AJA provides a three-year hardware warranty. The hardware warranty can be extended to five years when the annual maintenance license is purchased and kept active.
