AJA Bridge Live 3G-8 1RU Turnkey System For Streaming And Transcoding 8 Bidirectional 3G-SDI

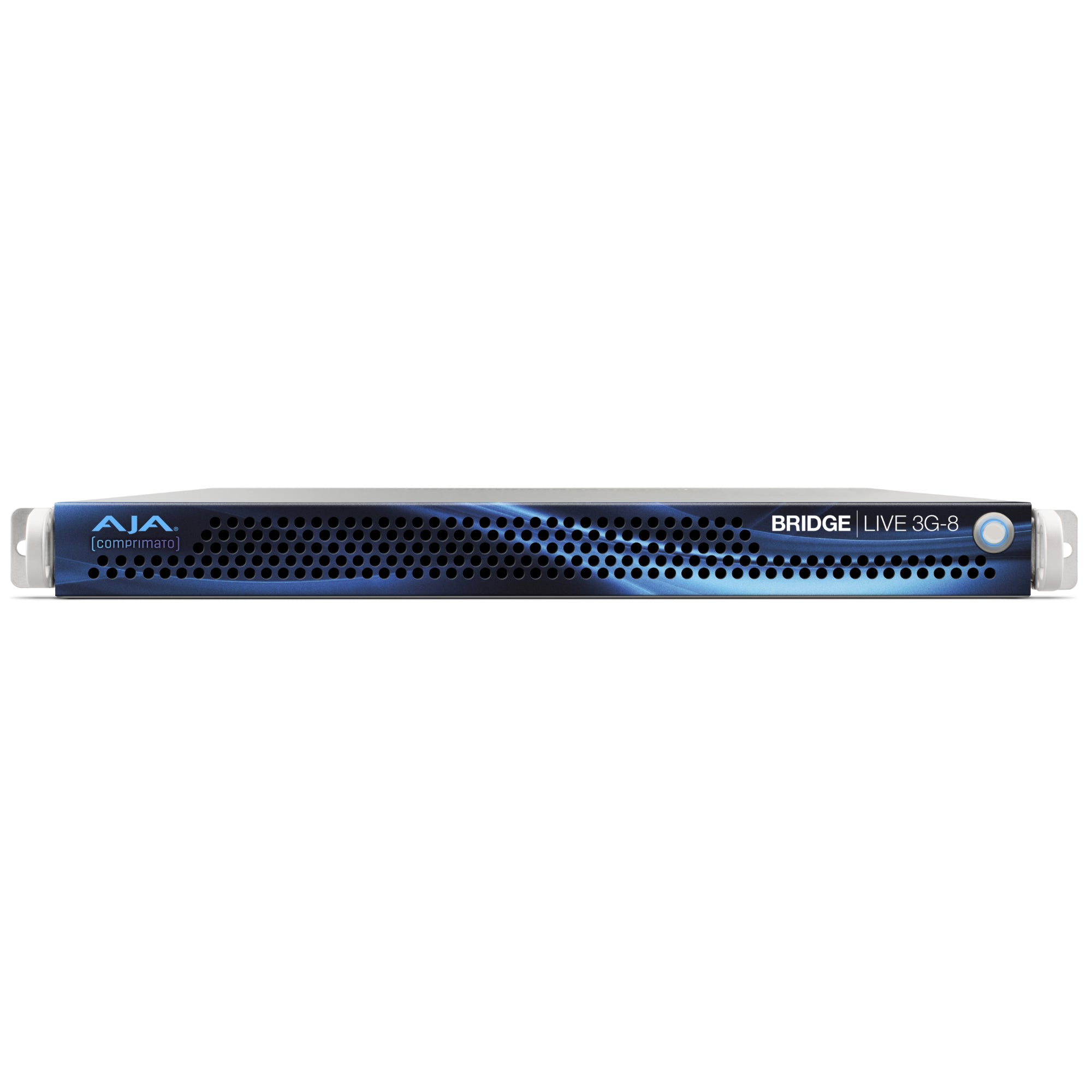

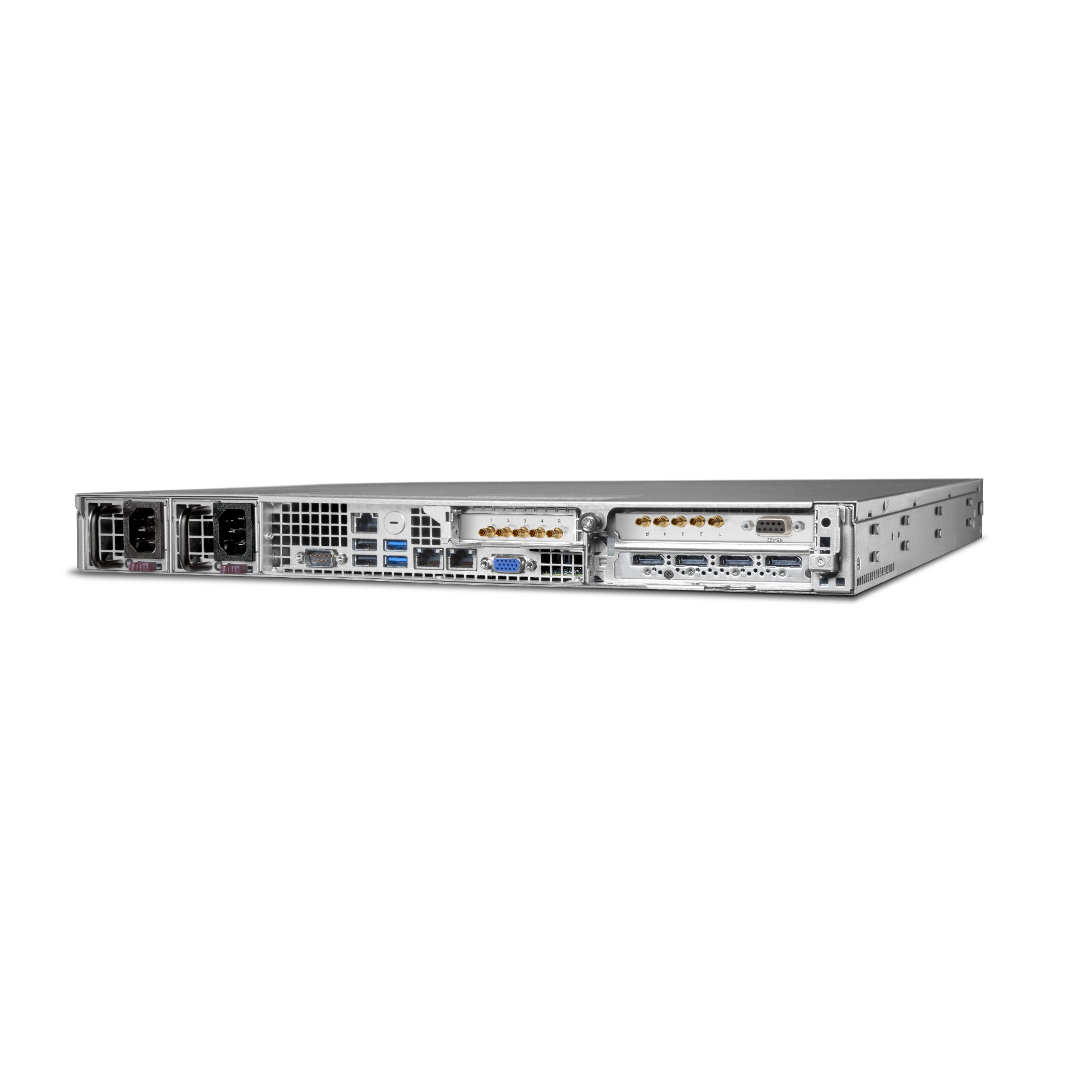

AJA Bridge Live 3G-8 1RU Turnkey System For Streaming And Transcoding 8 Bidirectional 3G-SDI is a rackmount multi-channel encoder, decoder, and IP transcoder designed for high-density broadcast workflows. Housed in a standard 1 RU chassis weighing 18.1 lb, it integrates 8x BNC (3G-SDI) bidirectional inputs/outputs alongside 4x DisplayPort monitor outputs. Built to handle up to 8 simultaneous streams across H.264, H.265, MPEG-2, and MJPEG codecs, it features dual 2x IEC C13/C14 power inputs supporting 100 to 240 VAC (190 W) for reliable rack operation.

Highlights

• 8-Channel Bidirectional 3G-SDI I/O supporting SMPTE 259M-C, 292M, 424M, ST 2081-10, and ST 2082-11 standards
• Multi-Format Encoding and Decoding for H.264, H.265, MPEG-2, and MJPEG across 8 simultaneous streams
• Broad IP Protocol Transport Support including SRT, NDI, RTMP, RTSP, HLS, TCP/IP, and UDP
• 4x DisplayPort Monitor Outputs for local monitoring and feed verification directly from the hardware
• Redundant Power Architecture powered via 2x IEC C13/C14 power inputs in a compact 1 RU form factor

Quick Specs & Uses

• Rack Form Factor: 1 RU

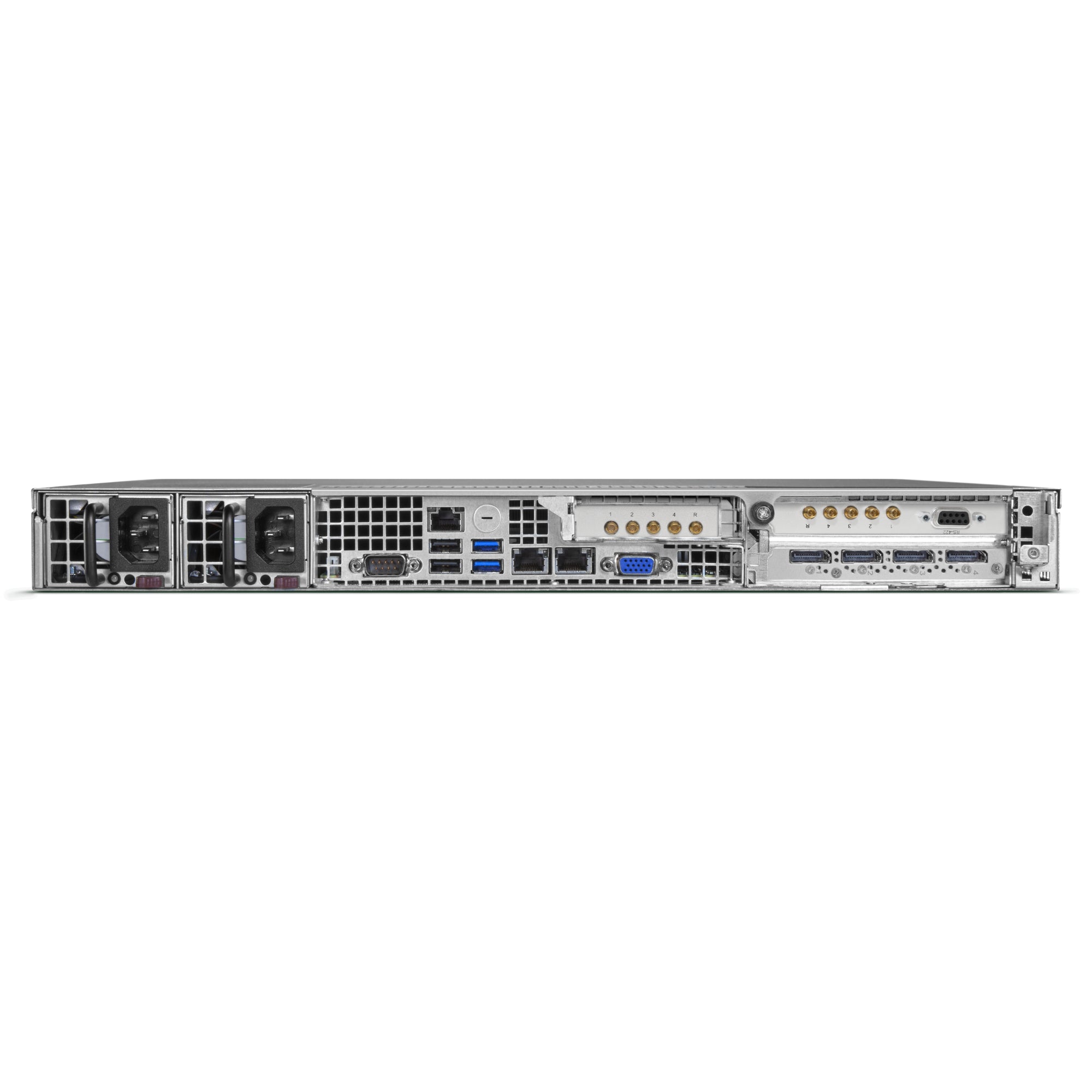

• Transmission I/O: 8x BNC (3G-SDI) Input/Output
• Monitor Outputs: 4x DisplayPort Monitor Output
• Simultaneous Streams: 8 Streams
• Video Encoding/Decoding Codecs: H.264, H.265, MPEG-2, MJPEG
• Supported Resolutions: 720 x 480 to 1920 x 1080
• Supported Frame Rates: 23.98, 24.00, 25, 29.97, 50, 59.94, 60.00 fps
• Video Standard Compliance: SMPTE 259M-C, 292M, 424M, ST 2081-10, ST 2082-11
• Transport Protocols: HLS, NDI, RTMP, RTSP, SRT, TCP/IP, UDP
• Wireless Transmission: No
• Power I/O: 2x IEC C13/C14 Input
• Power Supply / Consumption: 100 to 240 VAC (190 W)
• Operating Conditions: 41 to 95°F / 5 to 35°C at 8 to 90% Humidity
• Storage Conditions: -40 to 104°F / -40 to 40°C at 5 to 95% Humidity
• Unit Dimensions: 17.2 x 16.9 x 1.7" / 436.9 x 429.3 x 43.2 mm
• Unit Weight: 18.1 lb / 8.2 kg

Why It Helps

This turnkey server consolidates multi-channel encoding, decoding, and IP stream conversion into a single 1 RU footprint. Supporting bi-directional 3G-SDI along with major IP transport protocols like SRT, NDI, and RTMP, Bridge Live keeps live transmission pipelines streamlined without needing multiple standalone conversion boxes.

System Characteristics

• 8-Stream Processing Capability handles multiple simultaneous encoding/decoding jobs in 1080p resolution
• Comprehensive Protocol Compatibility bridges physical baseband SDI feeds to IP streaming standards like SRT, NDI, and RTMP
• Dual IEC Power Connections provides power supply redundancy for mission-critical rack environments

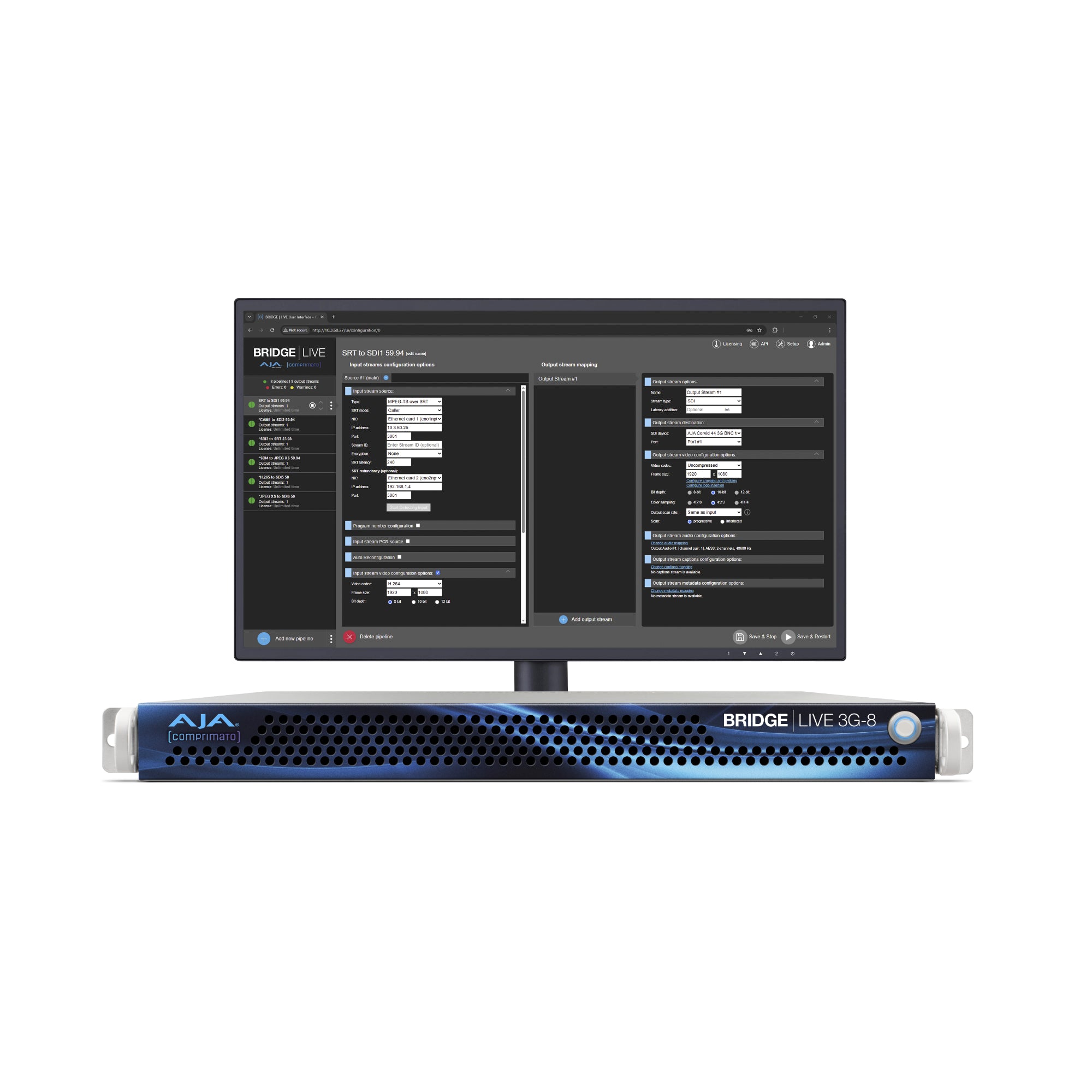

• Quad DisplayPort Out allows dedicated local screen routing for operational status monitoring
• Compact 1 RU Chassis saves high-density rack space while housing multi-codec processing power

What’s In The Box

1 x AJA Bridge Live 3G-8 1RU Turnkey System For Streaming And Transcoding 8 Bidirectional 3G-SDI
