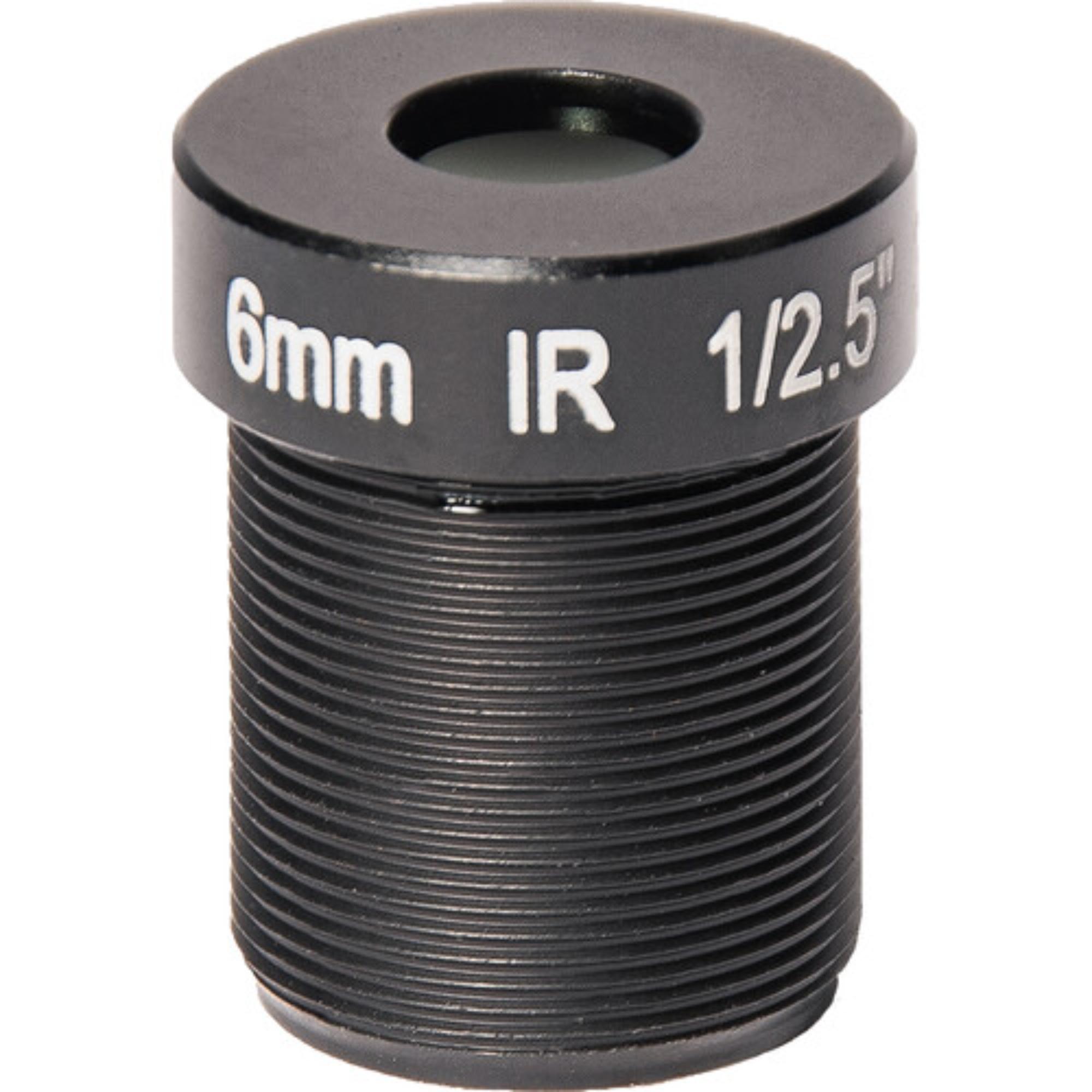

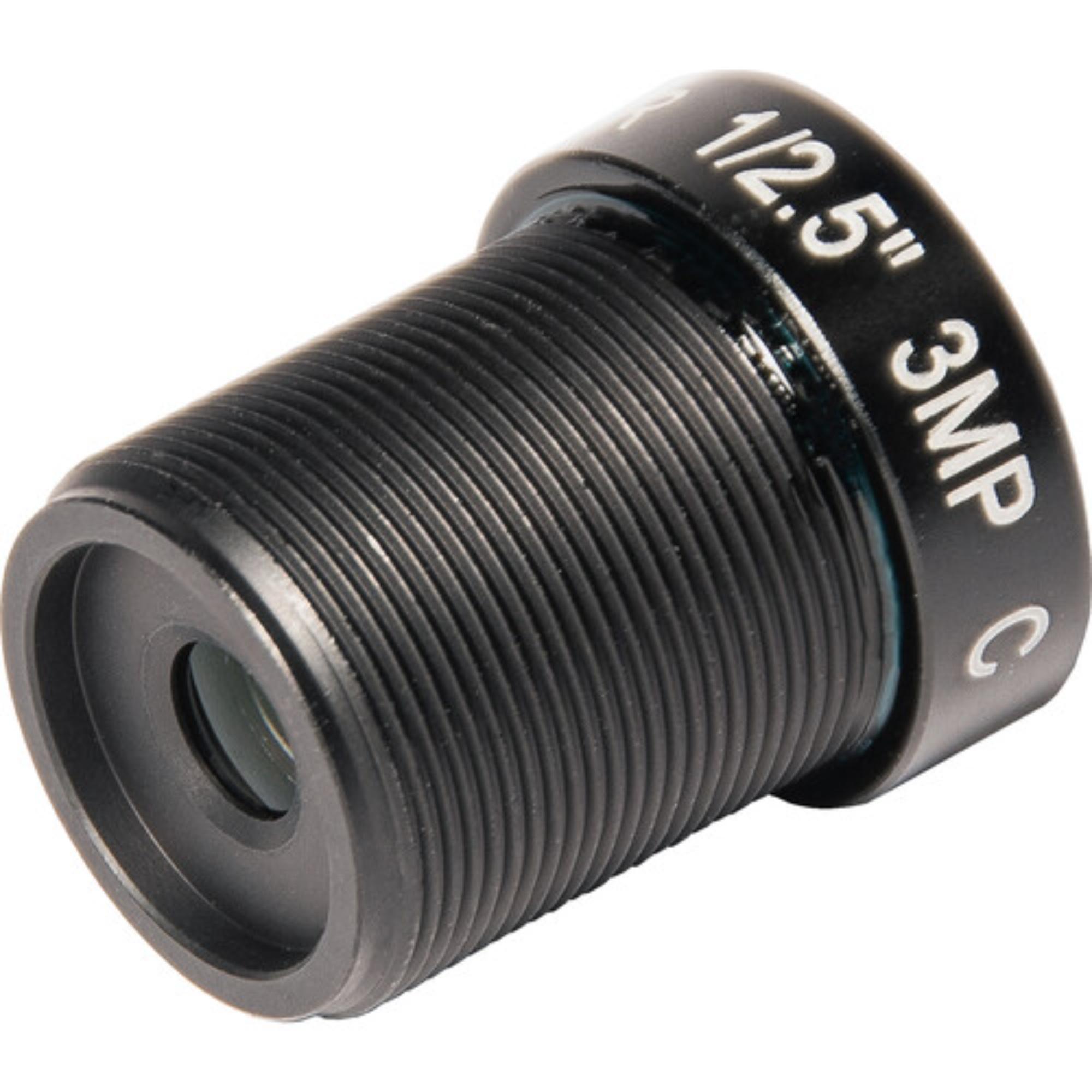

AIDA Imaging 6mm f/2.4 3MP M12 Lens for AIDA HD-NDI-MINI

AIDA Imaging 6mm f/2.4 3MP M12 Lens for AIDA HD-NDI-MINI is built for situations where the stock ultra-wide lens is simply too wide for the shot. Designed as an alternative to the camera’s preinstalled 3.2mm fisheye lens, this 6mm M12 lens delivers a tighter field of view and a more controlled image, making it a practical choice when cleaner framing matters more than maximum room coverage.

Highlights

• Built for the AIDA HD-NDI-MINI and compatible with other M12 cameras
• 6mm focal length for tighter framing than the stock fisheye lens
• f/2.4 maximum aperture with manual focus and fixed iris
• IR corrected for improved focus consistency in IR-sensitive environments
• 60° horizontal field of view on 1/2.5-inch sensors

Quick Specs & Uses

• Lens mount: M12
• Sensor compatibility: 1/2.5", 1/3" (3 MP)
• Focal length: 6mm
• Back focal length: 8.1mm
• Maximum aperture: f/2.4
• Angle of view: 60° horizontal on 1/2.5" sensors, 52° horizontal on 1/3" sensors
• Focus type: manual focus
• Iris type: fixed
• Distortion: -20%
• Operating conditions: -20 to 60°C

Why It Helps

Compact cameras often ship with very wide lenses because they are easy to deploy in tight spaces. The tradeoff is that the image can feel exaggerated at the edges and less intentional in framing. This lens helps by narrowing the view and giving the camera a more controlled shot shape. In practical terms, it is a simple way to make the HD-NDI-MINI feel more focused without changing the camera itself.

System Characteristics

• Tighter field of view helps produce a more controlled image
• Alternative to the stock fisheye lens for users who want less exaggerated wide-angle framing
• M12 mount design keeps it aligned with compact camera ecosystems
• IR correction supports more consistent focus behavior under varying light conditions
• Very lightweight construction fits small-camera installations easily
