Product Highlights
- Controls up to seven cameras
- VISCA over IP and Serial VISCA
- PoE+ single-cable power
- Custom third-party VISCA commands
AIDA Imaging RCP-CORE VISCA Camera Shading Controller PoE Plus
- SKU:
- AIDA-RCP-CORE
- MPN:
- RCP-CORE
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The AIDA Imaging RCP-CORE is a camera color shading controller built for hands-on VISCA camera matching across live production, broadcast, and fixed-install workflows. It controls up to seven cameras over Serial VISCA or VISCA over IP, with direct access to exposure, white balance, and other image parameters. Custom VISCA commands extend control to compatible third-party cameras, while PoE+ keeps network deployments simple. One panel gives operators a faster path to consistent pictures across a multi-camera production.

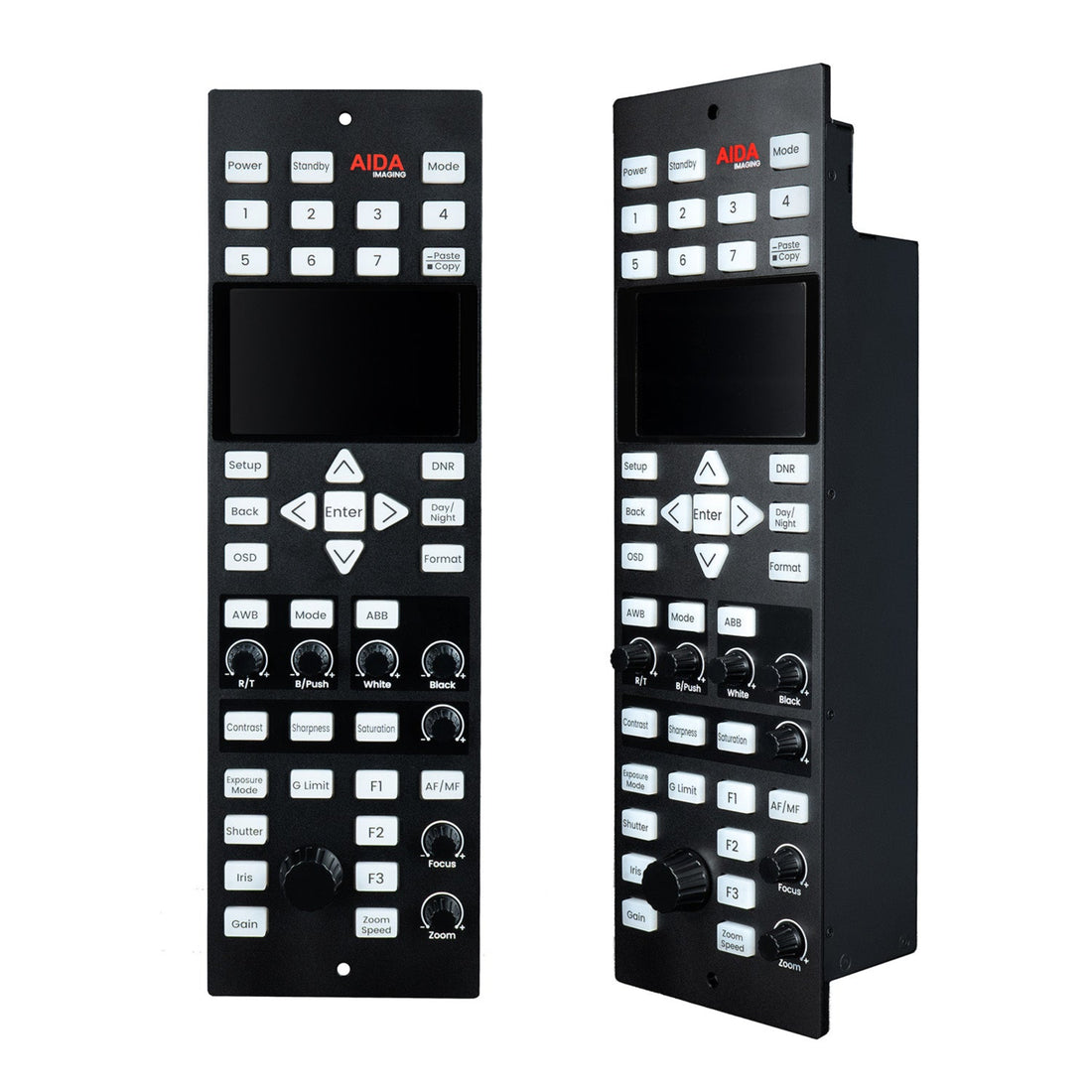

Multi-Camera Shading Controller for Live Production
Multi-camera shading becomes more practical when one operator can move between as many as seven connected cameras from the same control surface. The RCP-CORE centralizes image adjustments so a shader can work through a camera fleet without opening separate browser sessions for every unit. That is especially useful in sports broadcasting, studio production, and venue production where camera matching has to happen quickly.

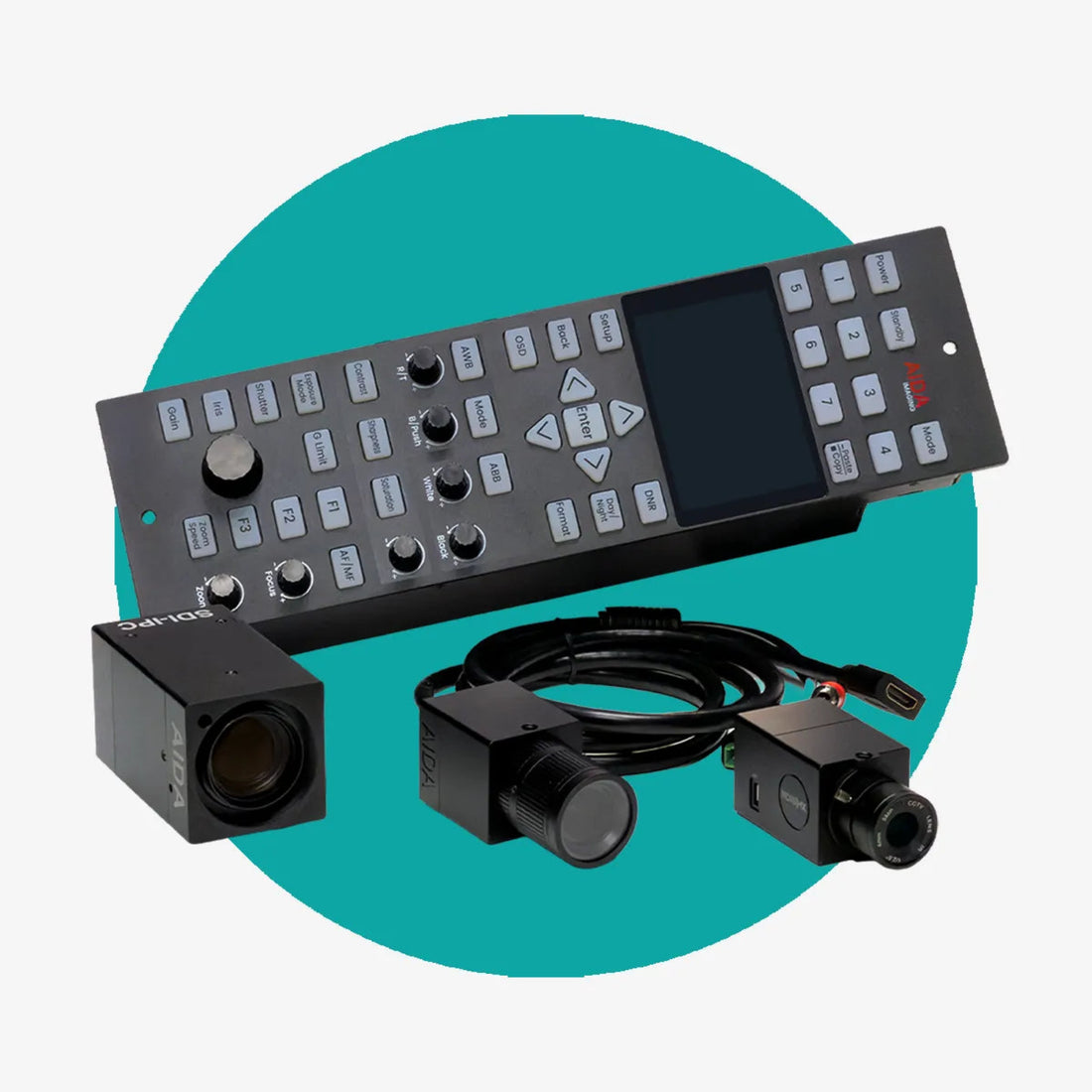

AIDA Camera Shading Control from POV to PTZ
AIDA camera shading control gives operators direct access to image parameters across compatible POV and PTZ cameras. Physical buttons and knobs make exposure and white-balance changes faster to reach during live broadcast than digging through individual camera menus. For multi-site production or a house of worship, that helps maintain a more consistent look as lighting changes during the program.
PoE+ Remote Camera Controller for Fixed Installs
PoE+ remote camera control reduces local power cabling by allowing the panel to receive power through an IEEE 802.3at network connection. AIDA also provides a 12VDC ±10% power option when a conventional supply is preferred. The 14 × 4 × 3 in chassis and 13 in mounting-hole spacing suit control-room, education AV, and permanent production environments where equipment layout matters.
Exposure and White Balance Camera Control
Exposure and white balance camera control puts the adjustments operators reach for most often directly on the panel. Instead of treating each camera as an isolated device, the operator can work through a production as a matched system and correct differences as scenes change. That is valuable for corporate communications, live events, and broadcast workflows where mismatched cameras are immediately visible on program output.
Third-Party VISCA Camera Controller Support
Third-party VISCA camera controller support is based on compatible VISCA commands rather than a closed AIDA-only control path. The web interface lets operators customize individual commands for each camera, giving integrators a way to adapt the panel to mixed-brand systems that communicate through VISCA over IP or Serial VISCA.

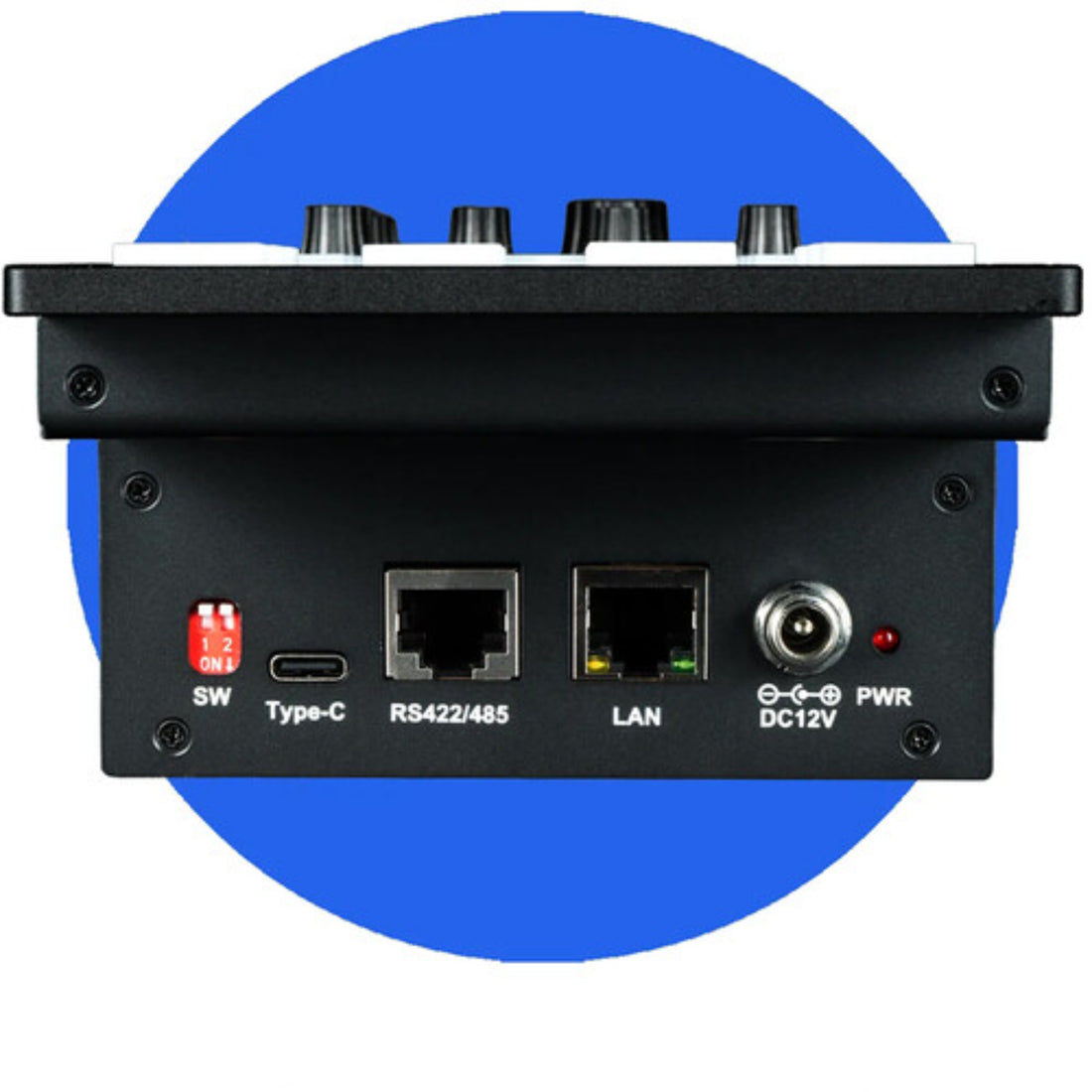

Control interfaces include RS-422, RS485, and RJ45. That makes the panel useful when a remote production or fixed install combines network-controlled cameras with serial devices in the same technical environment.
Control Protocol
Serial VISCA · VISCA over IP
Control Interface
RS-422 · RS485 · RJ45
Camera Capacity
Up to 7 cameras
Third-Party Support
Based on VISCA commands

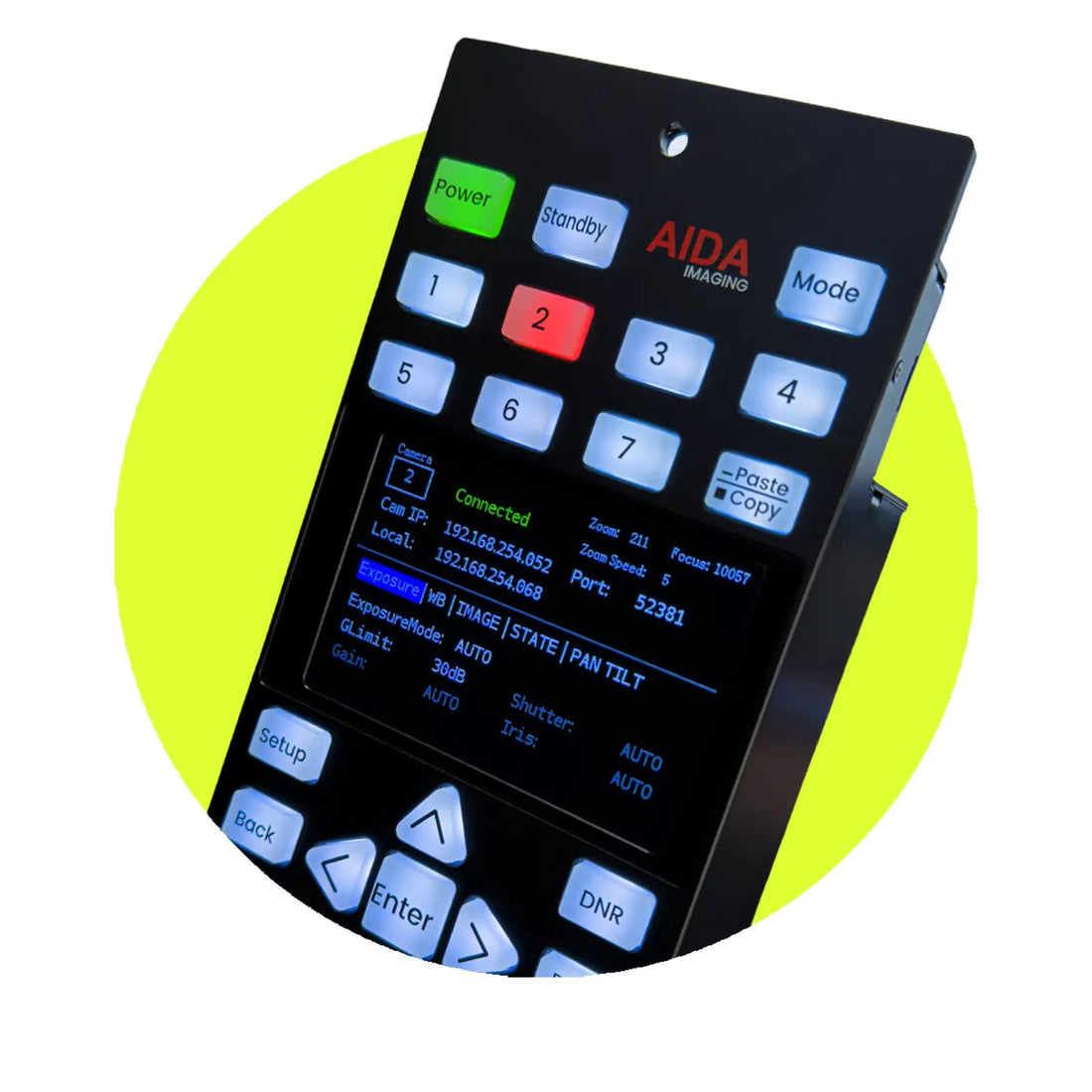

LCD Camera Monitoring for Broadcast Shading
The 4 in diagonal LCD gives the shader a local view of current camera settings while the controller queries the selected camera. In a live broadcast control position, that helps the operator stay aware of parameter changes made elsewhere in the workflow.

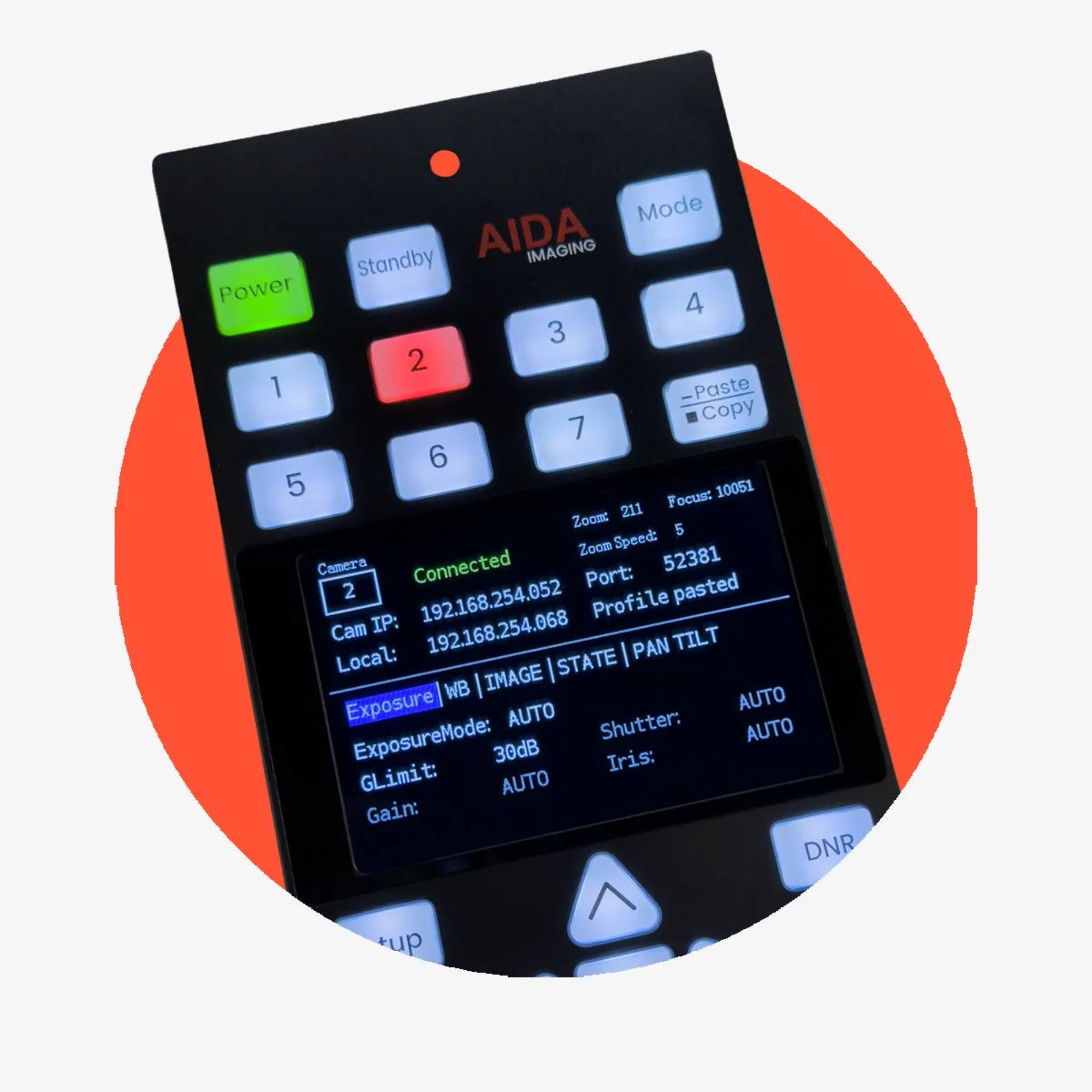

Copy-and-Paste Camera Matching for Multi-Camera Production
Copy-and-paste camera matching lets an operator copy the current profile and apply it to another camera. For church streaming, lecture capture, or repeatable event lighting, that can reduce the number of individual adjustments needed when cameras should begin from the same image setup.
PoE+ Power for Education AV and Corporate Installations
PoE+ power is useful when the camera-control position already has managed network infrastructure and minimizing local power supplies is a priority. A 12VDC ±10% input provides a second deployment path for corporate AV, classrooms, and permanent control rooms.
Broadcast Engineers
Centralize shading adjustments across multiple cameras while retaining serial and IP control options.
Live Production Teams
Match cameras quickly when lighting or scene conditions change during a show.
Houses of Worship
Keep sanctuary and stage cameras visually consistent across recurring services and streams.
Education AV
Use PoE+ and IP control in lecture capture studios, classrooms, and campus production spaces.
Corporate Communications
Standardize camera appearance in boardrooms, town halls, and internal studio environments.
AV Integrators
Deploy RS-422, RS485, RJ45, VISCA over IP, and PoE+ within mixed control architectures.
AIDA Imaging Support
New AIDA products and accessories purchased by the original owner from an authorized reseller carry a two-year manufacturer warranty from the original purchase date, subject to AIDA warranty terms. Coremicro can also help confirm controller compatibility before deployment.
| Specification | Detail |
|---|---|
| Control Protocol | Serial VISCA, VISCA over IP |
| Control Interface | RS-422/RS485/RJ45 |
| Number of Cameras Supported | Up to 7 |
| Third-Party Camera Support | Based on VISCA commands |
| Voltage | 12VDC ±10% |
| PoE+ Standard | PoE+ (IEEE 802.3at) |
| Dimensions | 14 × 4 × 3 in / 35.5 × 10.2 × 7.6 cm |
| Mounting Hole Distance | 13 in / 33 cm |
| LCD Screen Size | 4 in diagonal |
| Weight | 3.4 lb / 1.5 kg |
Put the RCP-CORE Camera Controller in Your Workflow
Coremicro is an authorized AIDA Imaging dealer for professional camera control and production equipment. Contact us for current RCP-CORE price, availability, and compatibility with your AIDA or third-party VISCA camera system.
