Product Highlights
- Weatherproof PTZ cable protection
- Fits WM-PTZ-JTYPE wall mount
- 165 × 115 × 90mm cavity
- Includes waterproof cable connections
AIDA Imaging JBOX-PTZWP Weatherproof Junction Box for PTZ4KWP-NDI3-X30
- SKU:
- AIDA-JB-PTZWP
- MPN:
- JB-PTZWP
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

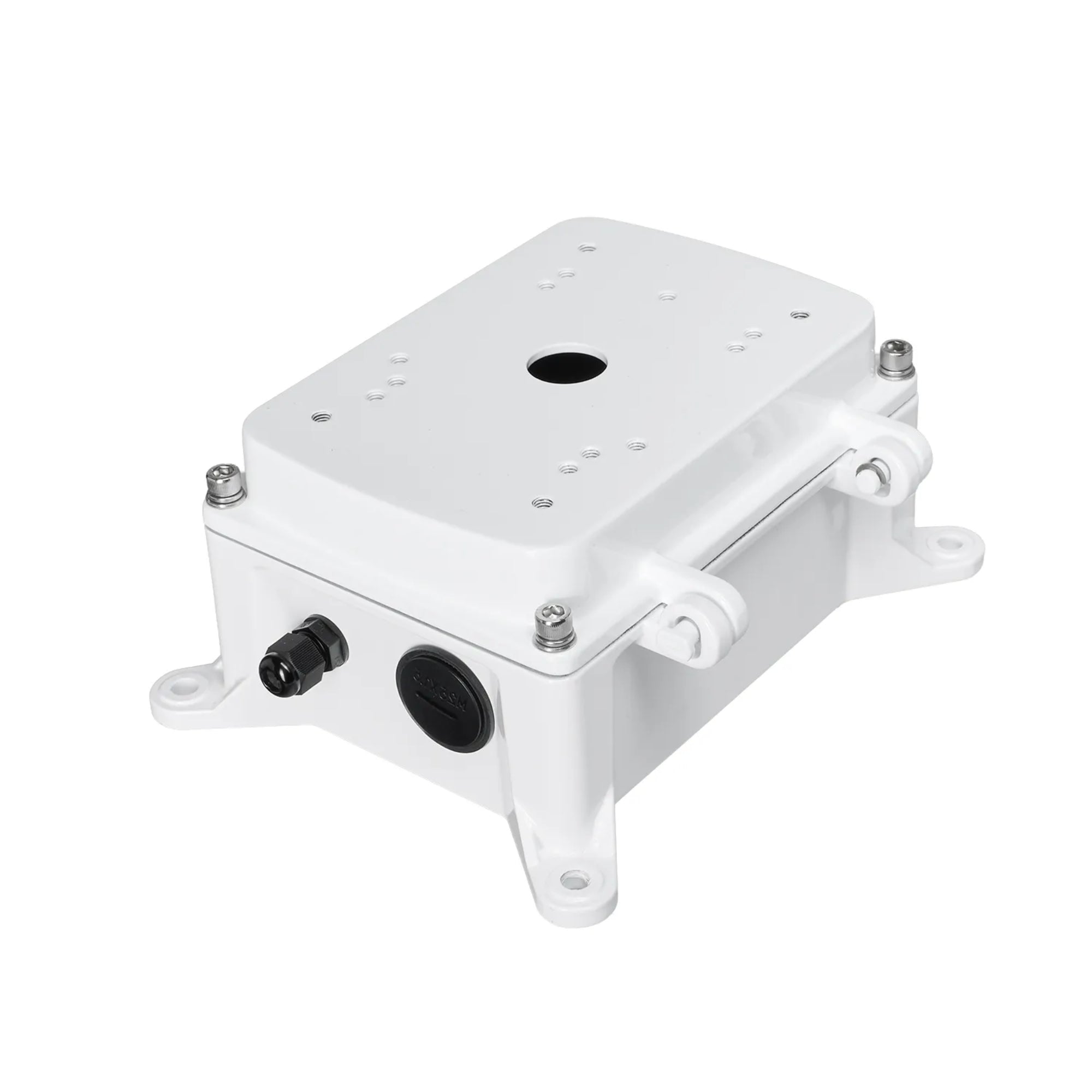

AIDA Imaging JBOX-PTZWP is a weatherproof PTZ camera junction box built to protect cabling for the PTZ4KWP-NDI3-X30 in outdoor and exposed fixed-install applications. It integrates with the WM-PTZ-JTYPE wall mount to keep camera connections organized inside a protected enclosure. For live production, venue production, and permanent AV installation, it gives installers a purpose-built place to manage the cable transition at the camera mount.
Weatherproof PTZ Camera Junction Box
A weatherproof PTZ camera junction box gives exterior camera cabling a dedicated enclosure at the mounting point. The design is intended for cabling to the PTZ4KWP-NDI3-X30, helping installers keep connection transitions protected from outdoor exposure. No unverified IP rating is assumed.
WM-PTZ-JTYPE Compatible Junction Box

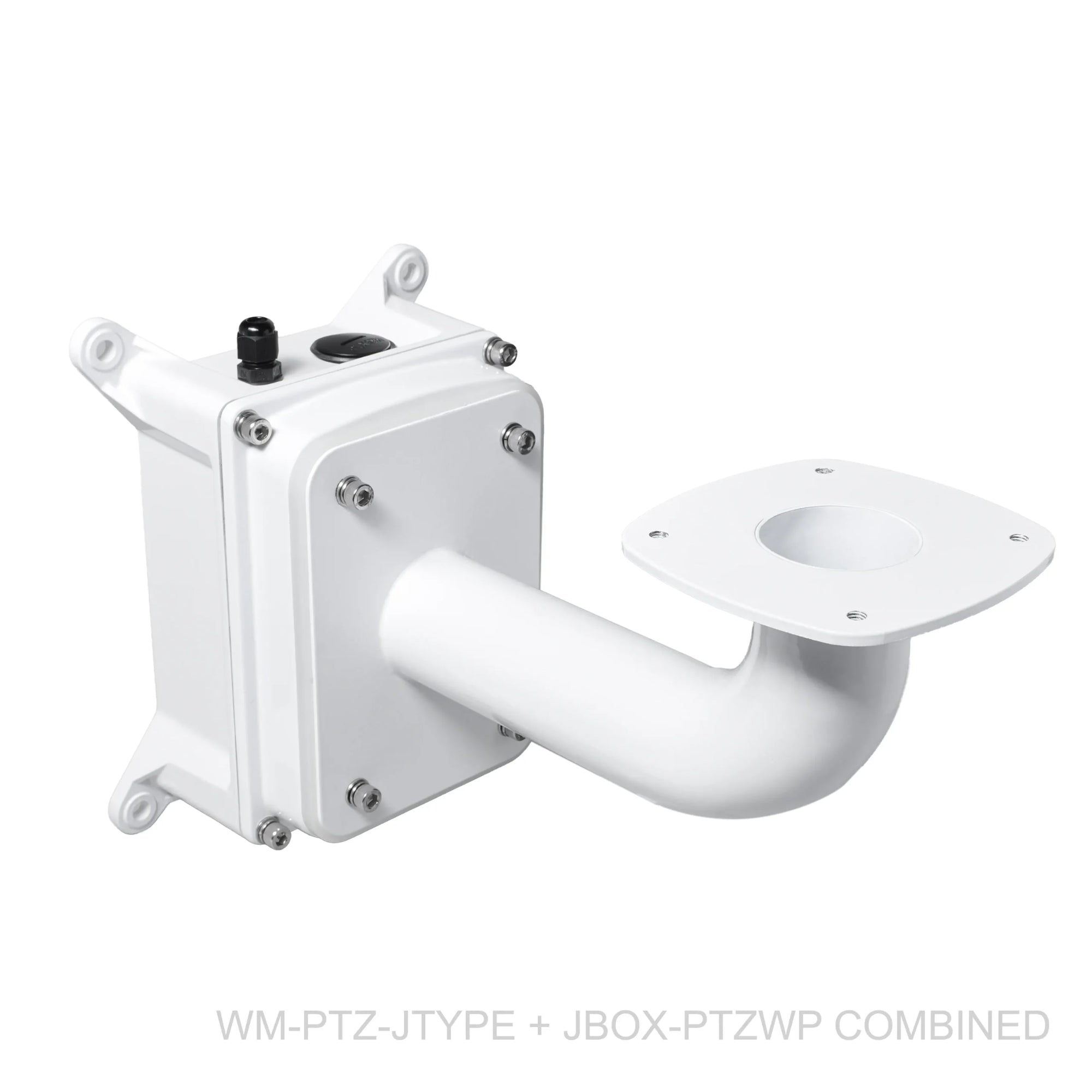

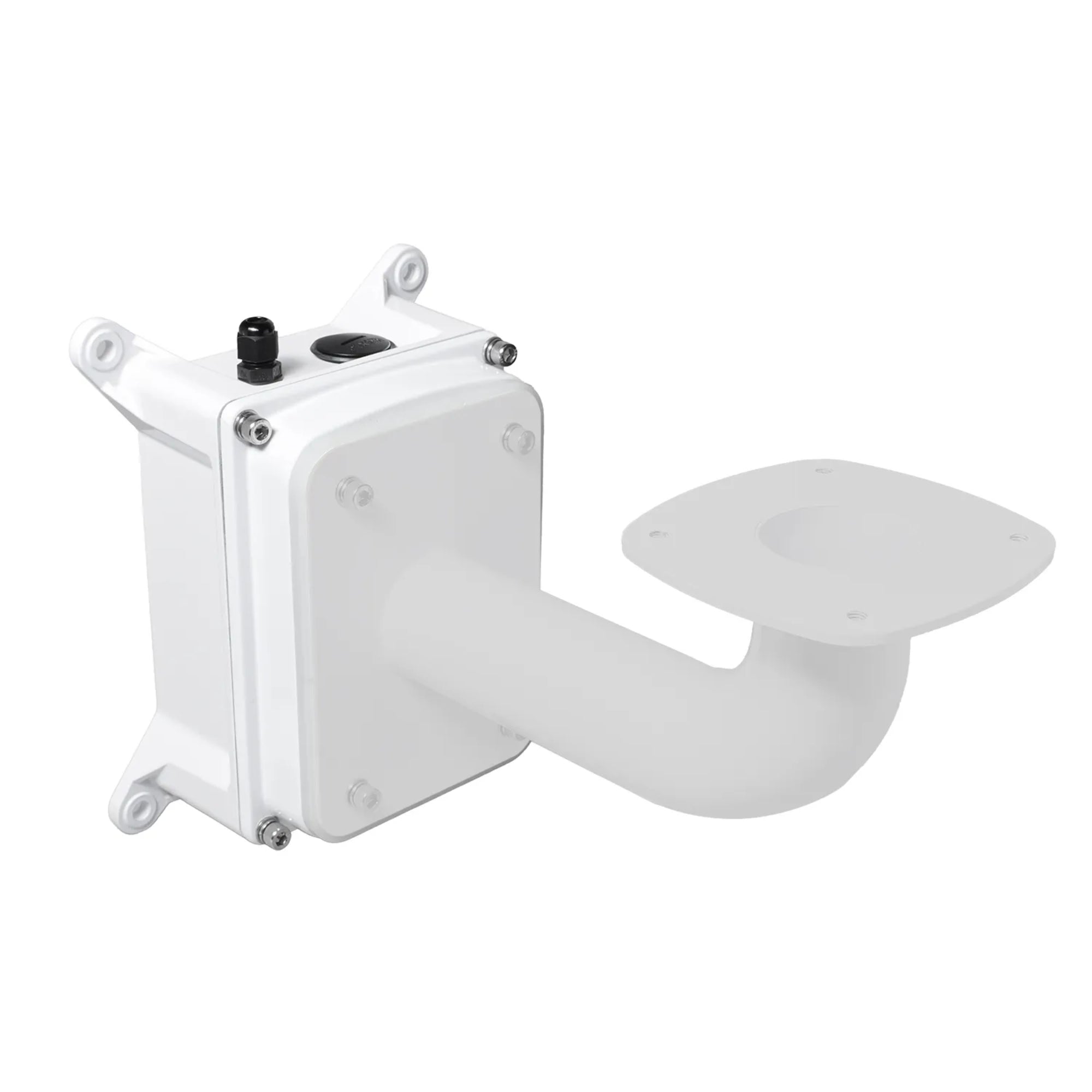

The WM-PTZ-JTYPE compatible junction box is designed to integrate with AIDA's 90-degree J-pipe wall mount. That pairing gives installers a coordinated mounting and cable-management path for outdoor PTZ installations. The wall mount is a companion accessory and is not listed as included with this junction box.
Outdoor PTZ Cable Management Space
Outdoor PTZ cable management depends on usable service space behind the camera. The internal cavity measures 165 × 115 × 90 mm, giving installers room to arrange cable transitions and connections inside the enclosure. The assembled outer profile, including connectors, measures 235 × 180 × 135 mm.
Complete Weatherproof PTZ Junction Box Hardware
The weatherproof PTZ junction box hardware package includes the enclosure, an M25x1.5 screw-in plug with waterproof connection, a PG7 screw-in plug with waterproof connection, a CRV5.0MM L-hex key, M8x80 expansion screws specified for a 10 mm drill hole, and four HM6x20 hex socket head cap screws. The supplied components cover the enclosure-side hardware documented by AIDA for installation and cable entry.
PTZ Junction Box Dimensions for Fixed Install
PTZ junction box dimensions matter when planning wall clearance, cable bend space, and service access. AIDA lists the fully assembled outer profile, including connectors, at 9.25 × 7.09 × 5.31 inches, or 235 × 180 × 135 mm. The inside cavity is 4.53 × 6.50 × 3.54 inches, or 165 × 115 × 90 mm.
Live Event Integrators
Use it where outdoor PTZ positions need cleaner cable transitions and serviceable connection space for live events.
House of Worship
Useful for exterior or exposed PTZ positions supporting worship streaming and campus video systems.
Sports Broadcasting
A practical fit for fixed outdoor camera positions around fields, courts, and venue production areas.
Education AV
Supports permanent PTZ installations for campuses, athletics, lecture capture, and outdoor event coverage.
Corporate Communications
Helps AV teams standardize weather-exposed PTZ mounting points used for corporate events and facility video.
Government Broadcast
Fits fixed-install camera systems where organized outdoor cabling and maintainable enclosure access are priorities.
AIDA Imaging Support
AIDA states a two-year warranty for new products and accessories purchased by the original owner or user from an authorized reseller, distributor, or AIDA's online store. Warranty coverage begins on the original purchase date and remains subject to AIDA's published terms and exclusions.
| Specification | Detail |
|---|---|
| Manufacturer Model | JBOX-PTZWP |
| Product Description | Weatherproof rated junction box for cabling to the PTZ4KWP-NDI3-X30 |
| Compatible Camera | PTZ4KWP-NDI3-X30 |
| Companion Wall Mount | WM-PTZ-JTYPE |
| Fully Assembled Outer Profile | 9.25 × 7.09 × 5.31 in / 235 × 180 × 135 mm, including connectors |
| Inside Cavity Space | 4.53 × 6.50 × 3.54 in / 165 × 115 × 90 mm |
| Included Screw-In Plug 1 | M25x1.5 with waterproof connection |
| Included Screw-In Plug 2 | PG7 with waterproof connection |
| Included Hex Key | CRV5.0MM L-hex key |
| Included Expansion Screws | M8x80, with 10 mm drill bit specified for hole |
| Included Cap Screws | 4 × HM6x20 hex socket head cap screws |
Install the AIDA Imaging JBOX-PTZWP with Confidence
Coremicro is an authorized AIDA Imaging dealer for professional PTZ camera accessories used across broadcast, live production, education AV, and fixed-install workflows. Contact our team to confirm camera, wall-mount, and installation compatibility for your project.
Talk to a SpecialistSpecifications
