AIDA Imaging HD3G-NDI-200 Full HD NDI|HX/IP/SRT/3G-SDI PoE & IP Control POV Camera

AIDA Imaging HD3G-NDI-200 Full HD NDI|HX/IP/SRT/3G-SDI PoE & IP Control POV Camera is built for systems that need to bridge traditional SDI infrastructure and modern IP workflows without turning the install into a compromise. With 3G-SDI output, NDI|HX, IP streaming, PoE, and a C/CS lens platform, it gives you a practical way to support hybrid production environments in one compact camera body.

Highlights

• 3G-SDI and NDI|HX/IP connectivity for hybrid workflow support
• Captures up to 1080p60 with a 1/2.8" progressive CMOS sensor

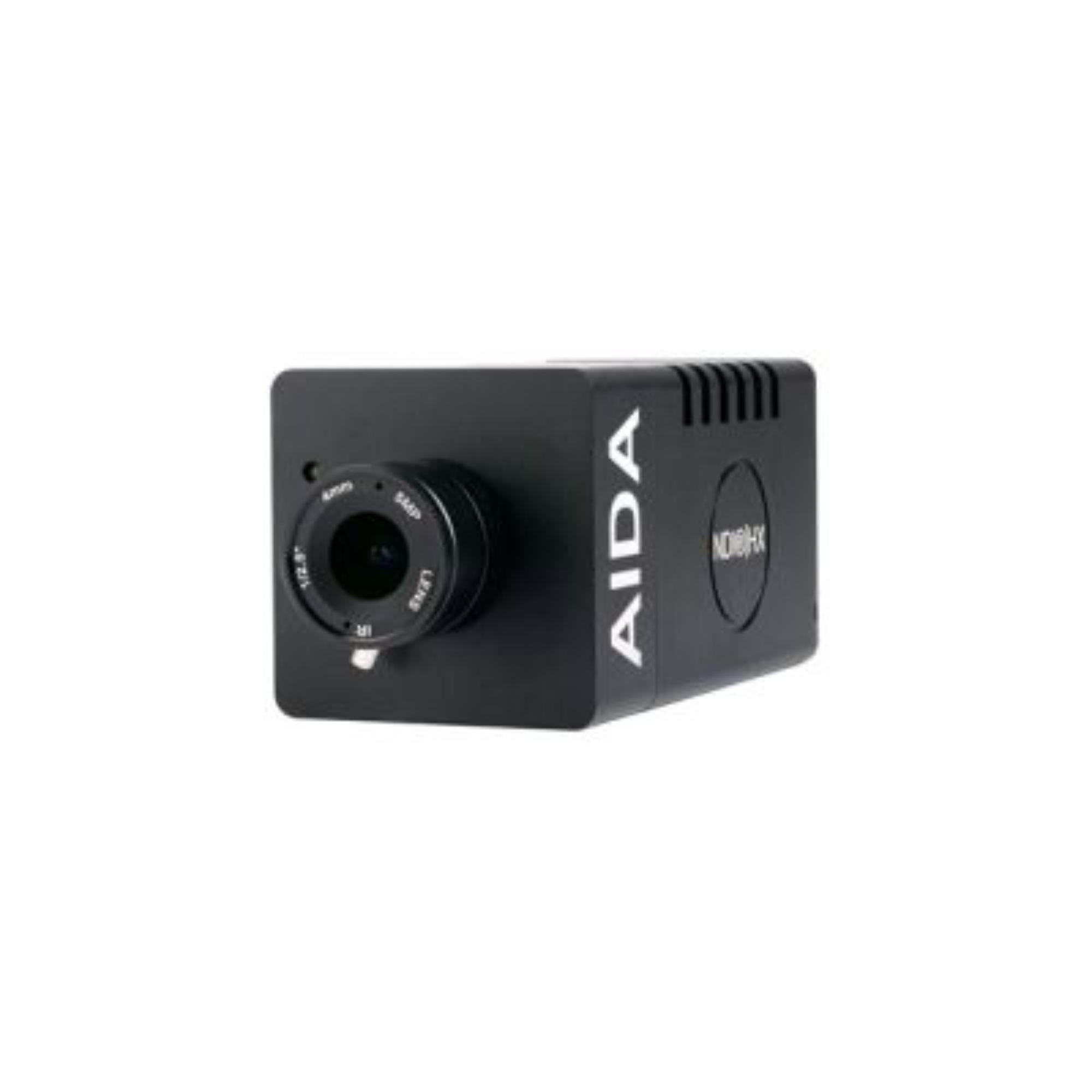

• C/CS-mount 4mm HD lens included for flexible fixed-position use
• PoE built in with additional 9 to 15 VDC power support
• VISCA RS485 and VISCA over IP for structured control integration

Quick Specs & Uses

• Sensor: 1/2.8" progressive CMOS
• Effective pixels: 1920 x 1080
• Resolution support: 1080p, 1080i, 720p
• IP streaming rates: 1920 x 1080, 1280 x 720, 1024 x 576, 620 x 360 at 3 to 60 fps
• Color space: 4:2:2 (YCbCr) 10-bit

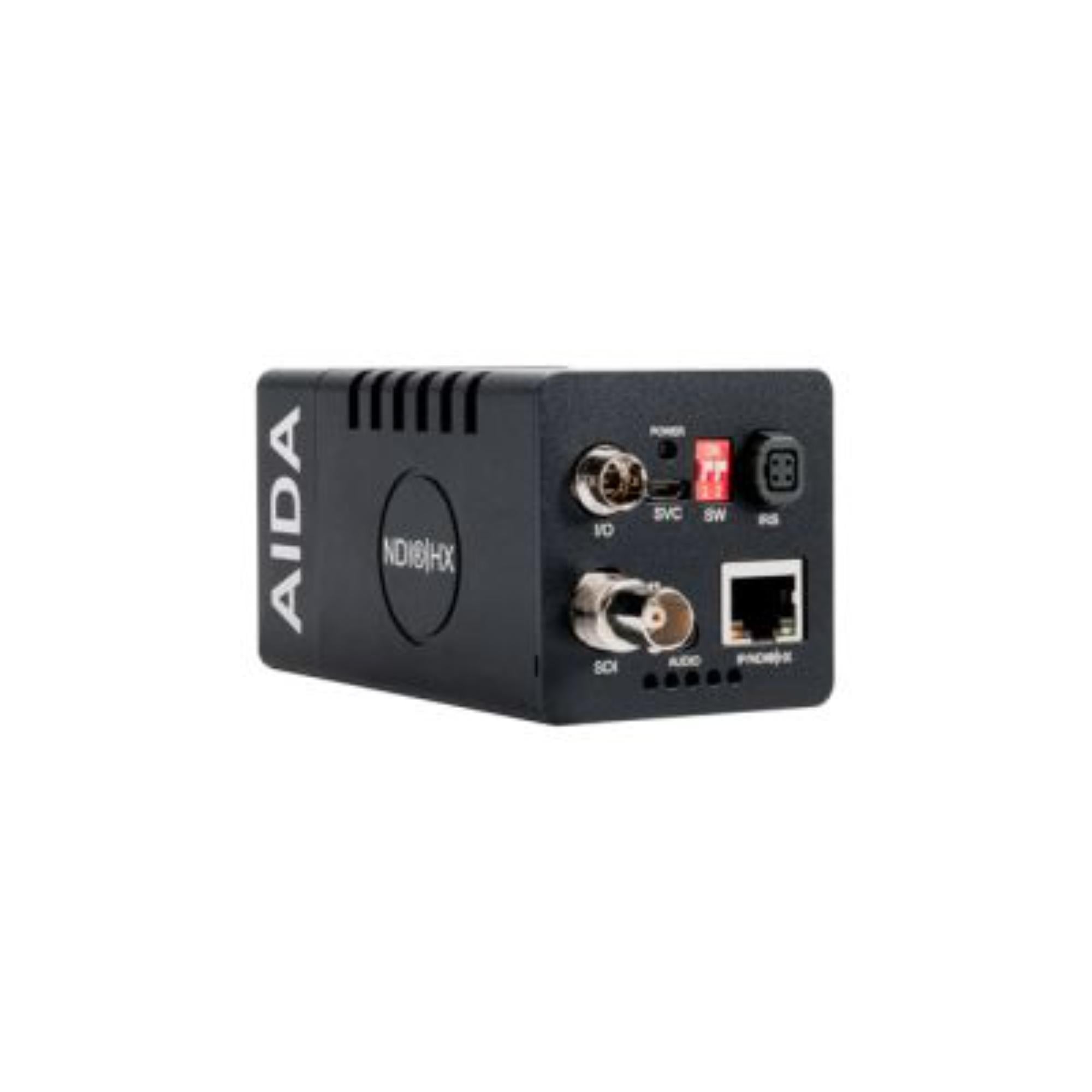

• Video output: 1 x BNC (3G-SDI)
• Audio input: 1 x 3.5 mm TRS input
• Network I/O: 1 x RJ45
• Streaming: RTSP / RTMP
• Control: OSD button or Web UI, VISCA RS485, VISCA over IP

Why It Helps

Not every facility moves from SDI to IP all at once. This camera helps because it gives you a compact way to support both worlds at the same time. One side of the workflow can stay on SDI, while the other side takes advantage of NDI|HX and IP streaming. That makes the camera especially useful in systems that are evolving gradually instead of being replaced all at once.

System Characteristics

• Hybrid SDI and IP design supports transition-friendly workflows
• PoE support helps simplify installation and reduce cable clutter
• C/CS lens platform offers more flexibility than a fully fixed-lens design
• VISCA over IP and RS485 control improve compatibility with managed systems
• Compact body with dual mounting threads makes fixed-position installation easier

What’s In The Box

Please refer to the Specifications tab for the exact included items.
