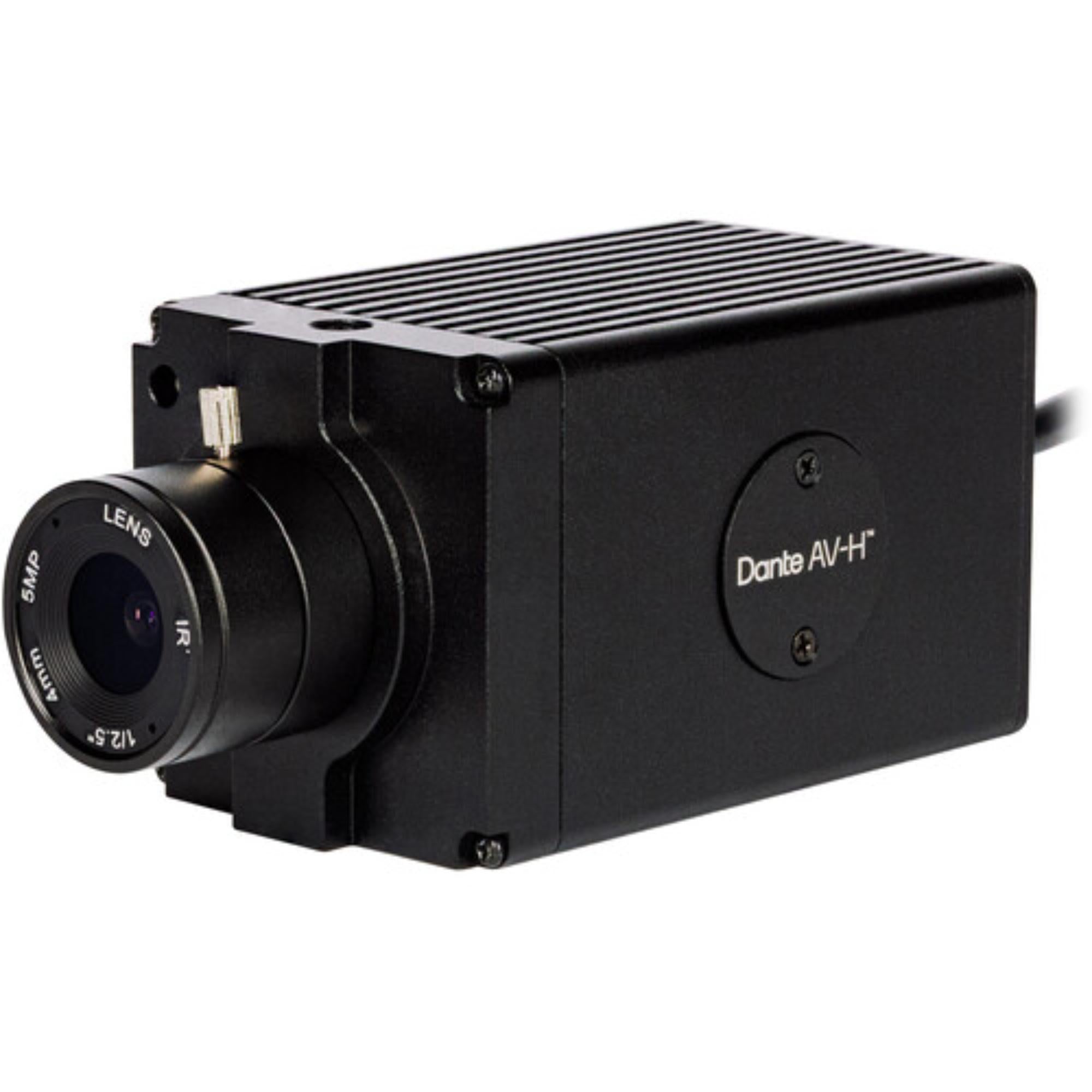

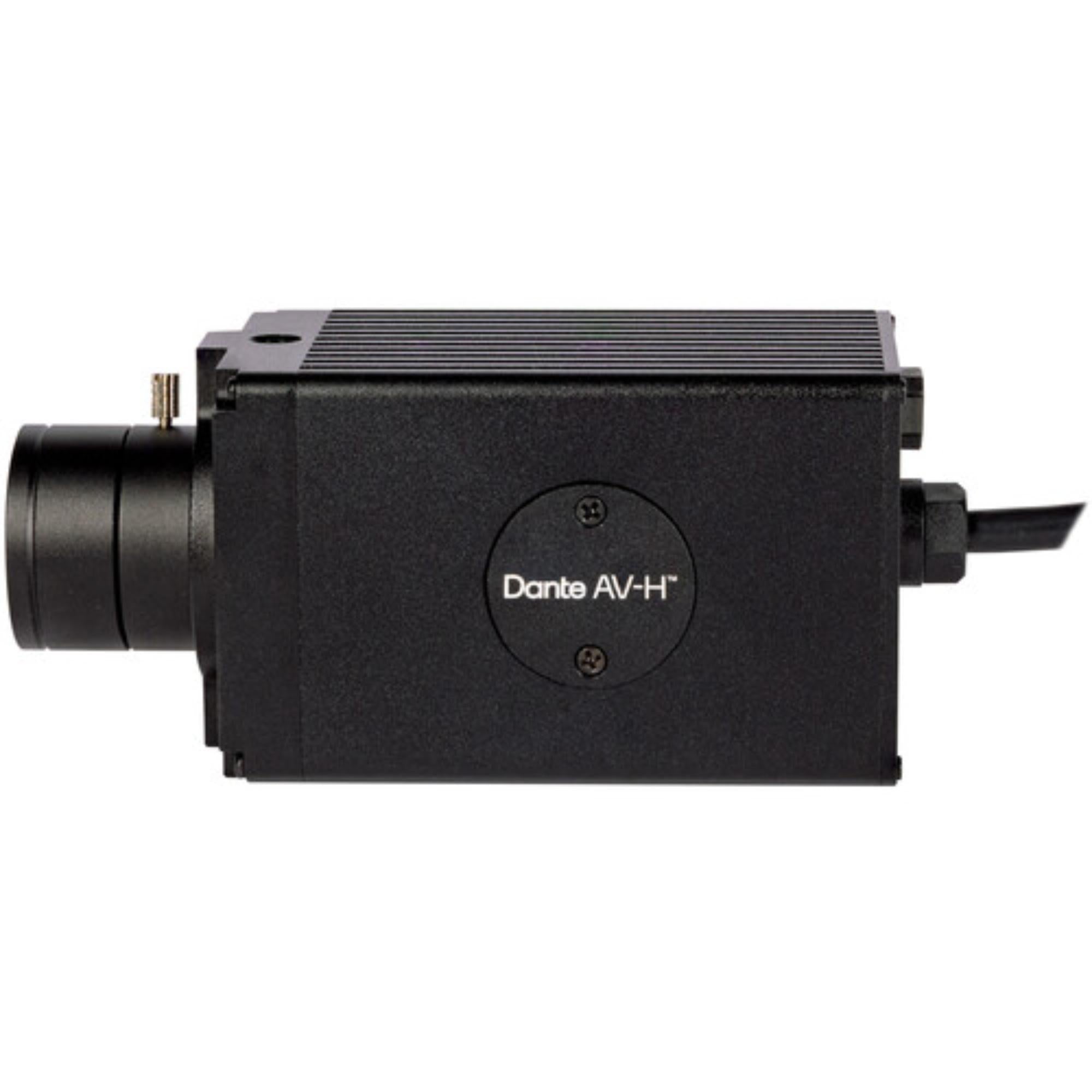

AIDA Imaging HD-AVH-100A Full HD Dante AV-H POV Camera

AIDA Imaging HD-AVH-100A Full HD Dante AV-H POV Camera is built for installations where the camera needs to stay compact while still fitting cleanly into a managed AV system. With Dante AV-H, HDMI, and IP outputs, plus full VISCA over IP control, it gives you a practical way to add fixed-position camera coverage to networked AV environments without relying on a simpler, less flexible camera platform.

Highlights

• 1/2.8" progressive CMOS sensor with support up to 1080p60
• Dante AV-H, HDMI, and IP outputs for broader workflow compatibility
• 5MP 4mm CS-mount lens with a 72° field of view
• Full VISCA over IP control with additional Serial VISCA and RS-485 support
• Compact box-style design with 2 x 1/4"-20 mounting points

Quick Specs & Uses

• Sensor: 1/2.8" progressive CMOS
• Effective pixels: 1920 x 1080
• Resolution support: 1080p, 1080i, 720p
• Color space: 4:2:2 YCC 10-bit
• Minimum illumination: 0.2 lux day / 0.1 lux night
• Lens: 5MP 4mm CS mount
• Field of view: 72°
• Video outputs: proprietary output, HDMI output, RJ45 output
• Audio input: 1 x 3.5 mm line input
• Control: Serial VISCA, VISCA over IP, RS-485, RJ45

Why It Helps

Some compact cameras work fine as simple video sources, but installed AV systems usually need more than that. This model helps by combining Full HD image capture, network-friendly transport, multiple output options, and centralized control support in one small body. That makes it easier to deploy in spaces where the camera needs to behave like part of the system, not just an isolated endpoint.

System Characteristics

• Dante AV-H support helps the camera fit more naturally into networked AV infrastructures
• Multiple output paths improve workflow flexibility across displays, networks, and AV systems
• VISCA over IP and serial control support better centralized camera management
• 72° field of view gives the camera a practical fixed-position coverage angle
• Compact body with dual mounting threads makes installation more flexible

What’s In The Box

Please refer to the Specifications tab for the exact included items.
