website

Product Highlights

  • Designed for AIDA FHD CCTV cameras and other compatible CS-mount systems
  • Features an 8mm focal length with f/2 fixed aperture
  • Provides a 45° horizontal field of view on a 1/2.5-inch sensor
  • Supports 1.3 to 5MP cameras
  • Uses manual focus and a fixed iris for stable fixed-position setups

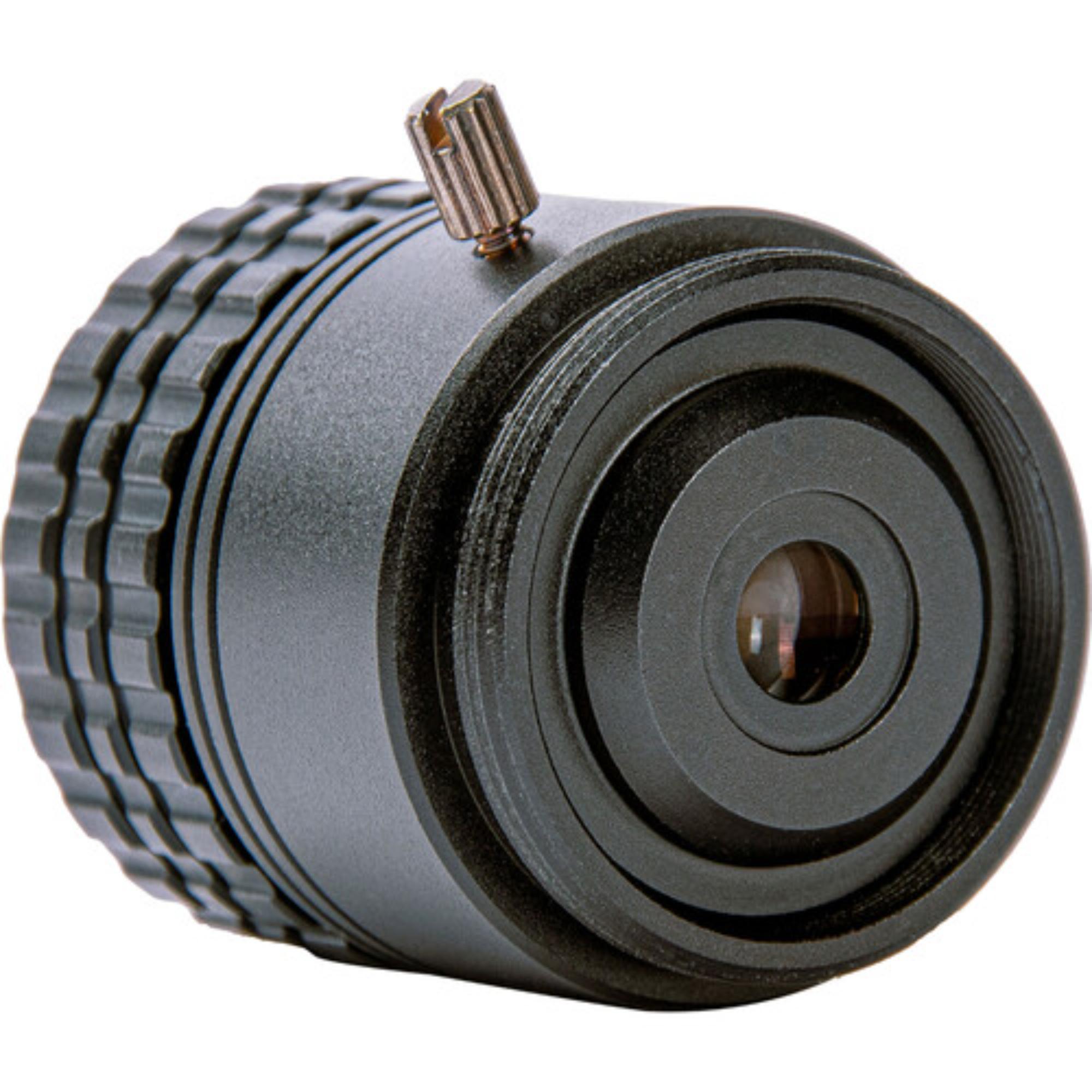

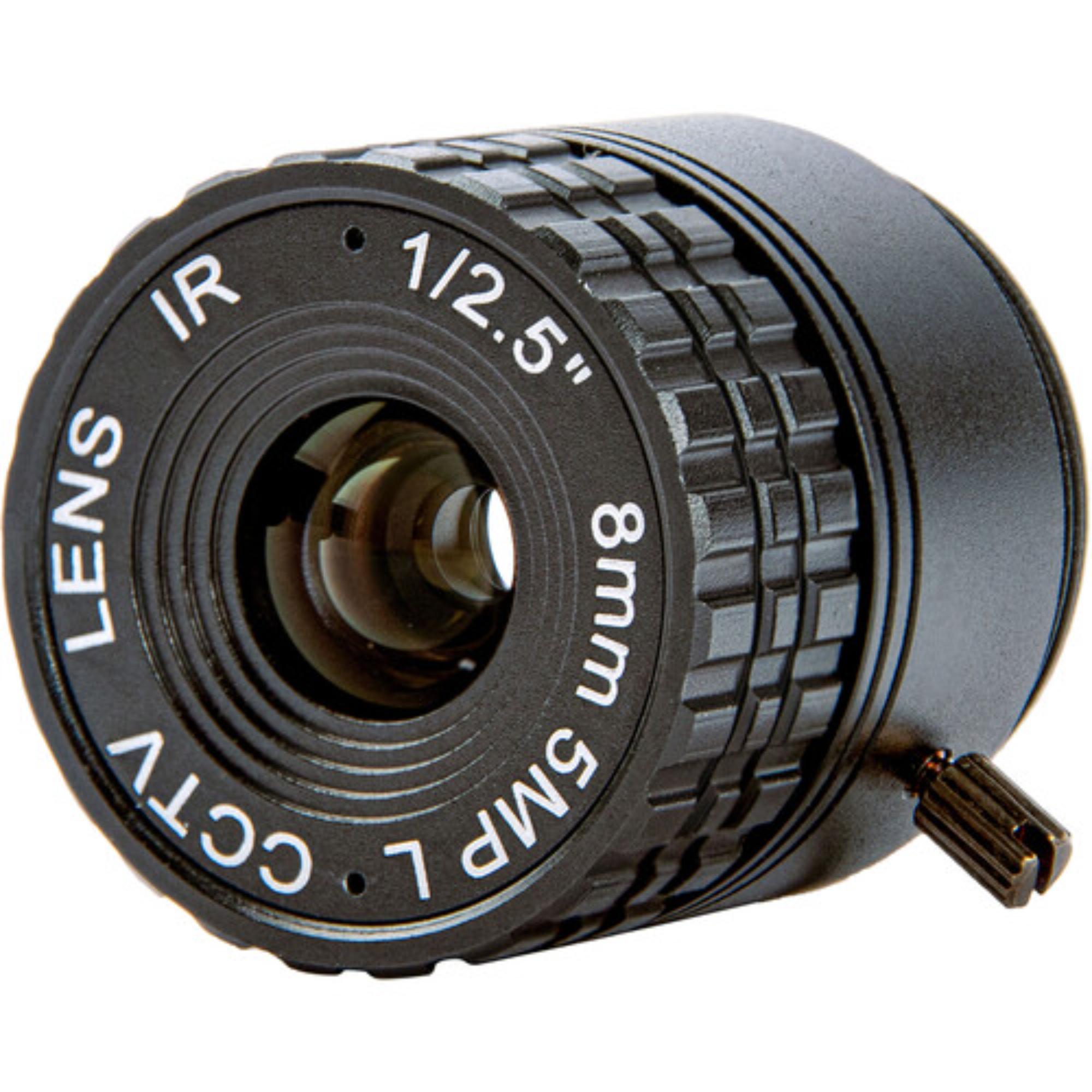

AIDA Imaging CS-8.0F 8mm 5MP Lens (CS)

SKU:
AIDA-CS-8.0F
In Stock
Regular price $45.00
/

Ships in 1-3 Business Day

Free Expedited Shipping

Secure payment

Manufacturer Warranty

Authorized Dealer

10

Product Inquiry Form

Description

Product Overview

AIDA Imaging CS-8.0F 8mm 5MP Lens (CS) is built for compact camera systems that need a tighter, more controlled field of view than a wider default lens can provide. Designed for AIDA FHD CCTV cameras and other compatible CS-mount systems, this lens gives users a practical way to narrow the shot and create more selective fixed-position coverage.

Highlights

  • 8mm focal length for tighter framing on compact camera systems
  • CS-mount design for compatible AIDA and CCTV-style cameras
  • f/2 fixed aperture with manual focus and fixed iris
  • Supports 1.3 to 5MP cameras
  • 45° horizontal field of view on a 1/2.5-inch sensor

Quick Specs & Uses

  • Lens mount: CS
  • Sensor compatibility: 1/2.5" (5 MP)
  • Focal length: 8mm
  • Back focal length: 7.7mm
  • Maximum aperture: f/2
  • Angle of view: 45° horizontal on 1/2.5" sensors, 36.6° horizontal on 1/3" sensors
  • Focus type: manual focus
  • Iris type: fixed
  • Distortion: -18.5%
  • Operating conditions: -20 to 60°C

Why It Helps

Compact cameras often ship with lenses that prioritize wider coverage. That can be useful, but it also means the shot may include more of the scene than you actually want. This lens helps by narrowing the field of view and giving the camera a more controlled framing style. In practical terms, it is a simple way to make a compatible small camera feel more focused without changing the camera body itself.

System Characteristics

  • 8mm focal length helps create a tighter, more selective image
  • CS-mount format keeps it aligned with compact CCTV-style camera ecosystems
  • Manual focus and fixed iris suit stable installed-camera workflows
  • 5MP support matches compact HD imaging systems in the 1.3 to 5MP range
  • Compact lightweight design fits small-camera installations easily

What’s In The Box

Please refer to the Specifications tab for the exact included items.

Trusted Seller

Coremicro ships fast from the U.S. and supports this gear with a team that understands real production and AV workflows.

Specifications

AIDA Imaging CS-8.0F 8mm 5MP Lens (CS) Specifications

Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What's included

Included on AIDA Imaging CS-8.0F 8mm 5MP Lens (CS)

1 x AIDA Imaging CS-8.0F 8mm 5MP Lens (CS)
