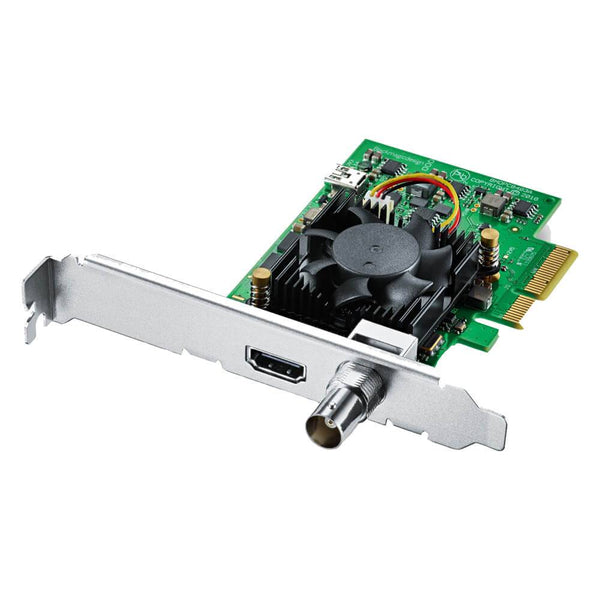

Blackmagic Design DeckLink Mini Recorder 4K PCIe Capture Card

  SKU# BMD-BDLKMINIREC4K
  MFR# BDLKMINIREC4K

Availability: In Stock

Order Now to Ship by: Monday, December 17

Free Expedited Shipping

Product Highlights

  • 6G SDI and HDMI Input
  • Codec Support: AVC-Intra, Apple ProRes and Uncompressed Formats
  • OS Compatibility: Mac, Windows, and Linux
  • Color Space: REC 601, REC 709, REC 2020
  • Audio Sampling: 48 kHz and 24 bit
  • Color Precision: 10-bit
  • Operating Temperature: 5° to 40° C (32° to 104° F)

Description

The DeckLink Mini Recorder 4K from Blackmagic Design is a PCIe capture card (low profile) that has the latest HDMI 2.0 connection for recording up to 2160p30 on the computer. There are SDI and HDMI inputs that work automatically detect and switch between all video formats. When recording, users can also have dynamic range experience and metadata via HDMI with support for recording 2020 color space. Since this product support for uncompressed and compressed video in the open standard file formats (QuickTime and DPX), as such this device suitable for all professional visual effect and color correction software. In other words, this device can work with Adobe Premiere Pro, Fusion, Media Composer, DaVinci Resolve, Final Cut Pro, and to name a few.

As a whole, this Decklink Mini Recorder 4K suitable for users who seek the easiness for integrating into mobile live capture environments or even broadcast trucks. In fact, users can also make a custom capture solutions with the Blackmagic Desktop Video SDK for Mac OS X, Linux or even Windows. This product has two PCIe shields for 2 slots: full height and low profile.

UPC: 9338716004366
Specifications

Connections

SDI Video Input

1 x 10-bit SD/HD/Ultra HD switchable



SDI Audio Input

16 channels embedded in SD, HD, Ultra HD



HDMI Video Input

1 x HDMI 2.0a connector



HDMI Audio Input

8 Channels embedded in SD, HD, Ultra HD



Computer Interface

Gen 2 PCIe Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots



Codecs Supports

AVC-Intra, AVCHD, Canon XF MPEG2,

Digital SLR, DV-NTSC, DV-PAL, DVCPRO50,

DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD,

XDCAM HD422, Apple ProRes 4444,

Apple ProRes 422 HQ, Apple ProRes 422,

Apple ProRes LT, Apple ProRes 422 Proxy,

Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2



Software Included

Media Express, Disk Speed Test,

LiveKey, Blackmagic System

Preferences; Blackmagic driver on Mac OS X and Windows



Internal Software Upgrade

Firmware built into software driver

Loaded at system start or via updater software



Physical Installation

PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X,

Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots.



Other Supported Applications Include

Nuke, Avid Symphony, Avid News Cutter,

Tools On Air just:in & live:cut & just:play & just:live,

Softron OnTheAir, MovieRecorder and OnTheAir CG,

Flash Media Live Encoder, Wirecast, Livestream Procaster,

Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4,

CyberLink Power Director, MAGIX Video Pro X4,

Vidblaster Pro & Studio & Broadcast, Uniplay,

Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster,

Imagine Communications Velocity & InfoCaster.



Video Standards

SD Format Support

525i59.94 NTSC, 625i50 PAL



HD Format Support

720p50, 720p59.94, 720p60

1080p23.98, 1080p24, 1080p25, 1080p29.97,

1080p30, 1080p50, 1080p59.94, 1080p60

1080PsF23.98, 1080PsF24, 1080PsF25,

1080PsF29.97, 1080PsF30

1080i50, 1080i59.94, 1080i60



Ultra HD Format Support

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30



4K DCI Format Support

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p



SDI Compliance

SMPTE 259M and 292M



SDI Metadata Support

VITC read for 3:2 pulldown removal

VANC capture using up to 3 lines of video in file

HD RP188 and closed captioning



Audio Sampling

Television standard sample rate of 48kHz and 24 bit



Video Sampling

4:2:2



Color Precision

10-bit



Color Space

REC 601, REC 709, REC 2020



HDMI Configuration

HDMI automatically configures to connected display



HDMI Resolution

Pixel for pixel HD resolution input to connected device



HDMI Color Precision

10-bit



Multiple Rate support

SDI and HDMI are switchable between standard definition and high definition



Copy Protection

HDMI input is unable to capture from copy protected HDMI sources

Always confirm copyright ownership before capture or distribution of content



Processing

Colorspace Conversion

Hardware based real time



HD Up Conversion

Software based up conversion during video capture



Operating Systems

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later

Windows 7, 8.1 and 10, all 64-bit

Linux



EMC Certifications

FCC, CE and C-Tick



Weight

1 lbs



Environmental Specifications

Operating Temperature

5° to 40° C (32° to 104° F)



Storage Temperature

-20° to 45° C (-4° to 113° F)



Relative Humidity

0% to 90% non-condensing



INCLUDED

DeckLink Mini Recorder 4K

Low profile slot bracket

SD card with software and manual



WARRANTY

3 Year Limited Manufacturer's Warranty
