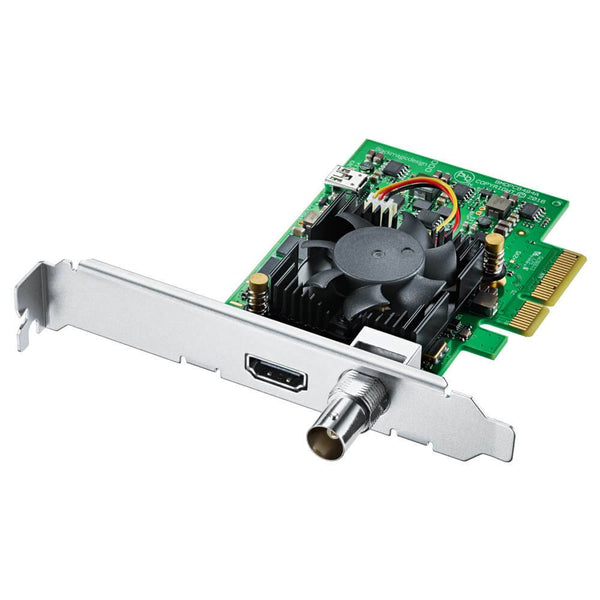

Blackmagic Design DeckLink Mini Monitor 4K PCIe Playback Card

  SKU# BMD-BDLKMINIMON4K
  MFR# BDLKMINIMON4K

Availability: In Stock

Order Now to Ship by: Wednesday, November 14

Free Expedited Shipping

Product Highlights

  • SD/HD/3G/6G SDI / HDMI Output
  • PCI-Express 2.0 x4 Interface
  • DCI 4K, UHD, HD, and SD Video Support
  • Hardware Color Space Conversion
  • 10-Bit Processing
  • Realtime Software HD Down-Conversion
  • Windows, MacOS X, and Linux Compatible

Description

The DeckLink Mini Monitor 4K from Blackmagic Design is a PCIe playback card (low profile) with 6G-SDI and HDMI 2.0 connection for monitoring all format (up to 2160p30) from the computer. With the SDI and HDMI output, users can connect to any TV or monitor and automatically detect and switch between all video formats. This product is more than just a monitor 4K device but also work well with other editing and color correction software such as DaVinci Resolve. Besides those functionalities, this product also supports the HDR playback which makes this device as the most convenient and affordable HDR playback solution.

In all, besides those advanced functionalities; this DeckLink Mini Monitor 4K is compatible with most Computer Operating System: Linux, Windows, and Mac OS X. This product also has the included 2 PCIe shields for both slots: low profile and full height.

UPC: 9338716004359
Specifications

Connectivity

SDI Video Input

1 x 10-bit SD/HD/Ultra HD switchable



SDI Audio Input

16 channels embedded in SD, HD, Ultra HD



HDMI Video Input

1 x HDMI 2.0a connector



HDMI Audio Input

8 Channels embedded in SD, HD, Ultra HD



Computer Interface

Gen 2 PCIe Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots



DeckLink Mini Monitor 4K



Codecs Supports

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC

DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX,

XDCAM HD, XDCAM HD422, Apple ProRes 4444,

Apple ProRes 422 HQ, Apple ProRes 422,

Apple ProRes LT, Apple ProRes 422 Proxy,

Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2



Software Included

Media Express, Disk Speed Test, LiveKey,

Blackmagic System Preferences and Blackmagic driver on Mac OS X and Windows.



Internal Software Upgrade

Firmware built into software driver.

Loaded at system start or via updater software



Physical Installation

PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X,

Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots.



Other Software Supported Applications Include

Nuke, Avid Symphony, Avid News Cutter,

Tools On Air just:in & live:cut & just:play & just:live,

Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder,

Wirecast, Livestream Procaster, Resolume Avenue 4,

Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director,

MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay,

Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster,

Imagine Communications Velocity & InfoCaster.



Video Standards

SD Format Support

525i59.94 NTSC, 625i50 PA



HD Format Support

720p50, 720p59.94, 720p60

1080p23.98, 1080p24, 1080p25,

1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

1080PsF23.98, 1080PsF24, 1080PsF25,

1080PsF29.97, 1080PsF30



Ultra HD Format Support

2160p23.98, 2160p24, 2160p25,

2160p29.97, 2160p30

1080i50, 1080i59.94, 1080i60



4K DCI Format Support

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p



SDI Compliance

SMPTE 259M and 292M



SDI Metadata Support

VITC read for 3:2 pulldown removal

VANC capture using up to 3 lines of video in file

HD RP188 and closed captioning



Audio Sampling

Television standard sample rate of 48 kHz and 24 bit



Video Sampling

4:2:2



Color Precision

10-bit



Color Space

REC 601, REC 709, REC 2020



HDMI Configuration

HDMI automatically configures to connected display



HDMI Resolution

Pixel for pixel HD resolution input to connected device



HDMI Color Precision

10-bit



Multiple Rate support

SDI and HDMI are switchable between standard definition and high definition



Copy Protection

HDMI input is unable to capture from copy protected HDMI sources

Always confirm copyright ownership before capture or distribution of content



Processing

Colorspace Conversion

Hardware based real time



HD Up Conversion

Software based up conversion during video capture



Operating Systems

Mac OS X 10.10 Yosemite, and Mac OS X 10.11 El Capitan or later.

Windows 7, 8.1 and 10, all 64-bit

Linux



EMC Certifications

FCC, CE and C-Tick



Environmental Specifications

Operating Temperature

5° to 40° C (32° to 104° F)



Storage Temperature

-20° to 45° C (-4° to 113° F)



Relative Humidity

0% to 90% non-condensing



Included

DeckLink Mini Recorder 4K

Low profile slot bracket

SD card with software and manual



Warranty

3 Year Limited Manufacturer's Warranty
