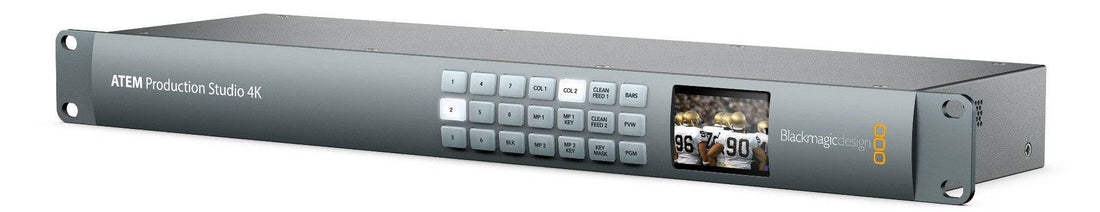

Blackmagic Design ATEM Production Studio 4K

  SKU# BMD-SWATEMPSW04K
  MFR# SWATEMPSW04K

Availability: In Stock

Order Now to Ship by: Today

Free Expedited Shipping

Product Highlights

  • Supports NTSC/PAL/HD/UltraHD 4K @ 10-bit
  • Supports 4K Resolution Over SDI or HDMI
  • 4 x 6G-SDI & 4 x HDMI Inputs (4k/HD/SD)
  • Tri-Sync/Blackburst Ref. Sync Input
  • 8 x Built-in Frame Synchronizers
  • Multiview Monitoring in HD
  • Program Outputs in SD/HD/4K HD
  • 1 x Upstream & 2 x Downstream Keyers
  • Audio: 10 x Input, 2 Channel Mixer
  • Hardware or Software Mac/PC Control

Description

Made in the rack-mounted size (1RU), this ATEM Production Studio 4K Live Switcher from Blackmagic Design give you the good performance of live event multi-camera production switcher that can support NTSC/PAL/HD and Ultra HD video formats through the 4 Single Link 6G-SDI and 4K HDMI inputs (4). You can connect this switcher with broad ranges of sources and cameras, as such you will have the SD, HD or Ultra HD video in a single program stream.

Not only Video but Audio and other connectivities are available in this ATEM Production Studio 4K. For Audio input, you will have Digital and Analog. As for other connections are Frame Synchronizer, Sync input; and numerous output: Program, Auxiliary, Multi-View, Preview (PVW), and Tally. There is also the Ethernet port for direct connection between control panel and chassis or via the network. In the built-in Media Players side, this unit can handle several image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF.

Some editing tools in this ATEM Production Studio 4K such as, on the Keyers, there are Upstream, Downstream, Linear/Luma, Chroma. As for the Generators, you will get Color and Pattern. This device has standard input voltage at 110/240 V AC, 50/60 Hz and you will need the IEC power cord that sold separately. The power consumption is at 60W.

UPC: 9338716001976

Recommended Accessories

Specifications

Standards

Ultra HD Support

SDI

3840 x 2160p 23.98/24/25/29.97/30



HDMI: Computer Input Resolutions

3840 x 2160 23.98/24/25/29.97Hz



HD Format Support

SDI

720p 50/59.941080i 59.94

1080i 50/59.94

1080p 23.98/24/25/29.97/50/59.94



HDMI: Computer Input Resolutions

1280 x 720 50/59.94Hz

1920 x 1080 50/59.94Hz



SD Format Support

SDI

NTSC: 525/29.97 - 4:3/16:9

PAL: 625/25 - 4:3/16:9



HDMI: Computer Input Resolutions

720 x 480 59.94 Hz

720 x 576 50Hz



SDI Compliance

SMPTE 259M, 292M

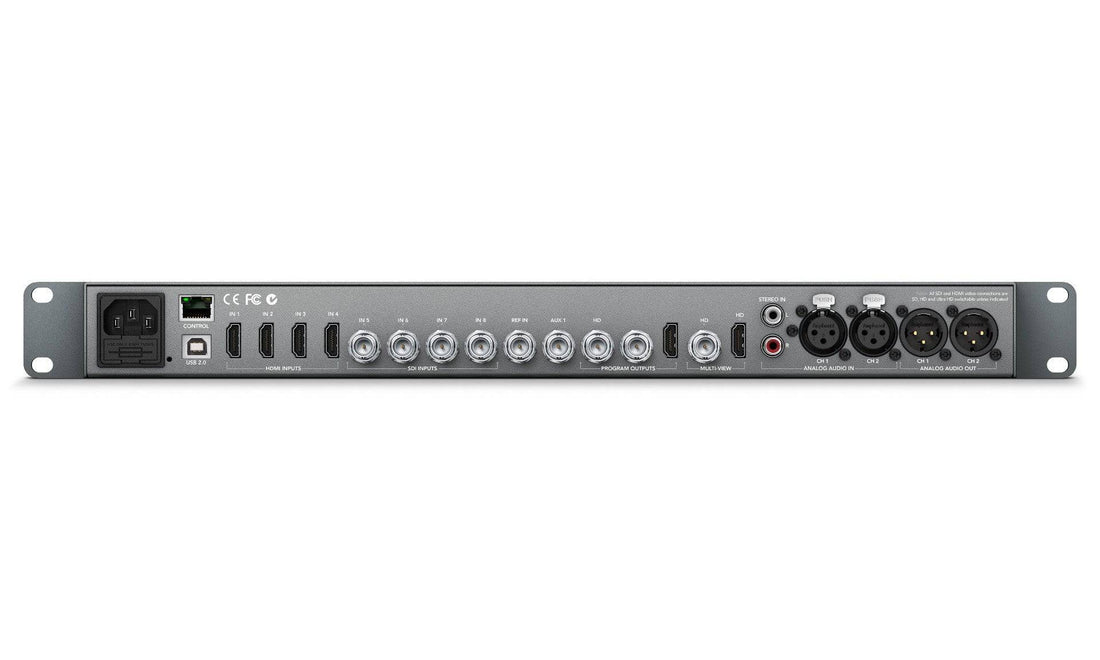

Connectivity

Video Inputs

4 x SDI (10-bit SD/HD/Ultra HD switchable)

4 x HDMI 4K(10-bit SD/HD/Ultra HD switchable)



Audio Input

Digital

8 x Embedded audio via SDI or HDMI

1 x AES/EBU



Analog

2 x XLR

2 x RCA



Sync Input

1 x SDI: Tri-Sync or Blackburst



Frame Synchronizer

8 x Internal frame synchronizers (all inputs)



Program Output

1 x SDI (10-bit SD/HD/Ultra HD switchable)

1 x HDMI 4K (10-bit SD/HD/Ultra HD switchable)

1 x SDI (HD-SDI only)



Auxiliary Output

1 x SDI (10-bit SD/HD/Ultra HD switchable)



Multi View Output

1 x SDI (HD-SDI)

1 x HDMI (HD)



Preview (PVW) Output

None



Quantity of Multi-Views

1



SDI Audio Output

2 Channels embedded into SDI output



Analog Audio Output

2 x XLR



Ethernet

1 x 10/100/1000 BaseT input.

Allows direct connection between control panel and chassis, or via network



Serial Communication

None



Tally Output

Added via Ethernet connection

Note: GPI and Tally Interface product are optional and are not included



GPI

Added via Ethernet connection

Note: GPI and Tally Interface product are optional and are not included



Software Update

Using USB connection directly connected to Mac OS X or Windows computers.

Includes ATEM Switcher Utility



Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address,

which is set via the ATEM Switcher Utility connected via USB to chassis.



Processing

Color Space Conversion

Hardware based, real time



Processing Delay

1 line



Video Sampling

4:2:2



Color Space

REC 601

REC 709



Color Precision

10-bit



Built-in Media Players

Quantity

2



Channels

2 x Fill and key total (1 per Media Player)



Still Image Capacity

20



Image Format

PNG, TGA, BMP, GIF, JPEG, and TIFF



Multi-View Monitoring

Display

Minimum monitor resolution: 1366 x 768



Number of Windows

1 Multi-view display with 10 x windows for: Preview



Program

8 x assignable displays



Tally

Red for program and green for preview indication

Note: requires optional Blackmagic Design GPI and Tally interface product



Window Source Labels

Yes



Front Panel Controls

Buttons

Illuminated button control Aux output settings



LCD Display

1 x 2" LCD display of Aux output



Control Panel

Software

ATEM Software Control Panel for both Mac and PC



Mac

OS x 10.7 Lion or later

OS x 10.8 Mountain Lion or later



Windows

Windows 7 64-bit

Windows 8 32/64-bit

Note: software included with purchase of ATEM Production Studio 4K



Hardware

ATEM 1 M/E Broadcast Panel

ATEM 2 M/E Broadcast Panel

Note: hardware panels are optional not included



Extras

Keyers

1 x Upstream

2 x Downstream

3 x Linear/Luma

1 x Chroma



Generators

2 x Pattern

2 x Color



Power

Input Voltage

110/240 V AC, 50/60 Hz

Note: IEC power cord required, not included



Power Consumption

60W



Redundant Power

No



General

Temperature

Operating Temperature

32 to 104°F (0 to 40°C)



Storage Temperature

-4 to 140°F (-20 to 60°C)



Relative Humidity

Up to 95%



Dimensions (HxWxD)

1.7 x 19.0 x 5.0" (44 x 482 x 127mm)

1RU-sized unit with built-in rack mount ears



Weight

3.75 lb (1.7 kg)



Packaging Info

Package Weight

4.35 lb



Box Dimensions (LxWxH)

19.1 x 7.4 x 3.5"



In The Box

Software SD Card

Blackmagic Design ATEM Production Studio 4K Live Switcher

Limited 1-Year Warranty
