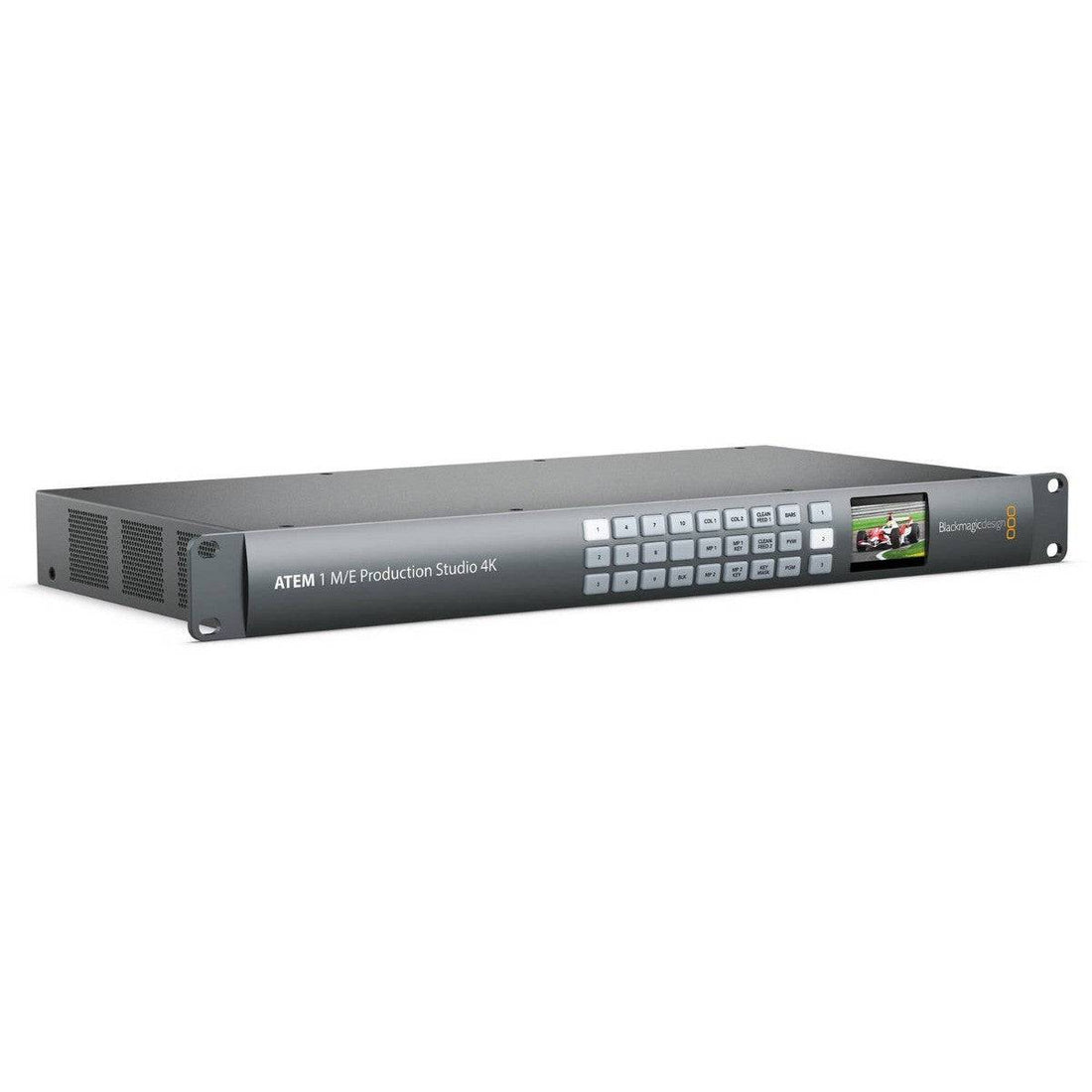

The Blackmagic Design ATEM 1 M/E Production Studio 4K model switches between SD, HD, or Ultra HD video standards so you can connect a wide range of video sources such as cameras, disk recorders, and computers. Featuring 10 inputs, chroma keys, transitions, media pool, 4 upstream keyers, downstream keyers, audio mixer, multi-view, full motion DVE, stinger transitions, large media pool with full motion clips, and 3 auxiliary outputs!

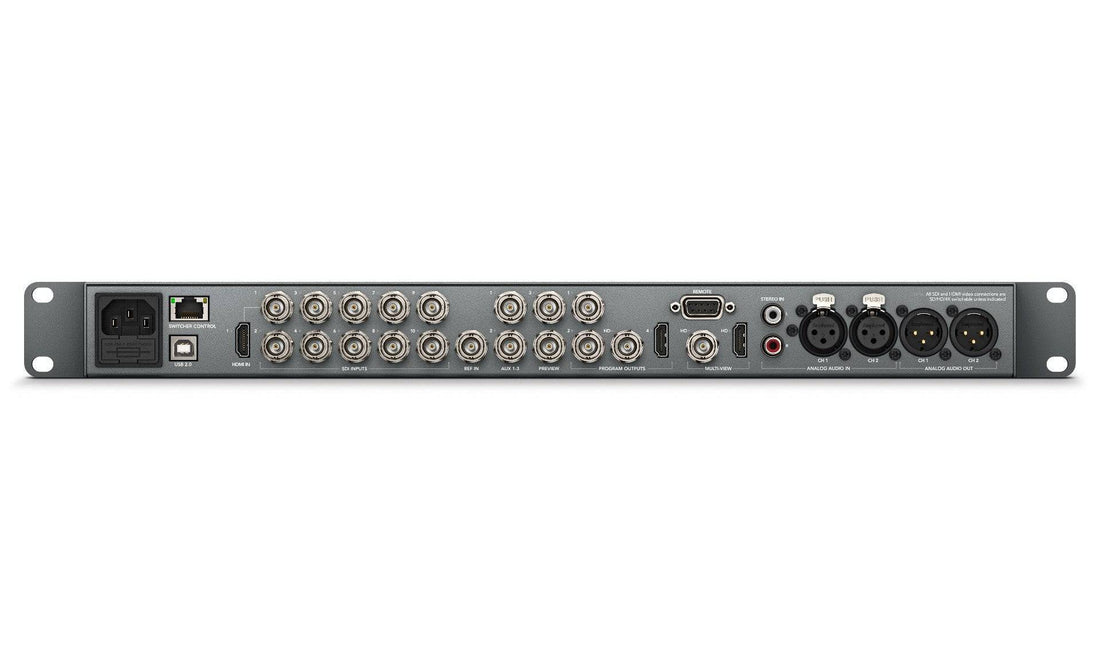

Several sufficient major connectivities are available in this ATEM 1 M/E Production Studio 4K, such as SDI and HDMI for input with 2 channel for embedded audio and the audio input itself has Digital (embedded audio via SDI or HDMI) and Analog (XLR and RCA). In addition, there are still plenty of connections such as Sync input and for output: Frame Synchronizer, Program, Auxiliary, Multi-View, Preview (PVW), SDI Audio, Analog Audio, Ethernet, and Tally (via Ethernet connection).
ATEM 1 M/E Production Studio 4K also comes with the built-in 12 channel audio mixer as well as the balanced and unbalanced Analog audio for flexibility of audio options. You can also control this unit via Mac or PC computers with the included ATEM Software Control. Adding the ATEM ME 1 and ME 2 Broadcast Control Panel will ease the usage of this device.
ATEM 1 M/E Production Studio 4K Features:
Standards Ultra HD Support SDI 3840 x 2160p 23.98/24/2529.97/30
HDMI: Computer Input Resolutions 3840 x 2160 23.98/24/25/29.97 Hz
HD Format Support SDI 720p 50/59.94 1080i 50/59.94 1080p 23.98/24/25/29.97/50/59.94
HDMI: Computer Input Resolutions 1280 x 720 50/59.94 Hz 1920 x 1080 50/59.94 Hz
SD Format Support SDI NTSC: 525/29.97 - 4:3/16:9 PAL: 625/25 - 4:3/16:9
HDMI: Computer Input Resolutions 720 x 480i 59.94 Hz 720 x 576i 50Hz
SDI Compliance SMPTE 259M, 292M
Connectivity Video Inputs 10 x SDI (10-bit SD/HD/Ultra HD switchable) 1 x HDMI 4K(10-bit SD/HD/Ultra HD switchable) 2 Channel embedded audio
Audio Input Digital 20 x Embedded audio via SDI or HDMI
Analog 2 x XLR 2 x RCA
Sync Input 1 x SDI: Tri-Sync or Blackburst
Frame Synchronizer 10 x Internal frame synchronizers (all inputs)
Program Output 2 x SDI (10-bit SD/HD/Ultra HD 4K switchable) 1 x HDMI Type A (10-bit SD/HD/Ultra HD 4K switchable) 1 x SDI (Ultra HD 4K to HD only)
Auxiliary Output 3 x SDI (10-bit SD/HD/Ultra HD 4K switchable)
Multi View Output 1 x SDI (HD-SDI) 1 x HDMI (HD)
Preview (PVW) Output 1 x SDI (10-bit SD/HD/Ultra HD 4K switchable)
Multi View Output 1 x SDI 1 x HDMI
SDI Audio Output 2 Channels embedded into SDI output
Analog Audio Output 2 x XLR
Ethernet 1 x 10/100/1000 BaseT input. Allows direct connection between control panel and chassis, or via network
Serial Communication RS-422
Tally Output Added via Ethernet connection Note: GPI and Tally Interface product are optional and are not included
GPI Added via Ethernet connection Note: GPI and Tally Interface product are optional and are not included
Software Update Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility
Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address, which is set via the ATEM Switcher Utility connected via USB to chassis
Processing Color Space Conversion Hardware based, real time
Processing Delay <2 lines
Video Sampling 4:2:2
Color Space REC 601 REC 709 REC 2020
Color Precision 10-bit
Built-in Media Players Quantity 2
Channels 2 x per Media Player (fill and key)
Still Image Capacity 32 with fill and key
Clip Capacity Quantity 2 with fill and key
Maximum Clip Length Ultra HD 4K: 180 frames 1080: 720 frames 720p: 1600 frames NTSC/PAL: 3600 frames
Image File Formats Still PNG, TGA, BMP, GIF, JPEG, and TIFF
Video TGA sequence
Audio WAV, MP3, AIFF
Multi-View Monitoring Display Minimum monitor resolution: 1366 x 768
Number of Windows 1 Multi-view display with 10 x windows for: Preview Program 8 x assignable displays
Tally Red for program and green for preview indication Note: requires optional Blackmagic Design GPI and Tally interface product
Window Source Labels Yes
Front Panel Controls Buttons Illuminated button control Aux output settings
LCD Display 1 x 2" LCD display of Aux output
Control Panel Software ATEM Software Control Panel for both Mac and PC
Mac OS x 10.7 Lion or later OS x 10.8 Mountain Lion or later
Windows Windows 7 64-bit Windows 8 32/64-bit Note: software included with purchase of ATEM Production Studio 4K
Hardware ATEM 1 M/E Broadcast Panel ATEM 2 M/E Broadcast Panel Note: hardware panels are optional not included
Extras Keyers 4 x Upstream 2 x Downstream 7 x Linear/Luma 4 x Chroma 1 x Stinger 1 x DVE
Generators 7 x Pattern 2 x Color
Power Input Voltage 110/240 V AC, 50/60 Hz Note: IEC power cord required, not included
Power Consumption 100W
Redundant Power No
General Temperature Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Relative Humidity 0 to 90% non-condensing
Dimensions (HxWxD) 1.7 x 19.0 x 9.25" (43.2 x 482.6 x 235 mm) 1RU-sized unit with built-in rack mount ears
Weight 5.73 lb (2.6 kg)
Packaging Info Package Weight 6.65 lb
Box Dimensions (LxWxH) 19.2 x 10.9 x 3.4"
In The Box Blackmagic Design ATEM 1 M/E Production Studio 4K Limited 1-Year Warranty |
