44

Simultaneous NDI Inputs

0

Physical SDI I/O

56

NDI Outputs in HD

2160p59.94

Maximum Session Video

2RU

Rack Chassis

Vizrt TriCaster Vizion 0 SDI I/O is a 2RU IP-first live production switcher for facilities built around NDI video workflows rather than local SDI connectivity. It supports 44 simultaneous external video inputs, UHD sessions up to 2160p59.94, and extensive NDI routing for broadcast control rooms, sports production, live events, corporate communications, education AV, and remote production. Switching, audio, graphics, recording, PTZ control, and contribution tools are integrated into one scalable production platform.

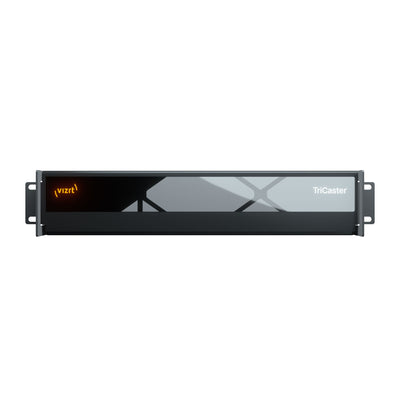

Vizrt TriCaster Vizion 0 SDI I/O 2RU NDI switcher for broadcast and live production

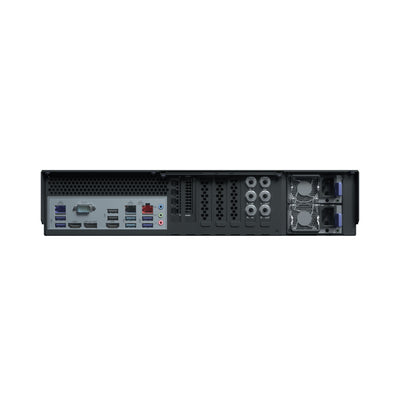

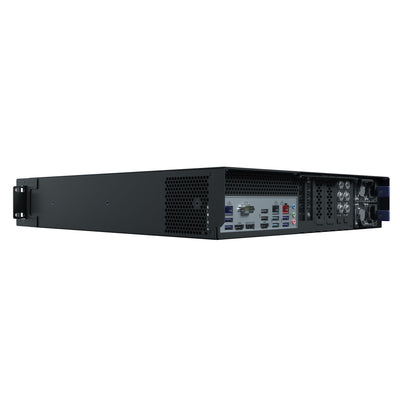

TriCaster Vizion 0 SDI rear panel for 2RU NDI and IP live production workflows

Key Features

TriCaster LivePanel Pro NDI browser control with low-latency previews for remote operators

NDI Browser Production Control

LivePanel Pro Browser Control for NDI Production

LivePanel Pro gives operators browser-based access to modern widgets, low-latency video previews, intelligent state awareness, and real-time system feedback. Exclusive to TriCaster Prizm and Vizion, it supports distributed production teams that need visual confirmation and control without placing every operator at the primary system interface.

TriCaster Vizion AI AR graphics and AI keying for IP broadcast sports and newsroom workflows

AI AR Broadcast Graphics

AI Keying and AR Graphics for IP Broadcast Production

TriCaster Vizion AI/R adds real-time AI-powered keying and augmented reality graphics through an optional subscription. It is designed for newsroom, sports, education, corporate broadcast, and virtual studio teams that want immersive graphics integrated into the Vizion production environment.

TriCaster Vizion 0 SDI configuration for 44-input NDI and IP production environments

IP NDI Production Architecture

0 SDI I/O for Network-First NDI Production

This configuration removes physical SDI video I/O while retaining the Vizion production engine for IP-based workflows. With 44 simultaneous NDI inputs and high-capacity network connectivity, it fits facilities where cameras, converters, graphics systems, replay sources, and program feeds already move across the production network.

TriCaster Live Call Connect remote contribution with Zoom Teams and browser video guests

Remote Contribution NDI Workflow

Live Call Connect for Zoom and Microsoft Teams Guests

Live Call Connect supports multiple simultaneous video-call inputs from Microsoft Teams, Zoom Meetings, and a web browser. Producers can bring remote contributors into broadcast, corporate communications, education AV, and hybrid-event workflows while keeping the production centered on the TriCaster environment.

Production Architecture

NDI Broadcast Studios

A 44-input NDI architecture supports network-native control rooms that no longer require local baseband video I/O.

Sports Broadcasting

Eight M/Es, keying, graphics, PTZ control, UHD production, and IP routing support multi-camera venue and studio shows.

Live Events

NDI connectivity and remote contribution fit conferences, staged events, distributed venues, and networked production spaces.

Corporate Communications

Browser control, graphics, recording, conferencing, and NDI networking support executive broadcasts and hybrid meetings.

Education AV

PTZ integration, macros, recording, reusable graphics, and network video support campus media and lecture production.

Virtual Studio Teams

LiveSet, DataLink, Viz Flowics, keying, and optional AI/R tools support data-driven virtual production environments.

Vizrt Standard Support

TriCaster Vizion includes one year of standard support according to Vizrt's September 2026 specification. Optional advanced hardware replacement is available, and support coverage can be upgraded.

Technical Specifications

Specification	Detail
Manufacturer SKU	BDL-000000146
Video Input	44 simultaneous external video inputs supporting compatible sources up to UHD at frame rates through 2160p59.94
Network Video Input	44 IP inputs via NDI with support for key and fill
Physical SDI I/O	None on the 0 SDI I/O hardware configuration
Network Video Output	Up to 56 IP outputs via NDI in HD sessions
Video Mix Outputs	Up to 8 independent HD or 2 UHD video mix outputs delivered through the IP production workflow
Audio Mixer	44-channel integrated audio mixer with 8-channel audio support, DSP processing, and 4x8x8 audio input routing
Local Audio Input	1 balanced stereo pair via 1/4-inch connection and 1 microphone input via 1/4-inch connection
Local Audio Output	1 balanced stereo pair via 1/4-inch connection and 1 headphone output via 1/4-inch connection
Network Audio	NDI audio input/output; Dante and AES67 support require compatible third-party virtual sound card licenses
Media Players	5 media players: 4 DDR and 1 Sound; 15 media buffers
Keying	LiveMatte chroma/luma keying with 44 input keyers, 4 media player keyers, 8 M/E keyers, 1 PREVIZ keyer, and 15 buffer keyers
Composition	16 configurable COMP presets per bus with integrated composition and DVE-style motion sequencing
Virtual Sets	LiveSet technology with 30+ live virtual sets and box effects
DataLink	Real-time automated data input from webpages, spreadsheets, scoreboards, databases, RSS, XML, CSV, ASCII, and other supported sources
Recording	No software limit stated by Vizrt
Internal Storage	4 TB SSD
PTZ Control	Up to 44 simultaneous PTZ cameras via RS232, RS422, and IP
Conference Calling	Multiple simultaneous video-call inputs via Microsoft Teams, Zoom Meetings, and web browser using Live Call Connect
Monitoring	Up to 4 multiviewer displays with configurable workspaces and viewports
Signal Monitoring	Integrated waveform and vectorscope with digital calibration, color preview, and ITU-R Rec. 709 support
Video Processing	YCbCr plus alpha color space using 4:2:2:4 processing
Audio Processing	Floating point, 96 kHz
Tally	Network tally via NDI with TSL 5 support
Networking	1 x 10 GbE, 1 x 2.5 GbE, and 1 x 1 GbE
System Physical	2RU chassis with redundant 550W power supplies; 19.0 x 3.5 x 19.57 in
Packaged Weight	32 lb / 14.5 kg
Standard Support	1 year standard support; upgrade options available

TriCaster Vizion FAQ

What Is the TriCaster Vizion 0 SDI Live Production Switcher Used For?

This configuration is designed for multi-camera live production environments that use NDI and IP video rather than physical SDI production connections, including broadcast, sports, live events, enterprise media, education, and remote production.

How Many NDI Inputs Does TriCaster Vizion Support?

TriCaster Vizion supports 44 simultaneous IP video inputs via NDI. The network inputs are resolution-independent and support key and fill.

Does the 0 SDI I/O TriCaster Vizion Have Physical SDI Ports?

No. This hardware configuration has no physical SDI video I/O. Its production video workflow is centered on NDI and IP connectivity while retaining local monitoring, audio, USB, and network connections.

Does TriCaster Vizion Support UHD 4K NDI Production?

Yes. Compatible sources are supported up to UHD, including 2160p59.94, and the platform can provide up to two UHD video mix outputs.

How Many NDI Outputs Are Available in HD Workflows?

Vizrt specifies up to 56 IP outputs via NDI in HD sessions, supporting complex network routing, multiview, media, and production output workflows.

Which Remote Contribution Platforms Work with Live Call Connect?

Vizrt lists Microsoft Teams, Zoom Meetings, and browser-based video calls for Live Call Connect, with support for multiple simultaneous video-call inputs.

Is TriCaster Vizion AI/R Included with the Switcher?

TriCaster Vizion AI/R is an optional subscription that adds real-time AI-powered keying and augmented reality graphics.

What Vizrt Support Comes with TriCaster Vizion?

Vizrt specifies one year of standard support. Optional advanced hardware replacement is available, and support coverage can be upgraded.

Ready to Build an NDI-First TriCaster Vizion Production System?

Coremicro is an authorized Vizrt dealer for professional live production systems. Contact our team to confirm the Vizrt TriCaster Vizion 0 SDI I/O configuration, NDI network design, source bandwidth, storage workflow, control requirements, and facility integration.
