Panasonic AK-PLV100GSJ 4K CINELIVE Studio Camera with PL Mount is a Super 35 studio camera body designed for cinematic broadcast production. It combines a 5.7K Super 35 sensor with 12G-SDI output capability, internal ND filtration, professional audio connectivity, and optical fiber integration for studio control workflows.

This is a studio-ready camera platform built for environments where cinematic depth meets traditional broadcast infrastructure — including CCU operation, intercom, return video, and prompter workflows.

Highlights

5.7K Super 35 mm sensor (17.25 million pixels)

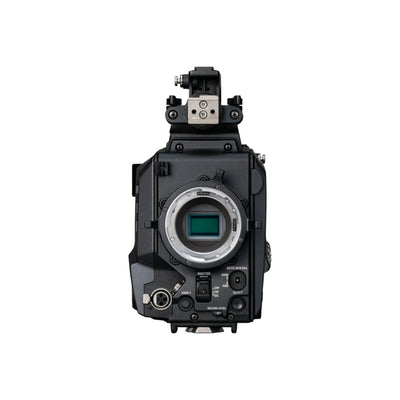

PL lens mount for professional cinema lenses
12G-SDI main output (SDI OUT1)
Internal ND filters: Clear, 1/4, 1/16, 1/64
Optical fiber terminal for studio CCU integration

5 Quick Reasons

Single-cable 4K output via 12G-SDI simplifies routing
Flexible AUX BNC terminal configurable as GL/RET IN, HD TRUNK, or PROMPTER
Dual XLR audio inputs with MIC/LINE/+48V support
Super 35 cinematic look inside a broadcast system architecture
Fiber-ready studio operation for control room integration

Quick Specs & Uses

Sensor: 5.7K Super 35 mm, 17.25 MP
Lens Mount: 35mm PL Mount
Resolution Formats: 3840×2160 (59.94p/50p/29.97p/25p/23.98p) and 1920×1080 (59.94p/50p/29.97p/25p/23.98p)
Gain: 0 to 36 dB (3 dB steps)
Shutter: Up to 1/2000 sec (mode dependent)

Video Input / Output

SDI OUT1: BNC ×1 (12G/6G/3G/1.5G-SDI, 0.8 V[p-p], 75Ω)
SDI OUT2: BNC ×1 (3G/1.5G-SDI, 0.8 V[p-p], 75Ω)
AUX Terminal: BNC ×1 (menu selectable)
AUX as GL/RET IN: 3G/1.5G-SDI
AUX as HD TRUNK: 3G/1.5G-SDI
AUX as PROMPTER: VBS signal 1 V[p-p], 75Ω

Audio & Intercom

MIC 2: XLR ×1 (3-pin female), MIC/LINE/+48V selectable
Front MIC: XLR ×1 (3-pin female), MIC/LINE/+48V selectable
Intercom: XLR ×1 (5-pin female)

Other I/O

OPT FIBER: Optical composite connector ×1
LENS: 12-pin ×1
VF: 20-pin ×1
VF (rear): 29-pin ×1
DC IN: XLR ×1 (4-pin), DC 12 V
LAN: RJ-45 ×1

Power & Environmental

Power Supply: DC 12 V (external) / AC 240 V 50/60 Hz (with supported CCU) / DC 190 V (with supported HCU)
Power Consumption: 82 W max (12 V operation) / 92 W max (with CCU)
Operating Temperature: -10°C to 45°C (preheating required at 0°C or below)
Storage Temperature: -20°C to 60°C
Operating Humidity: 85% RH or less
Weight: Approx. 4.2 kg (body only)
Dimensions: 151 × 267 × 389 mm (excluding protrusions)

System Characteristics

AUX BNC port function must be configured in the camera menu.
Preheating is required when operating at 0°C (32°F) or below.
Designed for integration with fiber-based studio control systems.
PL mount requires compatible cinema lenses.
Audio input levels must be configured appropriately (LINE 0 dBu or MIC selectable).

What’s In The Box

1 x Panasonic AK-PLV100GSJ 4K CINELIVE Studio Camera with PL Mount
