4K30

H.264 / H.265 Encoding

HDMI + SDI

Input and Loop-Through

6 Streams

Protocol-Dependent Limit

NDI HX3

IP Video Output

SD / USB / NAS

Recording Destinations

The Magewell Ultra Encode AIO is a professional 4K HDMI and SDI streaming encoder and recorder for broadcast production, sports, education and live events. This single-channel hardware encoder accepts HDMI or SDI video, or combines both inputs in picture-in-picture or side-by-side layouts. H.264/H.265 encoding up to 4096 x 2160p30, SRT contribution, NDI HX2/HX3 support and scheduled recording make it a flexible bridge between baseband video sources and IP workflows.

The Magewell Ultra Encode AIO (manufacturer SKU 531300000 for US/EU/UK/AU/JP; Coremicro SKU MAG-53130) is an HDMI/SDI 4K video encoder and recorder sold by Coremicro, an authorized Magewell dealer in Union City, California. It accepts HDMI signals up to 4096 x 2160p60 and SDI signals up to 4096 x 2160p30, with main-stream H.264/H.265 encoding up to 4096 x 2160p30. It supports SRT, RTMP/RTMPS, NDI HX2/HX3, HDMI/SDI input mixing, and recording to SD card, USB drive or compatible network storage. Coremicro lists a retail price of $899; this is not a manufacturer-verified MSRP. Magewell provides a two-year limited hardware warranty, subject to the manufacturer's conditions.

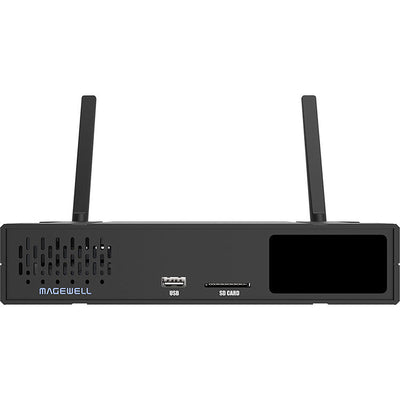

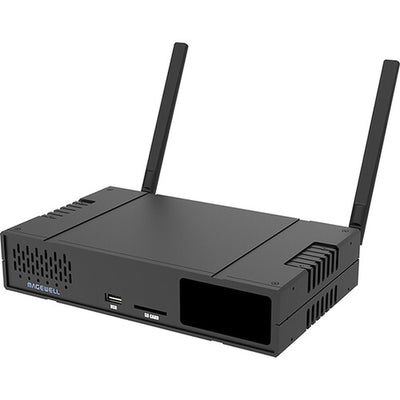

Magewell Ultra Encode AIO HDMI SDI 4K streaming encoder and recorder

Overview

Magewell Ultra Encode AIO professional live streaming encoder product overview

HDMI + SDI in One Unit

Select either video input or build a single mixed program from HDMI and SDI sources.

4K Encoding and IP Delivery

Encode H.264 or H.265 up to 4096 x 2160p30 for supported streaming workflows.

Stream and Record

Distribute the live feed and create local or network recordings using supported media.

Key Features

Magewell Ultra Encode AIO HDMI SDI input mixing for live video production

Multi-Input Processing

HDMI and SDI Video Mixing with PiP

Ultra Encode AIO can encode one selected HDMI or SDI input, or combine both video sources into a single picture-in-picture or side-by-side program. Operators can configure up to eight text, image or clock overlays on an encoding profile. This enables on-screen identifiers and simple branded output without adding a separate composition computer.

Magewell Ultra Encode AIO supported streaming formats and protocols diagram

Video Codecs

H.264 and H.265 (HEVC) with main and sub encoding profiles.

Streaming Protocols

RTMP, RTMPS, SRT Caller/Listener, RTSP, RTP/UDP transport streams, HLS, RIST, ZIXI and TVU ISSP.

NDI Compatibility

NDI HX2 and NDI HX3 for compatible IP production and AV-over-IP workflows.

Magewell Ultra Encode AIO 4K30 video encoding settings and streaming features

High-Resolution Encoding

4K30 H.264 and H.265 Hardware Encoding

Encode HDMI or supported SDI sources in a main stream at up to 4096 x 2160p30, with a configurable sub stream up to 1080p60. The non-NDI HX3 video bitrate ceiling is 32 Mb/s; NDI HX3 has its own maximum of 62 Mb/s. HDMI input supports up to 4K60, but the encoded output is limited to 4K30.

Magewell Ultra Encode AIO simultaneous multi-protocol streaming capability diagram

Up to Six Streaming Sessions

Stream to multiple destinations with protocol-specific concurrency limits. NDI HX3 operates as one exclusive session.

Different Stream Profiles

Select the main or sub encoding profile for supported destination sessions.

Scheduled Streaming

Set scheduled tasks to start or stop delivery for supported streaming destinations.

Streaming and Recording

Magewell Ultra Encode AIO SD card USB and network video recording workflow

Local File Recording

Record MP4, MOV or TS files to an SD card or external USB storage device.

Network Storage

Record to compatible NFS or CIFS network shares.

Recording Controls

Run normal or loop recording, configure schedules and manage recordings from the Web UI.

NDI HX3 and IP Production

Magewell Ultra Encode AIO NDI HX3 support for IP video production

NDI Video over IP

NDI HX3 Streaming for Network Video Workflows

Ultra Encode AIO supports both NDI HX2 and NDI HX3 for compatible networked production equipment and software. NDI HX3 offers an efficient transport option for IP video distribution, with a listed encoding bitrate up to 62 Mb/s. Magewell specifies one exclusive NDI HX3 streaming session, so the general six-session limit does not apply when HX3 is active.

Connectivity and Control

Video I/O

1 x HDMI input and loop-through; 1 x SDI input and loop-through (SD/HD/3G/6G).

Networking

Gigabit Ethernet, PoE+, Wi-Fi station/AP modes and support for an optional USB cellular modem.

System Control

1.9-inch LCD touch screen, browser-based Web UI, Magewell Control Hub and HTTP APIs.

Real-World Workflows

Sports and Events

High-Quality Live Streaming

Encode the HDMI or SDI program feed for supported streaming platforms and record the event at the same time.

Broadcast Contribution

Remote SRT Video Feeds

Send a live program to a compatible remote receiver using SRT Caller or Listener according to network requirements.

Professional AV

IP Production and Recording

Connect camera or switcher outputs to NDI-compatible production paths, with supported scheduled recording tasks.

Who It's For

Live Event Producers

Stream and record video from HDMI or SDI production systems.

Broadcast Teams

Deliver SRT feeds to supported remote receiving systems.

AV Integrators

Build rack-mounted IP video distribution and managed AV workflows.

Education and Worship

Publish classes or services while keeping local recordings.

Magewell Manufacturer Support

Magewell provides a two-year limited warranty for Ultra Encode AIO hardware. Supplied cables and the power adapter have a separate one-year limited warranty. Eligibility and service are subject to Magewell's published warranty conditions.

Technical Specifications

Specification	Detail
Model	Magewell Ultra Encode AIO
Manufacturer SKU	531300000 (US/EU/UK/AU/JP); 531300001 (KR)
Coremicro SKU	MAG-53130
HDMI Input and Loop-Through	1 x HDMI 1.4a input and 1 x HDMI loop-through; up to 4096 x 2160p60
SDI Input and Loop-Through	1 x SD/HD/3G/6G-SDI input and 1 x SDI loop-through; up to 4096 x 2160p30
Main Stream Encoding	H.264/H.265 up to 4096 x 2160p30
Sub Stream Encoding	Selectable up to 1920 x 1080p60
Video Bitrate	Up to 32 Mb/s (non-NDI HX3); up to 62 Mb/s (NDI HX3)
Input Mixing	Single HDMI or SDI source; HDMI + SDI picture-in-picture or side-by-side output
Video Overlays	Up to 8 text, image or clock overlays per encoding profile
Streaming Protocols	RTMP/RTMPS, SRT Caller/Listener, RTSP, HLS, TS over UDP/RTP, NDI HX2/HX3, TVU ISSP, ZIXI, RIST
Concurrent Streaming	Up to 6 destinations with protocol limits; 1 exclusive NDI HX3 session
Streaming Platforms	YouTube, Facebook, Twitch and compatible RTMP/SRT destinations
Recording Formats	MP4, MOV and TS
Recording Storage	SD card, external USB storage or NFS/CIFS network storage; media not included
Recording Functions	Normal and loop recording; scheduled recording
Audio Inputs	16-channel SDI embedded audio, 8-channel HDMI embedded audio; 3.5 mm stereo line input
Audio Encoding	Up to 8 AAC channels with supported audio channel mapping

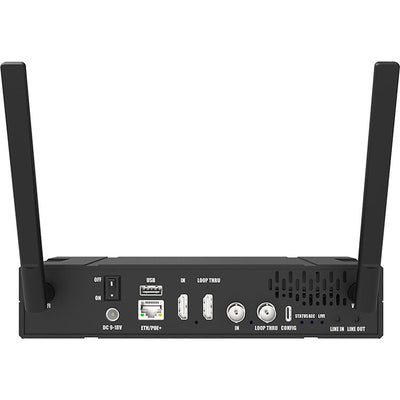

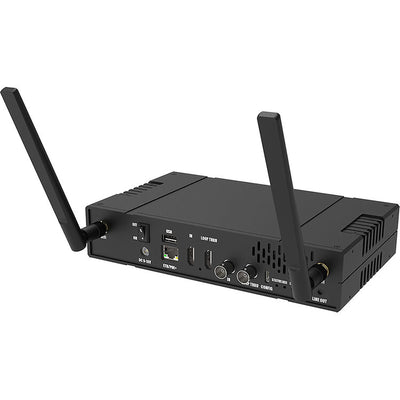

Video Connections	HDMI input/loop-through and SDI input/loop-through
Other Connections	3.5 mm LINE IN/OUT, 1 x USB-C configuration port, 2 x USB-A, 1 x SD card slot
Network Connectivity	Gigabit Ethernet, PoE+ (IEEE 802.3at), Wi-Fi 802.11 a/b/g/n/ac
Management	1.9-inch LCD touch screen, Web UI, Magewell Control Hub, HTTP API
Power	DC 9–18 V; maximum consumption approximately 11.5 W
Dimensions	214.9 x 128.2 x 44.55 mm
Rack Installation	Standard 1U rack with included mounting kit
Warranty	2-year limited device warranty; 1-year limited warranty for supplied cable/adapter

Frequently Asked Questions

What is the Magewell Ultra Encode AIO used for?

It is a hardware encoder and recorder that converts HDMI or SDI video into supported IP streams for live events, remote contribution and AV production. It also records to compatible external media or network storage.

How does Ultra Encode AIO combine HDMI and SDI video?

It can select either input or combine HDMI and SDI sources in picture-in-picture or side-by-side layouts. The resulting single program can be encoded and delivered using supported protocols.

Does the Magewell Ultra Encode AIO support 4K60 streaming?

Its HDMI input accepts up to 4096 x 2160p60, but main-stream video encoding is limited to 4096 x 2160p30. SDI input is supported up to 4096 x 2160p30.

Can Ultra Encode AIO stream and record simultaneously?

Yes. It can run compatible streaming and recording tasks together and save files to an SD card, USB storage or compatible NFS/CIFS network storage. External recording media must be supplied separately.

Is Ultra Encode AIO compatible with SRT and NDI HX3 receivers?

It supports SRT Caller/Listener and NDI HX2/HX3 outputs for receiving devices or software that support those protocols. NDI HX3 uses one exclusive session rather than the general six-stream configuration.

How does Ultra Encode AIO compare with Ultra Encode HDMI Plus?

Both support 4K30 H.264/H.265 encoding and NDI HX3. Ultra Encode AIO adds HDMI and SDI inputs in the same unit, including the option to combine those sources, while Ultra Encode HDMI Plus is an HDMI-input model.

Is Coremicro an authorized Magewell dealer?

Coremicro identifies itself as an authorized Magewell dealer in Union City, California. Purchases are subject to Magewell's applicable limited warranty and service terms.
