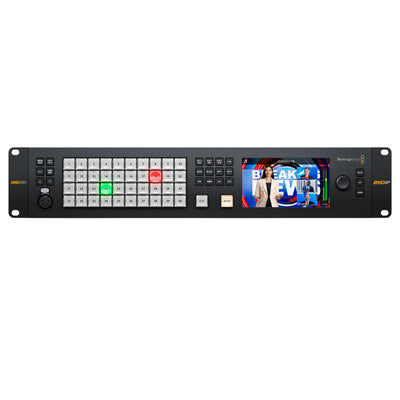

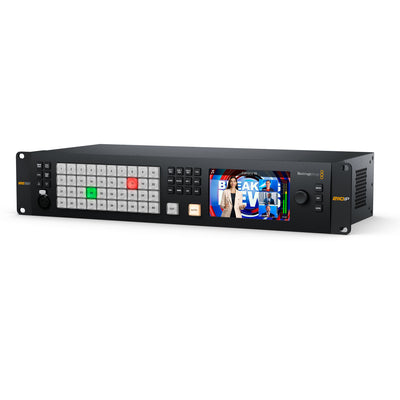

Blackmagic ATEM Monitoring Rack Panel 40 — 2RU rack-mount broadcast control panel with 40-button source row, large 5-inch front LCD, and 5-pin talkback connector for ATEM Constellation IP systems.

The expanded 2RU control solution for Blackmagic Design ATEM Constellation IP — 40 source buttons, a large 5-inch LCD, and full SMPTE-2110 monitoring conversion in a single unit. SKU: SWPANELABRMP40 | Announced NAB 2026

New — April 2026

Product Overview

The Blackmagic Design ATEM Monitoring Rack Panel 40 is a full 2RU video converter and switcher control panel built for operators who need more buttons, a bigger display, and broadcast-grade reliability in a rack-mountable form factor.

Where the Panel 20 gives you 20 source buttons in 1RU, the Panel 40 doubles that to 40 buttons across 2RU, and adds a large 5-inch built-in LCD — a real-size video monitor right on the rack panel face.

Two redundant 10G Ethernet inputs carry SMPTE-2110 streams and convert them to 2 x 12G-SDI and HDMI for local monitoring. The front-panel talkback connection is included, and a dedicated NMOS control port keeps IP routing separate from the production network.

For larger productions where 20 source buttons aren't enough — or where operators need a bigger local display without adding a separate monitor to the rack — the Panel 40 is the answer. Announced at NAB 2026 on April 14, 2026.

At a Glance

2RU

Rack Form Factor

Lit Source Buttons

Built-In LCD Screen

2x10G

Redundant Ethernet

12G

SDI + HDMI Output

Key Features

Dual Redundant 10G Ethernet

Two independent 10G RJ45 ports with SMPTE-2022-7 compliance. One path drops mid-broadcast — the other takes over instantly, no frames lost.

SMPTE-2110 to 12G-SDI + HDMI

Converts native SMPTE-2110 IP video to 2 x 12G-SDI and HDMI simultaneously. Connect local broadcast monitors directly — no external converter needed.

40 Premium Lit Source Buttons

Double the button row of the Panel 20. Assign, cut, and switch up to 40 sources directly from the rack panel — no software, no laptop, no delay.

Large 5-Inch Front LCD

A proper 5-inch built-in LCD displays live video directly on the panel face. Local rack monitoring without a separate monitor consuming rack space.

5-Pin Broadcast Talkback

Standard 5-pin XLR talkback connector on the front panel. Plug in a broadcast headset and stay in communication without extra intercom cabling.

Dedicated NMOS Control Port

A dedicated 1G RJ45 Ethernet port for ATEM switcher connection and NMOS control — keeps IP routing traffic isolated from the production network.

Why It Matters

The Panel 40 exists for the same reason the Panel 20 does — the ATEM Constellation IP's front-to-back cooling architecture leaves no room for front-panel controls. But if you're running a larger production with more sources, 20 buttons isn't enough. The Panel 40 gives you a full 40-button row, covering the complete input range of ATEM Constellation IP systems without shifted mappings or workarounds.

The 5-inch LCD is the other upgrade that matters in practice. Rather than glancing at a tiny thumbnail, you get a monitor-sized view of your program feed right on the rack panel face. In a busy OB truck or broadcast facility, that's signal confidence at a glance — without craning your neck to find a separate monitor. All from Blackmagic Design.

Panel 20 vs Panel 40 — Which Do You Need?

Panel 20 — 1RU

Form factor	1RU
Source buttons	20
Front display	Small LCD with meters
Video outputs	2 x 12G-SDI + HDMI
Best for	Tight racks, flyaway kits

Panel 40 — 2RU — This Product

Form factor	2RU
Source buttons	40
Front display	Large 5-inch LCD
Video outputs	2 x 12G-SDI + HDMI
Best for	Facilities, full-source production

Use Cases

Broadcast Facilities

Pairs with ATEM Constellation IP in permanent installations. 40 lit buttons cover every source directly — no shifted mappings, no software panel required at the rack.

OB Truck and Flyaway

2RU and dual redundant power deliver a reliable, self-contained control and monitoring unit. The 5-inch LCD eliminates a separate monitor from the rack entirely.

Live Events and Stadiums

Physical 40-button control and large on-panel display let operators manage the full production from the rack room without software panels or a separate video monitor.

News and Sports Production

Fast-paced multi-source environments benefit most from 40 direct-access buttons. Reach any camera or source instantly during a live news or sports broadcast.
