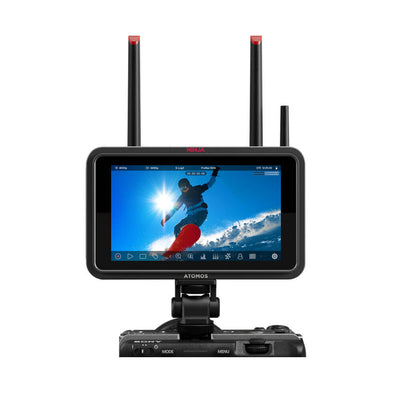

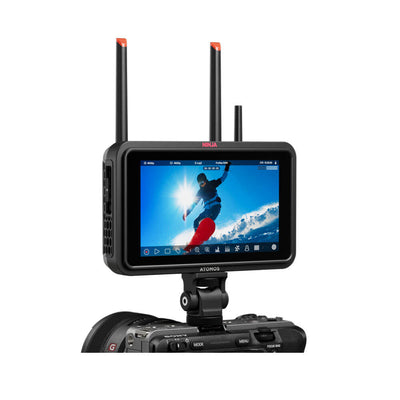

The Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorder from Atomos takes the trusted Ninja line to the next level with more power, flexibility, and speed than ever. It combines 12G-SDI and HDMI 2.0 inputs and outputs, giving you maximum compatibility across all types of cameras and workflows.

You can record in Apple ProRes RAW, DNx, or H.265 directly to ultra-fast CFexpress Type B cards or external USB-C drives. The 5.2-inch touchscreen is brighter than ever at 1500 cd/m², making it easy to see in any lighting condition.

With built-in Wi-Fi and NDI 6 streaming, plus camera-to-cloud integration through a free ATOMOSphere membership, the Ninja TX keeps your productions connected from set to post. It’s also powered by the new AtomOS Linux system for faster performance and reliable operation.

Completely re-engineered but still familiar to Ninja fans, this monitor-recorder delivers 8K30 RAW recording, RF/Bluetooth timecode sync, and integrated Connect technology for seamless TX/RX streaming and direct uploads. Every essential codec is now built in—no add-ons required.

Compact, connected, and built for professionals, the Ninja TX is the all-in-one solution for modern video creators who demand performance without compromise.

Camera Compatibility

The Atomos Ninja TX works seamlessly with a wide range of popular mirrorless and cinema cameras, giving filmmakers maximum flexibility across brands and shooting styles. Its advanced HDMI and 12G-SDI connectivity ensures easy setup with both full-frame and APS-C systems, supporting RAW and ProRes workflows directly from camera to recorder.

Canon: EOS R, EOS R5, EOS R6, EOS C200
Fujifilm: GFX100, GFX100S, X-T3, X-T4
Leica: SL, SL2, SL2-S
Nikon: D810, D850, Z6, Z6 II, Z7, Z7 II
Olympus: OM-D E-M1 Mark III, OM-D E-M1X
Panasonic: GH5, GH5S, S1, S1H, S1R, S5, DC-BGH1
Sony: A7 II, A7 III, A7R IV, A7S II, A7S III, FX3, Alpha 1
Sigma: fp, fp-L
Z CAM: E2, E2-F6, E2-S6

This broad compatibility makes the Ninja TX a versatile tool for creators using multiple camera systems or working in collaborative production environments. Whether you’re shooting stills, cinematic video, or live streaming, the Ninja TX integrates easily into your workflow.

5.2" Touchscreen Display

The Atomos Ninja TX features a bright 5.2-inch IPS touchscreen with a 1920 × 1080 resolution and 1500 cd/m² brightness for clear, color-accurate viewing—even in direct sunlight. Its 8/10-bit color processing, HDR support, and Rec. 709 color gamut deliver smooth tones and true-to-life contrast. The display also supports Calibrite ColorChecker Display Pro/Plus calibration for consistent, professional color monitoring on every shoot.

Updated Linux Operating System

Powered by the new AtomOS Linux, the Ninja TX delivers a faster, cleaner, and more responsive experience. The redesigned interface offers improved tools, smoother performance, and cooler operation—ideal for long days on set.

Wireless Features

Connectivity takes a major leap with built-in AtomX Connect technology. The Ninja TX integrates directly into NDI networks, working as either a source or receiver for high-quality, low-latency streaming. With AirGlu timecode sync over RF or Bluetooth, it can synchronize multiple cameras, audio recorders, and monitors with precision, serving as a powerful timecode hub for professional multicam setups.

Camera-to-Cloud Workflow

With the Camera-to-Cloud (C2C) system built in, you can upload video files straight from your Atomos Ninja TX to the cloud—no extra hardware needed. The recorder supports direct uploads to ATOMOSphere, Adobe Frame.io, and Dropbox, streamlining your workflow from capture to post-production.

Comprehensive Color and Metadata Support

The Ninja TX works seamlessly with log formats from top camera brands including Sony, ARRI, RED, FUJIFILM, Panasonic, Canon, Nikon, and JVC. Upload custom 3D LUTs for precise look management and output HDR conversions to Log, HLG, PQ, or Dolby Vision. Through the HDMI input, it records valuable RAW metadata such as white balance, exposure, shutter, ISO, gamma, and gamut.

12G-SDI and HDMI Input/Output

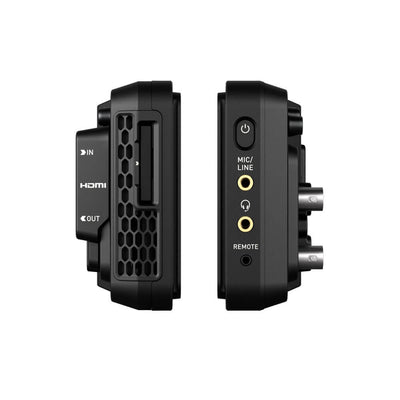

The Ninja TX offers both 12G-SDI and HDMI 2.0 connections for maximum flexibility. HDMI supports 8K up to 30 fps, 4K60, and 1080p120, with loop-through for sending signals to external monitors or streaming encoders. The addition of 12G-SDI broadens compatibility with professional broadcast cameras and enables cross-conversion between HDMI and SDI.

Recording and USB Connectivity

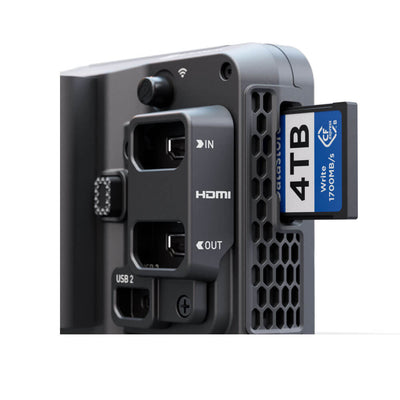

Equipped with a CFexpress Type B slot and dual USB-C ports, the Ninja TX delivers ultrafast data transfer via PCIe and NVMe protocols. Record directly to CFexpress cards or external USB-C drives, or use the ports for monitor calibration, LUT uploads, firmware updates, or audio device connections—built for scalability and future workflows.

Power Options

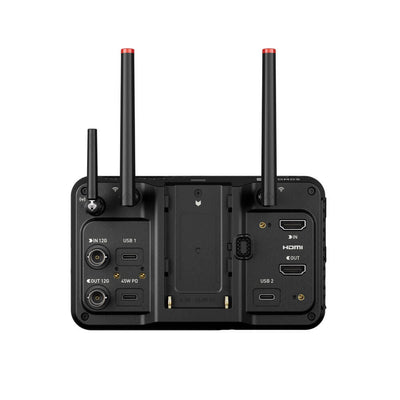

The Ninja TX uses a standard L-series battery plate compatible with NP-F batteries, or an optional DC battery eliminator for continuous power. Its USB-C port supports 30W PD power delivery with the included cable for reliable, extended operation.

Comprehensive Monitoring Tools

Professional tools include focus peaking, 2:1 and 1:1 zoom, zebras, false color (ARRI and EL Zone), frame guides, SMPTE safe areas, grid markers, waveforms, RGB parade, vectorscope, and 3D/1D LUT support with .cube file uploads. Anamorphic de-squeeze is available for accurate framing with anamorphic lenses.

Control Options

The Ninja TX combines tactile buttons with a responsive touchscreen for fast operation. It supports auto HDMI camera triggers for Canon and Sony via the Atomos Open Standard, SDI triggers with compatible cameras, Bluetooth and RF remote control via AirGlu, and LANC control and calibration through an optional USB-C to serial cable.

Atomos Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorder
