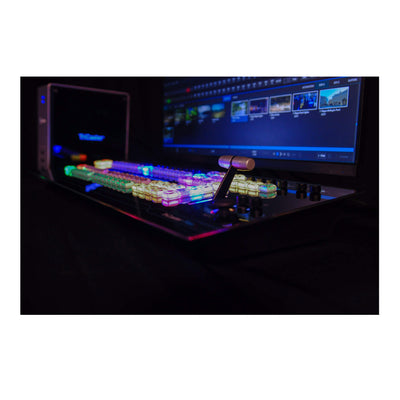

Use this Vizrt Flex Control Panel in conjunction with your TriCaster system to mix audio and video, control PTZ cameras, expand audio inputs and outputs, incorporate NDI connectivity, and enable talkback communication in your studio space all from a single panel. Tactile manual control buttons, a T-bar, and two rows labeled LCD screens provide an intuitive control experience.

The back of the panel features two pairs of 1/4" stereo audio inputs and two pairs of 1/4" stereo audio outputs, expanding your audio ecosystem. An RJ45 Ethernet port enables NDI connection. You can communicate with your camera operators and talent using talkback and microphone inputs, as well as a headphone output port.

Compatible TriCaster Systems

Vizrt TriCaster 2 Elite

Vizrt TriCaster TC1 / 1 Pro

Vizrt TriCaster TC410 Plus

Vizrt TriCaster Mini 4K

Vizrt TriCaster Mini X

Vizrt TriCaster Mini GO

Vizrt TriCaster Now Basic

Vizrt TriCaster Vectar

Features

Intuitive layout mapped to the Video Mix Engine user interface
IP-based connectivity with support for multi-engine control over the network
Responsive multi-bus operation with independently assignable control stripes
Practical lighting, variable T-bar illumination, and dynamic LCD label displays
Precision controls for expert handing of real-time video operations

Controls

16 direct crosspoints, including bank and stripe functions
Row lighting color follows the delegated UI
2 x 40 character, two row LCD screens
PTZ control delegation and the zoom rocker
Mini joystick for pan, tilt, focus, and iris control with auto function
12 fader controls for audio inputs/outputs, talkback, DDR 1-2, sound, and record 1–4
Four fader controls for stream 1 and 2, aux and master output, mic and headphone level
Media players and macro controls
Stream, capture, and reply
Transitions and T-bar

Vizrt Flex Control Panel for TriCaster Systems
