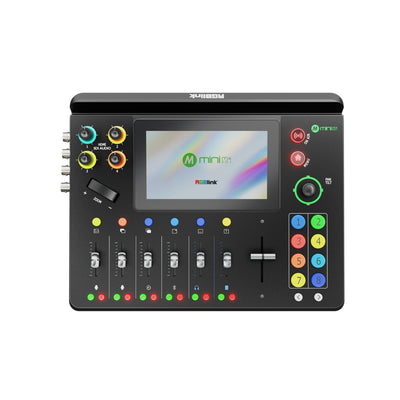

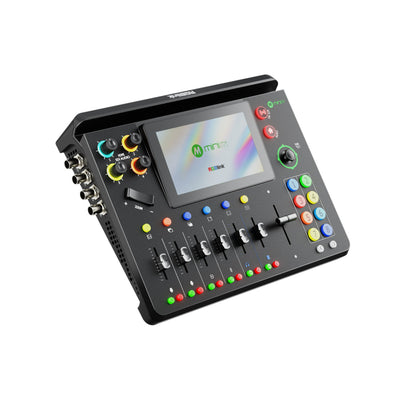

RGBlink mini-mx SDI 10-Channel All-in-One Switcher is a compact, SDI+HDMI production switcher that’s built for small control rooms, flypacks, worship, and hybrid events where you need real I/O (SDI + HDMI), clean program outputs, and modern streaming/recording paths without dragging a full rack.

Highlights

10-channel style connectivity: 4x HDMI + 4x 3G SDI inputs, plus NDI I/O
Multiple output paths: Dual HDMI out, dual USB-C (Record + Stream), and NDI out
Pro audio hookups: Dual mic inputs (one with 48V phantom), line in, and dual audio outs
Broadcast-friendly formats: HDMI 2.0 + SDI (3G/HD/SD) with common SMPTE rates
Remote ops ready: Control via TAO Cloud and webAPP

Quick Specs & Uses

Video Inputs: HDMI 4K: 4 × HDMI-A; 3G SDI: 4 × SDI; NDI: 1 × NDI
Video Outputs: HDMI 2K: 2 × HDMI-A; USB (Record): 1 × USB-C; USB (Stream): 1 × USB-C; NDI: 1 × NDI
Audio I/O: Mic In 1: 6.35mm XLR+TS (48V); Mic In 2: 6.35mm XLR+TS; Line In: 6.35mm TRS; Out: 6.35mm TRS + 3.5mm mini-jack
Network: LAN: 1 × RJ45 (NDI + control)
Latency: <4 frames
Recording: MP4 (up to 16 Mbps); Disk formats: FAT32 / exFAT
Audio Format: PCM / 2ch / 24bit / 48kHz
Operating Range: 0°C to 60°C; 10–85% RH
Size / Weight: Device 280 × 223 × 64 mm, 0.60 kg

System Characteristics

Input standards: HDMI 2.0 and SDI (3G/HD/SD), with SMPTE rates listed for 720p/1080i/1080p.
Output scaling targets: HDMI/USB (Webcam) output modes listed as 1280×720 and 1920×1080 at common frame rates.
Supported standards: HDMI 2.0, HDCP 2.2, SDI (3G/HD/SD), USB 3.0/2.0, NDI|HX2, H.265.
Color space modes: RGB 8-bit, YCbCr 4:4:4 8-bit, YCbCr 4:2:2 8-bit.
Power: USB-C power supply with PD noted as 12V/3.3A and 40W in the spec block.

What’s In The Box

1 x RGBLink mini-mx SDI
1 x PD power adapter
1 x USB-C data cable
1 x Quick guide
