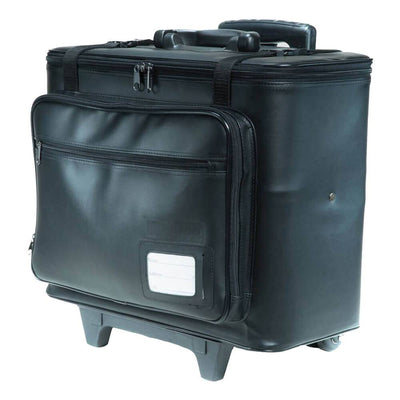

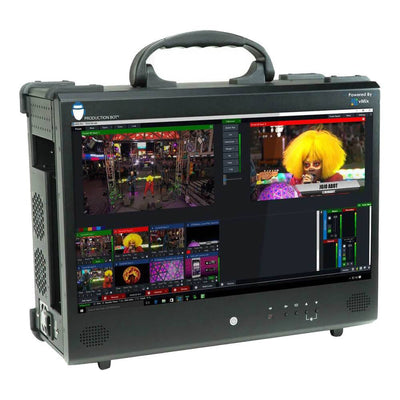

The PRODUCTION BOT Switch 4 Portable Live Broadcast Studio Switcher is an all-in-one portable broadcast studio switcher that can be used as a mobile editing station, or DIT station. This powerful system includes vMix 4K live streaming software preinstalled. One unit can cut cameras, run replays, integrate custom graphics, and record programs and camera isos. The Bot Switch 4 features a 17.3" built-in screen, a keyboard with a mouse, a rolling bag with a telescoping handle, a USB Wi-Fi adapter, and a Shuttle replay controller.

The Production Bot Switch 4 has four HD-SDI camera inputs that allow productions of all sizes. Some of the live events that suit this product such as meetings, sports, worship, and to name a few. As for the input detail, this product work to serve users with different options of unlimited input types, live image adjustment, clean transitions, instant replay, virtual sets, and more. Simultaneous output for broadcast, projectors, and streaming.

vMix Call and NDI Capable
vMix Call makes it easy to add remote guests to your live production. With only a web browser and webcam, your guest can connect to your live show with HD video and high-quality audio from anywhere in the world. Send and receive multiple channels of broadcast quality low-latency video over a gigabit ethernet network utilizing NDI with vMix.

I/O Cards
The Production Bot Switch 4 is equipped with an AJA capture card including eight HD-SDI inputs/outputs. You can also group four inputs together to provide one 4K input. When using the card in 4K mode, standard 1080/720 resolutions are unavailable. With up to two SDI outputs, producers can send multiple high-resolution feeds. For example, a “dirty” version complete with overlays for broadcast and a “clean” version for recording and reuse later. Alternatively, one output can be dedicated to connecting a broadcast-grade preview monitor to supplement the Production Bot’s built-in screen.

Recording
Record Program output while ISO-recording all live Source feeds with the included MultiCorder. Mixed formats including SD, HD, and even 4K are handled on the fly and in real-time based on your desired settings.

Portable
Never before has true professional capability been coupled with this level of portability meaning less time coordinating logistics and more time to focus on broadcasting your events. Setup and produce from start to finish with the vMix Production Bot Switch 4 built-in display or add production quality monitors via HDMI/DisplayPort for powerful MultiViewer windows and fullscreen previews.

Video-Input
True Multi-Input Production Combine up to four HD live sources with nearly unlimited package combinations of video/audio clips, still images, animations, virtual sets, DVDs, and network sources. You are not limited by artificial channels or buffers, every asset is live at all times. Live, Real-time Image Manipulation Up to 1000 inputs including live HD sources provides real-time color correction, resizing, cropping, keying, and more. Every graphic input gives you a host of M/E effects for compositing overlays, virtual set embedding, and sub-mixing with up to five upstream overlays per input.

Software
Titles Use the included Title Designer application to create sophisticated, live updateable title templates or choose from the included library. Easily add lower thirds, rolls, crawls, scoreboards, countdown clocks and other text. Best of all, during the show your main switching engineer can handle the production while a separate operator uses the included web interface application on an iPad, iPhone, Android or laptop device to update titles and text sequences live and on the fly. Virtual Sets Take advantage of our GPU-based.

PRODUCTION BOT Switch 4 Portable Live Production Switcher
