Panasonic AW-UR100 4K Outdoor PTZ Camera is built for permanent outdoor installations where weather resistance, long-range optical reach, and flexible signal transport all have to work at the same time. It combines a 4K MOS imaging system, a motorized 24x optical zoom lens, optical fiber output, 12G-SDI, 3G-SDI, and full IP streaming support — all inside an IP65-rated housing designed for year-round outdoor deployment at sports venues, worship campuses, outdoor stages, and city infrastructure positions.

The 1/2.5-type 4K MOS sensor delivers approximately 8.29 million effective pixels. The motorized 24x optical zoom spans 4.12 mm to 98.9 mm — a 35 mm equivalent range of 25 mm to 600 mm. That is real optical reach, not a digital crop, which matters when the camera position is fixed and the subject is far away.

Highlights

1/2.5-type 4K MOS sensor with approximately 8.29 million effective pixels
24x optical zoom lens — 25 mm to 600 mm 35 mm equivalent range
Optical fiber, 12G-SDI, and 3G-SDI output available simultaneously
SRT, NDI High Bandwidth, and NDI HX2 for modern IP production workflows
IP65-compliant outdoor housing with built-in wiper, heater, and defroster

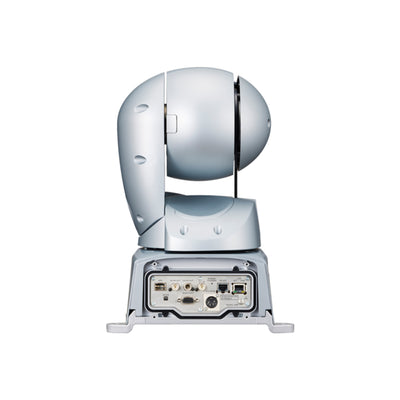

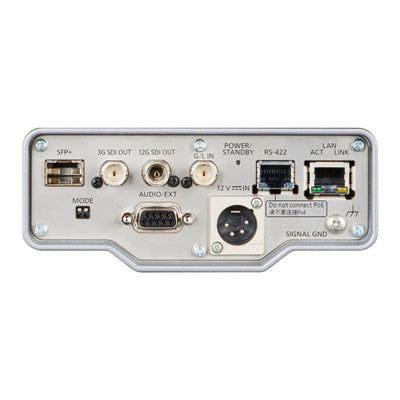

Panasonic AW-UR100 4K outdoor PTZ camera rear I/O panel showing optical fiber, 12G-SDI, and 3G-SDI output connections

Panasonic AW-UR100 outdoor PTZ camera in IP65 weatherproof housing with built-in wiper system for rain and frost protection

Signal Transport Options

Optical Fiber 12G-SDI 3G-SDI NDI High Bandwidth NDI HX2 SRT RTMP / RTMPS RTSP / RTP H.265 / H.264 MPEG2-TS over UDP PoE++ IEEE 802.3bt

Key Features

24x Optical Zoom

25 mm wide to 600 mm tele in 35 mm equivalent. i.Zoom extends to 28x in UHD and 36x in FHD — real optical reach, not a digital crop.

Fiber + SDI + IP Simultaneously

Optical fiber, 12G-SDI, and 3G-SDI are available at the same time alongside SRT, NDI High Bandwidth, and NDI HX2 for IP workflows.

IP65 Outdoor Housing

Salt-resistant coating, built-in wiper, heater, and defroster. Rated -15°C to 45°C. Designed to stay in service through weather events.

4K MOS Sensor

1/2.5-type sensor at 8.29MP effective. Minimum illumination of 3 lx keeps the image usable in low-light outdoor environments.

Flexible Control

LAN IP control and RS-422 both supported. BBS and tri-level sync for frame-accurate integration with existing production infrastructure.

PoE++ Power

IEEE 802.3bt PoE++ compliant plus DC 12V to 21.8V input. Simplifies cabling when running power over existing network runs.

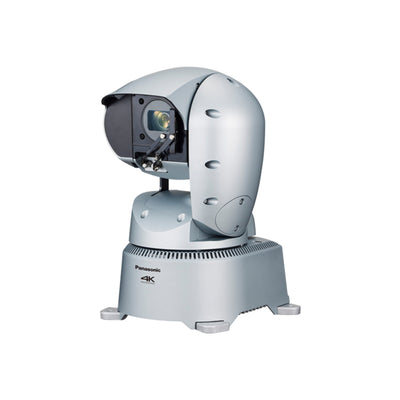

Panasonic AW-UR100 4K outdoor PTZ camera full view showing silver salt-resistant housing, 24x optical zoom lens, and permanent mount base

Why It Matters

Mixed infrastructure, one camera

Outdoor venues rarely run one transport standard throughout. Fiber, SDI, and NDI output simultaneously means broadcast, IT, and streaming teams each get the signal they need — no converter required at the camera position.

Optical reach without a lens kit

24x optical zoom at 600 mm equivalent covers sports sidelines, outdoor stages, and city infrastructure from a fixed mount — without trading image quality for distance the way a digital crop does.

Stays in service through weather

The wiper, heater, and defroster are built in — not optional accessories. At -15°C or in driving rain, the AW-UR100 keeps operating through live events without requiring someone to intervene at the camera position.

Future-proofed for IP migration

SRT and NDI HX2 support means migrating from SDI to network-based production later does not require replacing the camera. Switch the routing at the network level and the camera keeps working.

Use Cases

Sports Venues

Long-range sideline and end-zone coverage from fixed rooftop or tower positions at stadiums and arenas

Worship Campuses

Permanent outdoor coverage of campus events, parking areas, and overflow viewing locations

Outdoor Stages

Wide-to-tele zoom covers full stage and tight performer shots from one permanently rigged position

Remote Production

SRT and NDI HX2 feed remote production workflows over IP without a dedicated satellite uplink

City Infrastructure

Salt-resistant IP65 housing handles coastal and high-humidity urban deployments through seasonal changes

University Campuses

Single camera covers large quadrangles, athletic fields, and outdoor event spaces from one fixed position

Full Specifications

Sensor	1/2.5-type 4K MOS x1
Effective pixels	Approx. 8,290,000
Lens	Motorized optical 24x zoom, F1.8 to F4.0
Focal length	4.12 mm to 98.9 mm
35 mm equivalent	25.0 mm to 600.0 mm
i.Zoom	UHD 28x, FHD 36x
Digital extender	1.4x, 2x
Digital zoom	10x
Angle of view	Horizontal 74.1° wide to 3.3° tele
Focus	Auto and manual switching
Minimum illumination	3 lx
Filters	Through, 1/4, 1/16, 1/64, IR through
Video output	Optical fiber, 12G-SDI, 3G-SDI
IP streaming	JPEG, H.264, H.265, NDI High Bandwidth, NDI HX2
Streaming protocols	RTP, RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI High Bandwidth, NDI HX2
Audio input	MIC/LINE balanced 2-channel, phantom power, 48 kHz sampling
Control	LAN IP control, RS-422
Sync	Internal or external — BBS and tri-level sync supported
Power	DC 12V to 21.8V, PoE++ IEEE 802.3bt compliant
IP rating	IP65 compliant
Finish	Silver, salt-resistant coating
Operating temperature	-15°C to 45°C
Storage temperature	-20°C to 55°C
Weight	Approx. 9.0 kg / 19.84 lb
Dimensions	258.0 x 367.0 x 392.0 mm / 10.16 x 14.45 x 15.43 in

Full spec sheet: pro-av.panasonic.net — AW-UR100 specifications | Manufacturer product page

What's In The Box

1 x Panasonic AW-UR100 4K Outdoor PTZ Camera
4 x M8 Bolt
4 x M8 Washer (x2 sets)
1 x Cable Cover
1 x Washer Nozzle Mount Bracket
1 x Safety Wire
