The Magewell USB Capture HDMI Plus is a one-channel HDMI USB capture device with HDMI loop-through for streaming, recording, conferencing, gaming, and professional production. It accepts and passes through HDMI signals up to 4096×2160 60fps 4:2:0 while providing practical USB capture formats including 1080p60 and 720p120. Hardware video processing, microphone input, headphone monitoring, and broad software compatibility make it a flexible external capture solution.

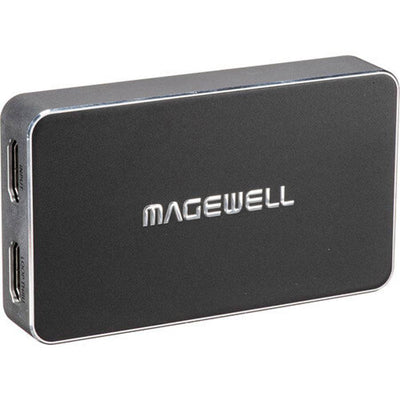

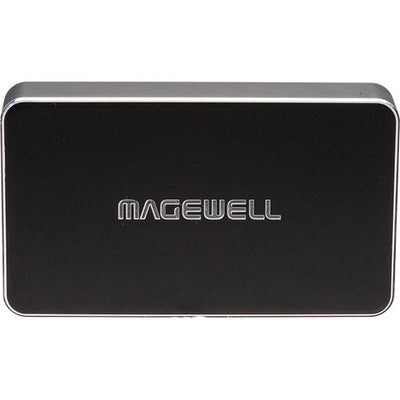

Magewell USB Capture HDMI Plus 1080p60 USB capture device with HDMI loop-through

Key Features

🎥

1080p60 HDMI USB Capture

Capture common production formats including 1920×1080 at frame rates up to 60fps through the USB interface. The hardware processing pipeline handles scaling and format conversion internally, reducing the amount of video processing required from the host computer.

🖥️

4K60 HDMI Input and Loop-Through

HDMI input and loop-through support up to 4096×2160 60fps 4:2:0, while 4:4:4 and 4:2:2 formats are supported up to 4096×2160 30fps. High-resolution sources can remain available to a local display while being scaled for USB capture.

⚡

720p120 High-Frame-Rate Capture

Capture 1280×720 video at rates up to 120fps when host bandwidth and system conditions allow. High-frame-rate operation is useful for gaming, motion-intensive content, analysis, and specialized production workflows.

🎛️

Hardware Video Processing

The integrated processing pipeline supports cropping, up and down scaling, deinterlacing, aspect-ratio conversion, color-format conversion, frame-rate conversion, flipping, and mirroring before video reaches the capture application.

🎙️

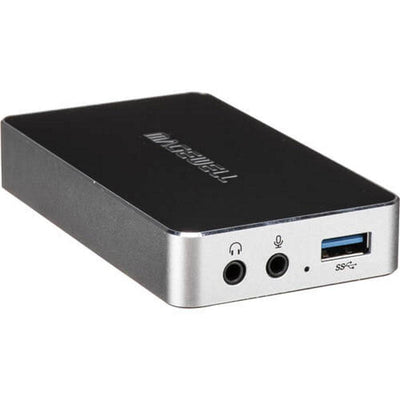

Microphone Input and Headphone Monitoring

A 3.5 mm microphone interface allows analog audio to be brought into the capture workflow. The headphone connection can monitor audio from the HDMI source or play audio from the host computer, adding useful audio flexibility for live production.

💻

Broad Software and OS Compatibility

The device supports Windows, Linux, macOS, and Chrome OS environments. Magewell lists OBS Studio, Zoom Rooms, Microsoft Teams, VLC, XSplit, QuickTime Player, and other compatible capture, conferencing, recording, and streaming applications.

Connectivity

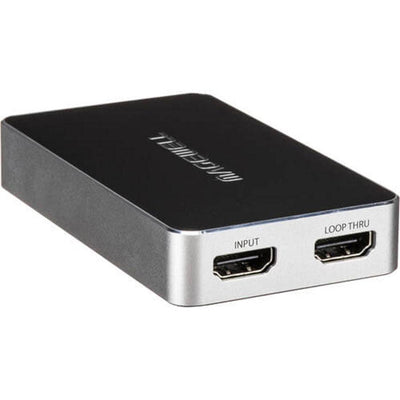

Magewell USB Capture HDMI Plus HDMI input loop-through USB and audio interfaces

HDMI Input

HDMI 1.4 · DVI-D Compatible

HDMI Loop-Through

Up to 4096×2160 60fps

Audio

HDMI Embedded · Microphone · Headphone

Host Interface

USB 3.0 · USB 2.0 Compatible

Compatible Software

🎬

OBS Studio XSplit and VLC

Magewell lists OBS Studio, XSplit, and VLC among compatible applications. The device can bring HDMI cameras, game consoles, computers, and other supported sources into software-based streaming, recording, and production workflows.

👥

Zoom Rooms and Microsoft Teams

Zoom Rooms and Microsoft Teams are included in Magewell's compatibility list. HDMI cameras and presentation sources can therefore be used in supported conferencing and collaboration environments through the USB capture interface.

⚙️

USB Capture Utility and MWCapture SDK

Magewell USB Capture Utility provides device configuration, capture-related settings, firmware maintenance, and troubleshooting information. The MWCapture SDK supports custom applications with signal-status, capture-configuration, and real-time audio/video functions.

Who It's For

Live Streamers

Bring HDMI cameras and other sources into software-based streaming workflows over USB.

Gaming Creators

Capture gameplay while keeping the HDMI source available to a local display through loop-through.

Live Production Teams

Add an external HDMI source to software production systems without installing a PCIe card.

Corporate Conferencing

Connect professional HDMI cameras and presentation sources to compatible meeting applications.

Education and Lecture Capture

Capture lectures, presentations, demonstrations, and classroom video for streaming or recording.

AV Integrators

Deploy a compact USB capture interface with hardware processing and HDMI loop-through.

Magewell Support

Magewell provides a three-year limited manufacturer warranty for USB Capture Plus hardware. Coremicro can help confirm HDMI formats, host USB bandwidth, software compatibility, audio configuration, loop-through requirements, and capture workflow compatibility before deployment.

Technical Specifications

Specification	Detail
Product	USB Capture HDMI Plus
Part Number	32040
SKU	320400000
Capture Channels	1 video channel
Primary Function	HDMI video and audio capture over USB with HDMI loop-through
HDMI Input	1 × HDMI input with embedded audio
HDMI Loop-Through	1 × HDMI output
HDMI Interfaces	HDMI 1.4 · DVI-D compatible
HDMI Receiver	297 MHz
Maximum 4:4:4 / 4:2:2 Input	4096×2160 30fps
Maximum 4:2:0 Input	4096×2160 60fps
Maximum Loop-Through	4096×2160 60fps 4:2:0
Input Color Formats	RGB / YUV 4:4:4 8 / 10 / 12-bit · YUY 4:2:2 12-bit · YUV 4:2:0 8 / 10 / 12-bit
Input EDID	Customizable
HDMI Embedded Audio Input	Up to 8 channels · 24-bit · 192 kHz
Microphone Input	3.5 mm analog audio interface
Headphone Output	3.5 mm output for HDMI-source or host-computer audio
Video Processing Bandwidth	Approximately 160M pixels per second
Capture Resolution Capability	Custom capture resolutions up to 2048×2160, subject to USB bandwidth and internal processing limits
Maximum Capture Frame Rate	Up to 120fps depending on resolution and host bandwidth
1920×1080 Capture	23.98 · 24 · 25 · 29.97 · 30 · 50 · 59.94 · 60fps
1280×720 Capture	23.98 · 24 · 25 · 29.97 · 30 · 50 · 59.94 · 60 · 100 · 119.88 · 120fps
PAL Capture Output	720×576p25
NTSC Capture Output	720×480p30
Capture Pixel Formats	YUYV · UYVY · RGB24 · RGB32
Video Processing	Cropping · Up/down scaling · Deinterlacing · Aspect-ratio conversion · Color-format conversion · Frame-rate conversion · Flip · Mirror
USB Capture Audio	Up to 2-channel audio
Host Interface	USB 3.0
USB Compatibility	USB 2.0 · USB 3.1 Gen 1
Compatible Operating Systems	Windows · Linux · macOS · Chrome OS
Windows APIs	DirectShow · Wave API · DirectSound · WASAPI
Linux APIs	V4L2 · ALSA
macOS APIs	AVCaptureSession · AudioUnit
Compatible Software	Zoom Rooms · Microsoft Teams · Skype for Business · GoToMeeting · GStreamer · VLC · OBS Studio · XSplit · QuickTime Player
Included Utility	Magewell USB Capture Utility
SDK	Magewell MWCapture SDK
Input Detection	Automatic input signal format detection
Continuous Operation	Designed for continuous 24×7 operation
Status Indicator	LED indicates input lock and device status
Dimensions	98.1 × 56.8 × 17 mm
Maximum Current	Approximately 900 mA at 5 V
Maximum Power Consumption	Approximately 4.5 W
Operating Temperature	0 to 45°C
Storage Temperature	−20 to 70°C
Relative Humidity	5% to 90% non-condensing
Manufacturer Warranty	3 years for USB Capture Plus hardware
Included Device	USB Capture HDMI Plus
Included USB Cable	1 × USB 3.0 cable · 63 cm

Frequently Asked Questions

What does the Magewell USB Capture HDMI Plus do?

The device captures one HDMI source into a computer through USB while simultaneously providing HDMI loop-through. It is designed for streaming, recording, conferencing, gaming, and professional software-based production.

Does USB Capture HDMI Plus capture 4K video?

Magewell positions this model as a 2K capture device rather than a native 4K capture device. It accepts and loops through HDMI signals up to 4096×2160 60fps 4:2:0 and can scale high-resolution inputs for supported USB capture formats such as 1080p60.

Does USB Capture HDMI Plus support HDMI loop-through?

Yes. A dedicated HDMI loop-through output allows the incoming signal to remain available to a monitor or other downstream equipment. The loop-through supports the same high-resolution input capability, including supported 4K formats.

Can USB Capture HDMI Plus capture at 120fps?

Yes, at supported lower resolutions. Magewell specifies 1280×720 capture at up to 119.88 or 120fps, while 1920×1080 capture is supported up to 60fps.

Does the device support microphone input and headphone monitoring?

Yes. A 3.5 mm microphone interface allows analog audio input, while the headphone output can reproduce audio from the HDMI source or the connected host computer.

Which applications work with USB Capture HDMI Plus?

Magewell lists OBS Studio, Zoom Rooms, Microsoft Teams, VLC, XSplit, QuickTime Player, and other compatible software. The device also supports standard capture APIs on Windows, Linux, and macOS.

What warranty does USB Capture HDMI Plus include?

Magewell provides a three-year limited warranty for USB Capture Plus hardware. Warranty coverage begins according to Magewell's published limited-warranty terms and proof-of-purchase requirements.
