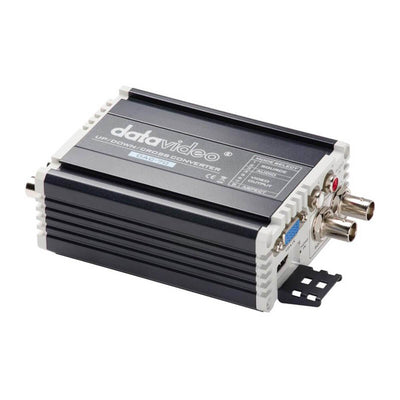

The Datavideo DAC-70 Up/Down/Cross Converter is designed to convert HDMI, VGA, SDI video signals with audio inputs to 3G/HD/SD SDI outputs. The DAC-70 is perfect for connecting a computer's VGA/HDMI outputs to SDI devices through a long-distance SDI connection. This Converter supports video resolutions as high as 1080p60 and as many as 8 integrated SDI or HDMI audio channels.

In addition, it offers 10-bit video processing and accepts HDMI, VGA, and SD/HD-3G-SDI video input signals. In addition, the DAC-70 features an analog L/R audio input pair. This video converter includes a mini-USB connector for firmware updates and a 12V / 1A power supply.

DAC-70 Features

3G-SDI technology with full 10-bit processing and low SDI jitter
DC or AC operation for convenient field or studio use
DIP switch setup
Micro USB 2.0 interface for firmware updates

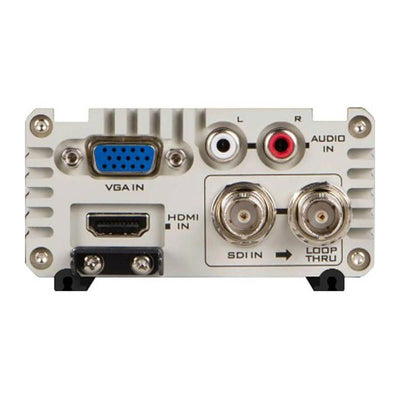

Video Inputs

HD / SD-SDI [BNC] with active SDI loop-through
HDMI
VGA [15PIN D-Sub Female]

Audio Inputs

HDMI / SDI embedded multi-channel audio
Unbalanced RCA Phono sockets [Stereo L&R Channels @ line level]

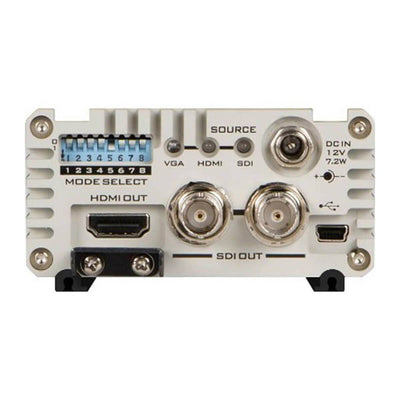

Video outputs

Two HD / SD-SDI [BNC] with embedded audio
HDMI with embedded audio
Simultaneous HDMI & SDI outputs regardless of settings

Control

Windows-only software utility for local configuration and control via Micro-USB 2.0 interface

Note: The DAC-70 supports HDCP copy protection, i.e. the DAC-70 outputs no signal when the user supplies protected DVD or BD video.
