4K60

Native Resolution

25x

Optical Zoom

IP65

Weather Rating

Most PTZ cameras make you choose between broadcast image quality and the ability to survive real-world conditions outdoors. Bolin Technology refuses that tradeoff with the Range. Built from the ground up for professional live production, it delivers native 4K at 60 frames per second — not upscaled, not interpolated — inside an IP67-rated body that handles rain, direct sun, and freezing temperatures without complaint.

This is the camera you reach for when a single PTZ needs to cover a stadium exterior, a house of worship rooftop, or a university campus installation — and still look broadcast-grade on screen. With 25x optical zoom, AI-powered auto tracking, and simultaneous SDI, HDMI, and NDI outputs, the Bolin Range fits the workflow you are already running.

Bolin Technology Range PTZ Camera — Range Without Limits

Bolin Range. Without Limits.

All-weather. All-venue. All-workflow.

Key Features

Native 4K60 NDI Output

Full 4K at 60fps over NDI. Plug directly into any NDI-ready switcher or router with no quality loss.

IP67 All-Weather Body

Dust-tight and water-immersion rated. Mount outdoors permanently — this body is built to stay there.

25x Optical Zoom

Pull in tight shots from distance without resolution loss. Built for large venues where wide and close happen in the same take.

AI Auto-Tracking

Built-in subject tracking handles talent movement automatically — fewer operators, cleaner coverage.

Triple Output: SDI, HDMI, IP

Feed your switcher, your monitor, and your network encoder simultaneously. No downstream splitters needed.

Stabilized PTZR Axis

Four-axis stabilized movement — Pan, Tilt, Zoom, Roll — delivers smooth, precise control even at maximum zoom extension.

Advanced Capabilities

Simultaneous Multi-Stream

Output video simultaneously through HDMI, SDI, and IP with independently configurable resolutions and support for multiple concurrent IP streams.

NDI Embedded Bridge

Enables secure NDI connections across different networks, supporting remote production and distributed workflows without additional hardware.

Ultra Low Latency

Near real-time video output for live production and monitoring workflows where frame delay is not an option.

Open API

Developers and integrators can build custom applications, automate control, and connect the Range into larger systems and automation platforms.

Wi-Fi Connectivity

Built-in Wi-Fi enables wireless camera control and video streaming, simplifying setup in temporary or hard-to-wire environments.

Color Matrix

Adjust color properties to match other cameras and maintain consistent color across multi-camera productions.

Balanced XLR Audio Input

Mic or line-level audio with optional phantom power — high-quality sound embedded directly with video, no external mixer needed.

Onboard Recording

Built-in MicroSD recording for local capture, backup, or simplified single-camera workflows — no external recorder required.

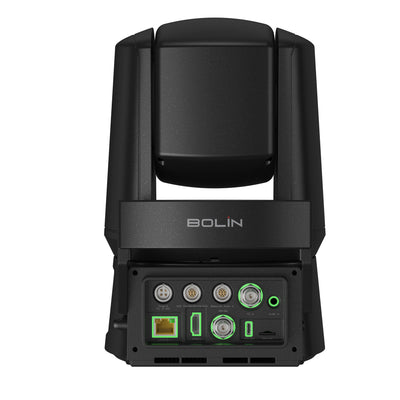

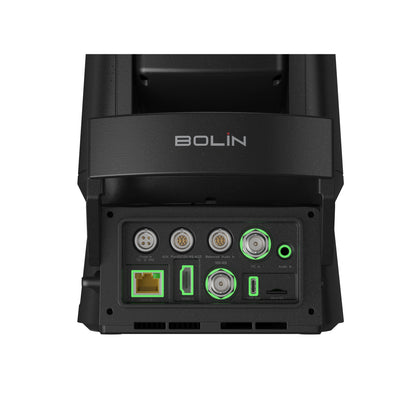

Connectors

12G-SDI
HDMI 2.0
USB-C (UVC)
IP Video Streaming
Time Code
AUX — 12V DC Output
AUX — RS422 Serial Control
Balanced Mini XLR Audio Input with Phantom Power
3.5mm Audio Input
1G LAN Port with PoE++ Power Input
Micro SD Local Recording
Illuminated I/O

High-Precision Brushless Motors

Engineered for broadcast-grade movement

Brushless motors deliver smooth, precise camera movement with powerful performance, fast acceleration, and responsive speed — while maintaining consistent reliability over time. No maintenance cycles, no performance drift. The Bolin Range moves exactly the way you expect it to, every time.

Bolin Range PTZ Camera brushless motor detail

AV Over IP — Built for Modern Workflows

Range PTZ Camera

↓

1G LAN / NDI / RTMP / SRT

↓

Switcher / Mixer

Live Stream

Recording

Production PC

One cable. Every destination.

The Bolin Techology Range's 1G LAN port handles PoE++ power and IP video on a single run. No separate power supply, no extra cable tray. NDI, RTMP, and SRT streaming protocols mean your signal gets to wherever it needs to go — switcher, encoder, cloud, or recording — without additional hardware in the chain.

Whether you are integrating into an existing IP infrastructure or building a new production from scratch, the Range connects cleanly and stays there.

Works with industry-standard AV over IP ecosystems

Why It Matters on a Real Production

Anyone who has worked a live outdoor event knows the moment weather rolls in and decisions get made fast. You do not have time to move cameras or rig rain covers mid-show. The Range is designed to stay in place. IP67 means it sheds water — not resists it. Pair that with AI tracking and you can run leaner crews on events that used to require three operators just for camera coverage.

The 25x zoom is where it earns its keep in the field. At full telephoto, the image holds steady and clean — something that falls apart quickly on cheaper PTZ units. Whether you are covering a speaker on a 200-foot stage or a performer in an outdoor amphitheater, the Range reaches and holds the frame. The PTZR stabilization keeps movements broadcast-smooth, not jerky or noisy.

And because it outputs SDI, HDMI, and NDI all at the same time, it fits into whatever signal chain you are already running — one camera, every output your production needs, no converters, no workarounds.

Use Cases

Auditoriums Arenas Cold Climate Environments Corporate Conferences Concerts Education High Heat Environments Houses of Worship Mobile Units Performing Arts Centers Rentals Remote Production Sports Stadiums Studios Touring

Ready to spec the Range into your next project?

Our team knows broadcast workflows. We can help you configure the right kit.

Contact Us →

Looking for more from this brand? Browse the full Bolin Technology lineup — PTZ cameras, encoders, decoders, and controllers built for professional production. Or explore our complete PTZ Camera collection for mounts, controllers, and cables that pair directly with the Range.
