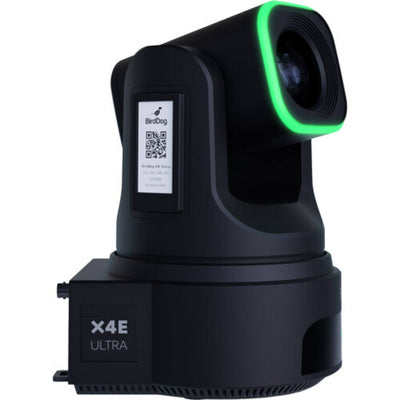

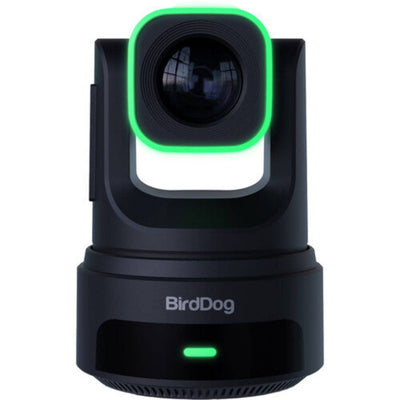

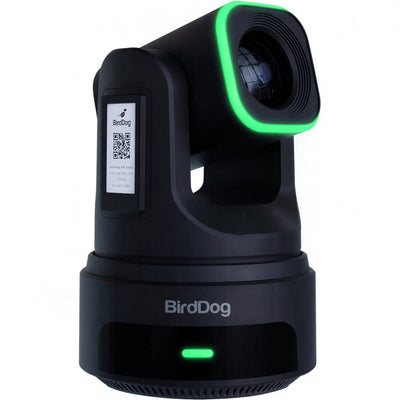

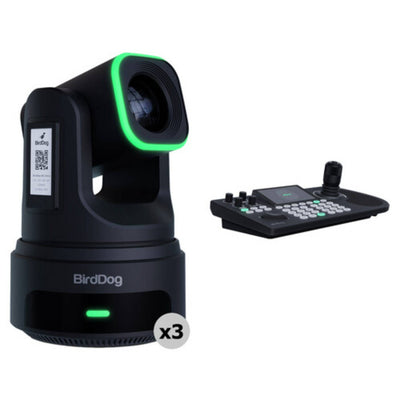

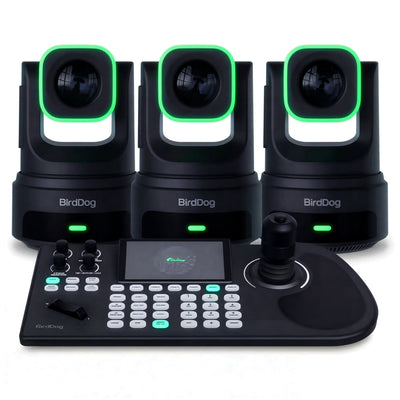

The BirdDog 3x X4E Ultra PTZ Cameras and KBD Controller Combo (Black) is a wired-first 4K60 PTZ camera built for permanent installs where consistency matters more than novelty. It pairs a Sony 1/1.8-inch UHD sensor with a 20x optical zoom, plus both IP and baseband outputs, so it fits cleanly into modern NDI workflows without abandoning traditional SDI or HDMI paths.

In practice, this is the camera you mount, align, store presets, and stop thinking about. Presets stay repeatable. Tally is visible from across the room. Power and network come in once, and the camera behaves like infrastructure instead of a device that needs babysitting.

Highlights

True 4K60 imaging: UHD up to 2160p60 for clean wide shots and flexible crops
20x optical zoom: real reach for stages, classrooms, and long rooms without digital artifacts
NDI|HX3 and IP streaming: supports NDI HX3 plus SRT, RTSP, and RTMP (workflow dependent)
Professional outputs onboard: 3G-SDI, HDMI, USB-C UVC, and network video
Install-friendly visibility: HALO tally and e-ink display for quick identification and status

Quick Specs & Practical Uses

Image sensor: Sony 1/1.8-inch UHD CMOS, approx. 8.42 MP
Lens: 20x optical zoom, approx. f/1.58 (wide) to f/3.95 (tele)
Video formats: up to 2160p60; also supports 1080p and 720p modes

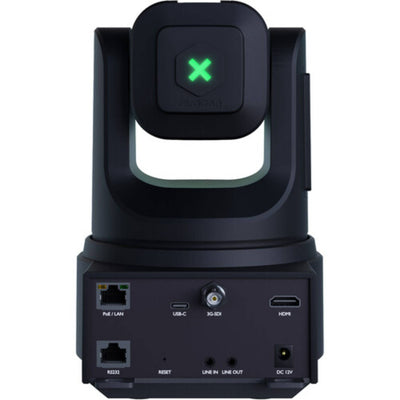

Video outputs: HDMI, USB, and RJ45 up to 4K; 3G-SDI up to 1080p60
IP protocols: NDI|HX2, NDI|HX3, SRT, RTSP, RTMP
Pan / tilt & presets: fast movement with up to 255 presets
Power: PoE+ (IEEE 802.3at) or 12 VDC
Use cases: worship, education, corporate rooms, live events, studios, fixed installs

Real-World Tracking Notes

AI tracking on the X4E Ultra is designed to behave on-air. It prioritizes stable framing, avoids sudden jumps, and recovers smoothly when movement is normal rather than chaotic. Presenter and zone-based tracking modes help the camera respect stage boundaries instead of chasing everything that moves.

As always, tracking works best when the fundamentals are right: rigid mounting, clear sightlines, and consistent lighting.

Image Quality Notes

The combination of a 1/1.8-inch sensor and real optical zoom is what separates this camera from entry-level PTZs. Wide shots hold detail, and zoomed shots remain usable without the image falling apart.

For live production, clean exposure and a basic key light go a long way. Give the sensor decent light and the camera rewards you with lower noise, steadier autofocus, and more predictable color.

Connectivity & Workflow

X4E Ultra is comfortable in mixed environments. NDI|HX3 keeps network load reasonable in multi-camera installs, while SDI and HDMI provide familiar baseband paths for switchers and converters. USB-C UVC mode allows the camera to behave like a webcam when needed.

PoE+ support simplifies permanent installs by reducing cable runs and power adapters. For remote contribution or direct-to-platform workflows, SRT, RTMP, and RTSP are available depending on configuration.

Control Apps

Configuration and control are handled over the network using BirdDog’s browser-based interface, along with standard protocols such as VISCA, VISCA-IP, and ONVIF. This allows the camera to integrate into modern IP control systems as well as legacy PTZ environments without special adapters.

Why It Helps

In fixed installs, PTZ problems are rarely about resolution. They are about mounts that flex, presets that drift, unclear tally, and network paths that become unstable under load. X4E Ultra is designed to remove those variables.

Clear tally, consistent control, flexible outputs, and predictable IP behavior mean operators spend less time troubleshooting and more time running the show.

What’s In The Box

Package contents vary by configuration. Refer to the What’s Included section for exact items.
