The Atomos NEON 24" 4K 10-bit HDR Cinema Monitor/Recorder from Atomos is designed to create a consistent viewing and recording pathway for productions with Atomos innovation and technology. Atomos combines RAW recording with cinema display technology for monitoring, on-screen production checking and review of creative intent, story flow and matching continuity between scenes. Atomos adopted the industry-standard formats like ProRes RAW from major camera makers enabling the performance of ProRes and the flexibility of RAW into cinema productions and built for computer finishing. The Neon performs real-time Dolby Vision processing to enable down-stream viewing on any Dolby Vision capable TV or monitor. The upshot is an on-set computer replacement merged with an ecosystem of field monitors that saves the creator time by allowing them to make more decisions in the moment of recording, playback, monitoring, and editing.

The Neon is a series of precision on-set and in-studio 4K HDR monitor-recorder production workhorses where reliable and trustworthy monitoring is essential. The Neon Monitor/Recorder comes in four different sizes (17”, 24”, 31” and 55”) that can be synced together to provide an ecosystem of field monitors where the accuracy of image representation and consistency of image is critical between crew members.

The Neon's best-in-class 512 zoned dynamic backlight displays provide a calibrated 4KDCI 180-degree perfect viewing, 10-bit DCI-P3 100% color coverage, and 1,000,000:1 HDR-ready contrast for cinematographers to maintain exposure and creative look. Directors can make more creative on-set decisions, viewing perfect images in TV and Cinema standards at all times. Camera assistants and focus pullers can trust the ultra-sharpness of an actor's eyes. Editors and color graders can lock down the director’s creative intent from shot to shot, frame by frame and review it across varying displays from SDR to HDR accurately in real-time. With the built-in 4Kp60/HDp240 Apple ProRes RAW recorder capturing each take, Neon enables quick review and real-time playout with Dolby Vision to reality test content on domestic TVs. With Neon, Atomos has reimagined the role of the reference monitor to meet the HDR challenges of modern TV and film production.

Four sizes for flexibility in any production
The Neon comes in 17”, 24”, 31” and 55” screen sizes, and complements other Atomos products such as the Shinobi SDI, Ninja V, Shogun 7 and Sumo 19 to provide a flexible ecosystem of field reference monitors. Neon allows you the flexibility of utilizing your Atomos on low budget productions with HDMI 10-bit uncompressed video cameras, right up to 12G-SDI 12-Bit, 4Kp60 RAW from the best cinema cameras in the world.

Atomos App or Remote Control
Neon deliberately does away with touchscreen operation and is Bluetooth controlled by the Atomos iOS App or physical remote control. Neon has the simple-to-use AtomOS built into it so that you can use the App to access real-time production tools including focus peaking, exposure, calibration, zoom, waveform monitor, RGB monitor, vectorscope and LUT selection.

Neon shortens the gap between capture and final edit with real-time recording and playback of your captured shots at up to 4Kp60 in formats including ProRes, ProRes RAW, Cinema DNG, Avid DNx. When you’ve got the take you like, tag it on-set with the App for easy identification during editing. The App unlocks the ability to insert project-specific meta-data frame-by-frame, allowing project management of a complex production to be simplified and automated so that the creator can focus on their artistic storytelling enhancements.

App/Control Features:

Up to 4KDCI Resolution
iOS or Remote UI control
Up to 240fps Frame Rate
.Cube LUT Support
AtomOS 10 Software
SSD Recording Media

Record 12-Bit RAW, view & Dolby Vision HDR
The challenge with HDR production is maintaining the creative intent of the production at the time of shooting vs the finished product that is viewed on devices and TVs. Atomos and Dolby have teamed up to give you Dolby Vision live HDMI out, in real-time, from any SDI or HDMI HDR camera. All courtesy of AtomOS. Simply connect your Dolby Vision capable TV or monitor to your Neon and magically, automatically, the AtomOS analyses the image, queries the TV, and applies the right color and brightness profiles for the best possible HDR image on the display or TV. This ensures HDR footage always looks – as it was intended by the creator. This is a valuable on-set reference check for the creative director and client.

This function is also available in playback and playout from RAW and Log recorded ProRes RAW, ProRes and DNx rushes for instant time-saving, on-set and in-studio review. Utilize playback features like slow-motion functions, insert-edits, and rearranging rushes for review and scheduling.

Sync all your Neons together
If you have more than one Neon in your production, you can perfectly sync them asynchronously together using the Atomos iOS App. Simply pair the Neons through the App and select all the monitors you wish to sync. You can also sync the Neons to any Atomos Ninja V using an AtomX Sync Module attached. This means that recording control has never been easier for any production with a multicamera setup. Meta-data is captured for the entire production in every file recorded, avoiding the need for a sidecar file. At the end of filming, take each Neon’s SSD with the captured footage and meta-data, and import into your editing suite ready to go.

Sync Features:

Bluetooth Wireless Connectivity
iOS app User Interface
1000+ Neons Sync

Precision HDR field monitor
Atomos brings dynamic zone backlight technology to the entire range of Neons powered by our proprietary Dynamic AtomHDR innovations. This yields a contrast ratio from one to a million gradations on discreet parts of the image on Neon’s daylight viewable anti-reflection display. With the Neon series, blacks and colors are rich and deep. Images appear to ‘pop’ with added dimensionality and detail. The precision Atomos display uses a unique combination of advanced LED and LCD technologies which together offer deeper, better blacks than rival OLED screens, but with the much higher brightness and vivid color performance of top-end LCDs. Objects appear more lifelike than ever, with complex textures and gradations beautifully revealed. In short, the Neons offer the most detailed window into your image, truly changing the way you create visually.

Backlight technology Features:

Up to 512 Zones Backlights Neon 17,24,31 & 55"
AtomoHDR HDR Technology
15 Stops Dynamic Range
1000nits Display Brightness

Capture 4K or 8K Video Resolution
The capture technology moves fast, so your investment shouldn’t be locked into older formats and functionality. Neon features a Master Control Unit, a replaceable brain that allows for upgradability as newer functionality and technology becomes mainstream. The Master Control Unit comes in two sizes, one for 4K capture and another for 8K.

Supported Resolution Features:

4K or 8K Master Control Unit
HDMI, SDI Video Connectivity
Atomos Operating System
Line in/Min in Audio Connectivity

Expand Neon with AtomX Expansion Modules
The Master Control Unit is also compatible with the AtomX expansion modules that provide SDI and NDI connectivity on top of the standard HDMI connectivity that comes with NEON. This provides total flexibility when it comes to the production environment you are operating in.

ProRes RAW
Capturing ProRes RAW video with the Neon unlocks the true potential of your RAW cinema camera and provides complete control of your video image at the highest quality possible. ProRes RAW combines the flexibility of RAW video with the incredible performance of ProRes. Import, edit and grade pristine video with RAW data straight from your camera sensor without slowing down your edit. These RAW files provide maximum flexibility for adjusting the look of your video, while extending brightness & shadow detail. The ideal combination for HDR workflows.

Neon preserves your content’s maximum dynamic range, color accuracy and detail. Colors can be easily matched and the extra information means footage can be quickly manipulated in post-production, which is especially useful for grading and VFX shots. In addition to ProRes RAW, Neon supports ProRes, CinemaDNG, Avid DNx via HDMI and SDI. Capture from any HDMI or SDI source including cameras from Nikon, Canon, Panasonic, Sony, RED and ARRI.

Built for the toughest production

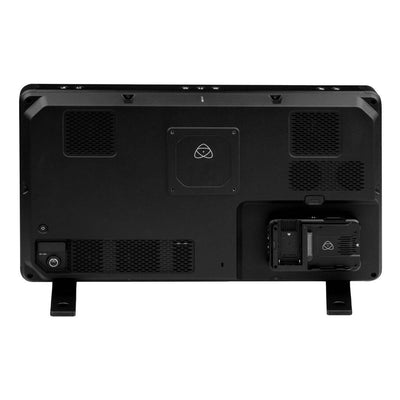

The Neon can withstand the most extreme production conditions with its durable aluminium chassis and polycarbonate backplate affording protection from rough handling. Neon 17, 24 and 31 additionally come in their own road case providing peace of mind that the next time you need it, it’s ready for action.

Mount anywhere
Whatever way you like to view your images, the Neon comes with flexible mounting options for any production including Arri standard edge mounting points, VESA mount and feet for floor or desk viewing. The Neon 17 and Neon 24 are also designed to be rack ready and will fit seamlessly into any rack environment.

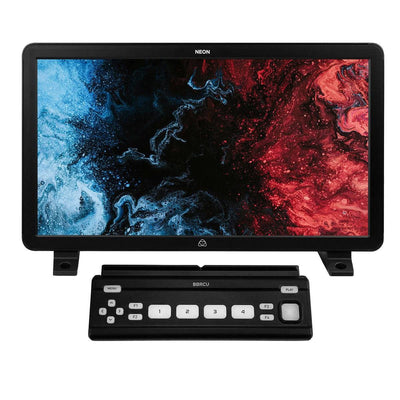

The Atomos Button Bar Remote Control Unit provides an Arri anti-rotational mount point with 3/8” and 1/4” 20 options and a NATO rail runs the length of the unit allowing you to choose your desired location directly on the NEON or DIT cart to best suit your workflow.

The non-proprietary connection allows it to be easily extended or for a cable to be replaced using industry-standard LANC cables or extensions. The hardwired connection between the 2.5mm mini-jack remote port of NEON MCU and the Button Bar provides control, as well as power without the need for batteries or alternative power sources.

Full control at your fingertips
The large backlit buttons provide directors and camera operators quick access to scopes, monitor assist tools, frame guides, LUT selection. With dedicated buttons for record and playback, you can jump into the last take to review the shot, step-through frame by frame, or loop the entire clip.

On a DIT cart or back in the edit suite, utilizing the Mac OS APP users can connect to NEON via Bluetooth® to define the color pipeline and project settings. Whilst the Button Bar provides directors and camera operators close control with quick access to scopes, monitor assist tools, frame guides, and LUT previews.

Button Bar Controller Features:

Tactile control provides fast access to NEON’s toolset, record command, and playback clip review.
Rugged construction to meet the demands of production.
Non-proprietary single hardwired connection for control and power.
Flexible mount options with anti-rotation 3/8” or 1/4” 20 thread mount.
Full-length Nato rail.
Backlit buttons with adjustable levels and available tools displayed on the NEON display

Atomos NEON 24" 4K 10-Bit HDR Cinema Monitor/Recorder
