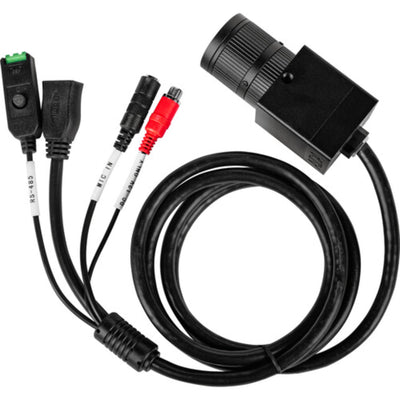

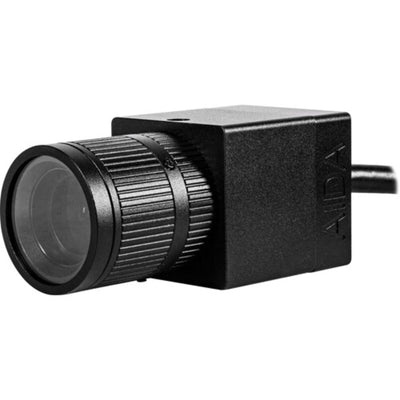

AIDA Imaging HD-100A-VF HD HDMI POV Camera with 2.8-12mm Lens is built for installations where the camera needs to stay compact, output a clean HDMI signal, and still give you more framing flexibility than a fixed-lens POV model. With 10-bit HDMI output, a 2.8-12mm lens, and RS-485/VISCA control, it gives you a practical way to handle fixed-position AV and production coverage without adding unnecessary complexity.

Highlights

1/3"-type CMOS sensor with support up to 1080p60
2.8-12mm lens for more flexible framing than a fixed-lens POV camera
10-bit HDMI output with embedded audio
RS-485/VISCA camera control for structured integration
Compact box-style design with 2 x 1/4"-20 female mounts

Quick Specs & Uses

Sensor: 1/3"-type CMOS
Resolution support: 1080p, 1080i, 720p
Frame rates: up to 1080p60
Video output: 10-bit via HDMI
Digital I/O: 1 x HDMI 1.3a video / audio output
Embedded audio: HDMI
Lens focal length: 2.8 to 12mm
Minimum illumination: 0.2 lux
Control protocols: RS-485 / VISCA
Power: 9.0 to 15.0 VDC, 6 W

Why It Helps

Many compact cameras are either overly simple fixed-lens units or much more complex than the job requires. This model sits in a useful middle ground. It gives you a clean HDMI signal path, a variable lens range, and structured control support in one compact body. That makes it easier to deploy in fixed positions where the shot still needs to be tuned properly after installation.

System Characteristics

2.8-12mm lens range gives the camera more framing flexibility during setup
10-bit HDMI output helps keep the signal path aligned with more serious AV workflows
RS-485/VISCA control improves compatibility with managed systems
Compact body with dual mounting points makes specialty installation easier
Focused design avoids unnecessary extras like wireless, internal recording, or app dependency

What’s In The Box

Please refer to the Specifications tab for the exact included items.
